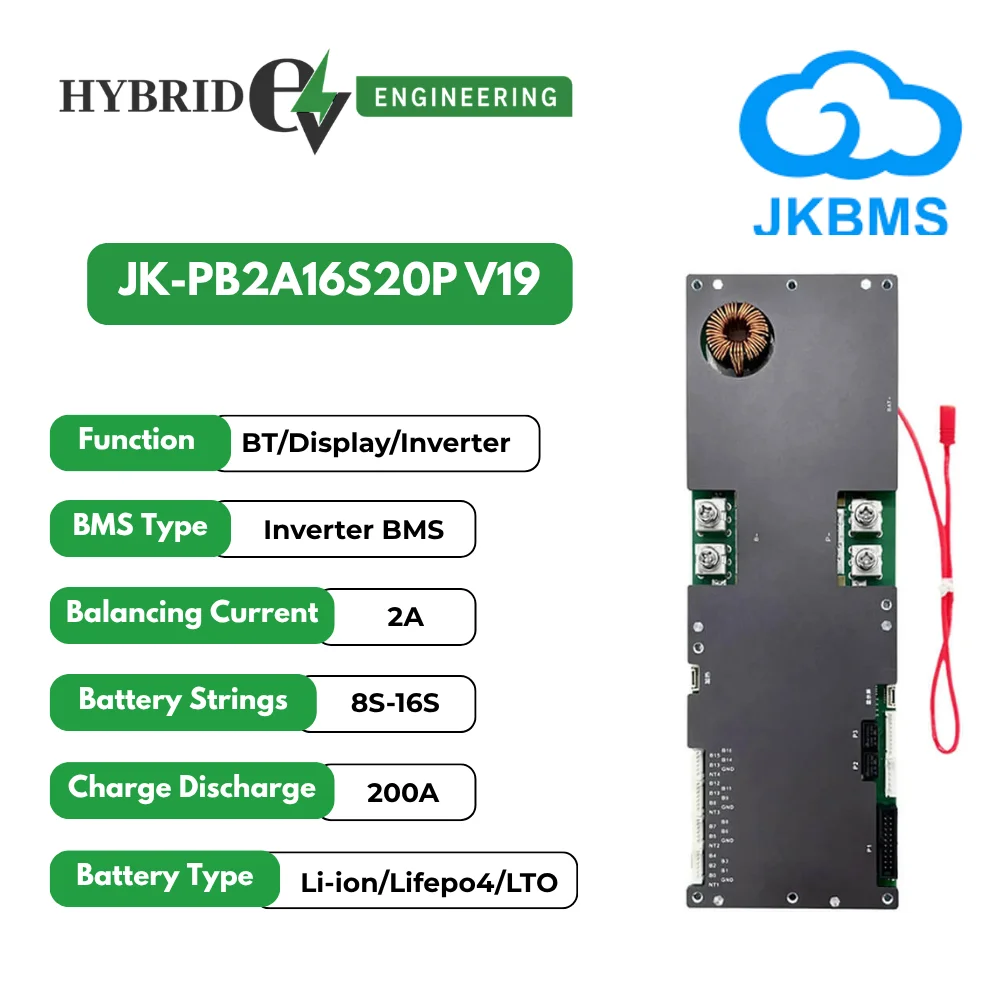

JK Inverter BMS V19 8S to 16S 2A 200A Premium Smart BMS for Solar

JK Inverter BMS V19 8S to 16S 2A 200A – Premium Smart BMS for Solar Energy Storage

The JK Inverter BMS V19 2A 200A represents the premium tier of battery management systems for serious 48V LiFePO4 solar storage installations. Combining professional-grade 2A active balancing with robust 200A continuous current handling, this smart BMS is engineered for demanding applications where performance, reliability, and compatibility matter most. With the latest V19 firmware and a comprehensive inverter protocol library, it integrates seamlessly with 8kW to 10kW hybrid inverters from all major manufacturers.

Advanced Features and Technical Specifications

The JK Inverter BMS V19 is built to professional standards for solar energy storage systems that demand both high performance and absolute reliability.

Core Specifications

• Cell Configuration: 8S to 16S (24V to 48V LiFePO4 battery systems)
• Active Balancing Current: 2A continuous (3x faster than standard 0.6A units)
• Continuous Current Rating: 200A
• Firmware Version: V19 with complete inverter protocol library
• Communication Interfaces: Bluetooth 5.0, RS485, CAN, UART
• Supported Inverter Brands: Deye, Growatt, Voltronic, Sol-Ark, MPP Solar, and more
• Compatibility Mode: Pylontech emulation for universal inverter support
• Temperature Monitoring: Dual NTC sensor inputs
• Alarm Output: Dry-contact relay for external monitoring systems
• Hardware: Heavy-duty MOSFETs with large aluminum heatsink

2A Active Balancing – Professional Performance for Large Battery Banks

The 2A active balancing capability sets this BMS apart from entry-level units. For large LiFePO4 cells in the 200Ah to 280Ah range, this high-current balancer can equalize an imbalanced pack within hours instead of days or weeks. This is particularly valuable in several scenarios:

• New Pack Top-Balancing: Quickly bring all cells to perfect voltage equilibrium before first use
• Pack Recovery: Restore balance to cells that have drifted over months of operation
• Maximum Capacity Utilization: Ensure full usable capacity from day one by eliminating cell voltage spread
• Long-Term Health: Maintain optimal cell balance for extended battery lifespan

At 2A continuous balancing current, this BMS can transfer 48Wh per hour between cells – enough to correct significant imbalances in large capacity batteries efficiently.

200A Continuous Current for High-Power Solar Inverters

The 200A continuous current rating provides the headroom needed for modern 8kW to 10kW hybrid inverters. With this capacity, the BMS can handle:

• Peak discharge currents during high-load events
• High charge currents from solar arrays during optimal production hours
• Simultaneous charging and discharging in grid-tied systems
• Surge currents from inductive loads without nuisance trips

The heavy-duty MOSFETs and large heatsink ensure reliable operation even under sustained high-current conditions, maintaining safe operating temperatures without thermal derating.

V19 Firmware with Complete Inverter Protocol Library

The V19 firmware represents the latest evolution in JK BMS technology, bringing enhanced features and broader inverter compatibility:

Supported Inverter Protocols

• Deye/Sunsynk: Full CAN communication for hybrid inverters (SUN-xK-SG series)
• Growatt: Native protocol support for SPF, SPH, and MOD series
• Voltronic/Axpert: Complete compatibility with Axpert and InfiniSolar ranges
• Sol-Ark: Direct integration with Sol-Ark hybrid systems
• MPP Solar: Full support for PIP and LV series inverters
• Pylontech Emulation: Universal compatibility mode for any Pylontech-compatible inverter
• Goodwe, SMA, Victron: Additional protocols via firmware configuration

V19 Firmware Enhancements

• Improved balancing algorithms for faster convergence
• Enhanced CAN bus stability and error handling
• More accurate state-of-charge (SOC) calculations
• Expanded configuration options via Bluetooth app
• Better low-temperature charge protection

Multi-Interface Communication System

The JK Inverter BMS V19 provides multiple communication pathways for maximum flexibility in system integration:

Bluetooth 5.0

Monitor and configure your BMS wirelessly using the JK BMS smartphone app. View real-time cell voltages, temperatures, currents, SOC, and alarm status. Adjust protection parameters, calibrate shunts, and update firmware without physical connections.

RS485 Modbus

Industry-standard RS485 interface enables integration with SCADA systems, data loggers, and building management systems. Perfect for commercial installations requiring centralized monitoring.

CAN Bus

Direct CAN communication with compatible inverters enables full two-way communication for charge/discharge control, SOC reporting, and alarm propagation. The inverter can respond intelligently to battery conditions.

UART Serial

General-purpose serial interface for custom integrations, data logging, or connection to third-party monitoring systems.

Comprehensive Protection Features

The JK Inverter BMS V19 monitors every critical parameter and provides multi-layered protection:

• Overvoltage Protection: Per-cell and pack-level voltage monitoring with configurable thresholds
• Undervoltage Protection: Prevents deep discharge damage with early warning stages
• Overcurrent Protection: Discharge and charge current limits with configurable delays
• Short Circuit Protection: Instantaneous cutoff for short-circuit conditions
• Temperature Protection: High and low temperature cutoffs for charge and discharge
• Cell Imbalance Protection: Configurable differential voltage limits
• MOS Overtemperature: Protects power MOSFETs from thermal damage
• Dry Contact Alarm: External relay output for alarm propagation to monitoring systems

Recommended Applications and System Sizing

Residential Solar Energy Storage

Perfect for 48V LiFePO4 home solar installations with 8kW to 10kW hybrid inverters. Common configurations include:

• 16S 280Ah packs (48V 14.3kWh nominal)
• 16S 200Ah packs (48V 10.2kWh nominal)
• Dual parallel packs for 20kWh+ systems

Off-Grid Power Systems

Ideal for larger off-grid homes, remote cabins, or telecommunications sites requiring reliable battery management and high continuous current capability.

Small Commercial Solar Installations

Suitable for small businesses, retail stores, or office buildings implementing battery backup for load shifting or backup power.

High-Reliability UPS Systems

The robust construction and comprehensive protection make this BMS suitable for critical power applications where reliability is paramount.

Installation and Configuration

The JK Inverter BMS V19 is designed for straightforward installation with clear documentation:

• Balance lead harness connects to individual cell terminals (pre-wired)
• Main power terminals accept high-current battery cables (200A rated)
• Dual NTC sensors mount to battery cells and BMS heatsink
• Communication cables connect to inverter via appropriate interface
• Bluetooth pairing enables immediate monitoring via smartphone app

Detailed inverter wiring diagrams are included for all major brands, simplifying integration even for complex systems.

Package Contents

• 1 x JK Inverter BMS V19 Main Unit (8S-16S 2A 200A)
• 2 x NTC Temperature Sensors with cables
• 1 x Balance Lead Harness (pre-terminated)
• 1 x Communication Cable (RJ45 connector)
• 1 x User Manual with inverter wiring diagrams
• Mounting hardware and accessories

Why Choose the 2A 200A Version?

While JK offers several BMS models, the 2A 200A version is the optimal choice for serious installations:

• Faster Balancing: 2A balancing is 3x faster than 0.6A standard units – critical for large cells
• Higher Current Capacity: 200A handles larger inverters without derating
• Better Thermal Management: Larger heatsink maintains cooler operation under load
• Professional Features: V19 firmware with complete protocol library
• Future-Proof: Headroom for system expansion or higher loads

Technical Support and Installation Assistance

Hybrid EV Engineering provides comprehensive technical support for all JK BMS installations:

• Pre-sale compatibility verification with your specific inverter and batteries
• Installation guidance and wiring support
• Configuration assistance for optimal performance
• Troubleshooting support throughout warranty period
• Firmware update assistance when new versions are released

Availability and Warranty in Pakistan

This premium JK Inverter BMS V19 is available throughout Pakistan with fast shipping from our facility in Rawalpindi. We maintain stock of all major JK BMS models and accessories to ensure quick delivery for your solar projects.

Warranty Coverage

All JK BMS units are backed by a comprehensive 6-month warranty against manufacturing defects, covering:

• Component failures under normal operating conditions
• Manufacturing defects in materials or workmanship
• Firmware issues affecting operation

Warranty does not cover damage from improper installation, overvoltage events, or operation outside specified parameters.

Bulk Orders and Custom Solutions

For installers, integrators, or customers building multiple systems, we offer:

• Volume pricing for bulk orders
• Custom configuration and pre-programming services
• Technical training for installation teams
• Dedicated support for commercial projects

Order Your JK Inverter BMS V19 Today

Upgrade your solar battery system with the professional-grade JK Inverter BMS V19 2A 200A. Whether you are building a new 48V LiFePO4 system or upgrading an existing installation, this BMS provides the performance, reliability, and compatibility you need for a world-class energy storage solution.

For compatibility questions, custom configurations, or technical specifications for your specific application, contact Hybrid EV Engineering before placing your order. Our team is ready to help you select the perfect BMS for your solar energy storage project.
