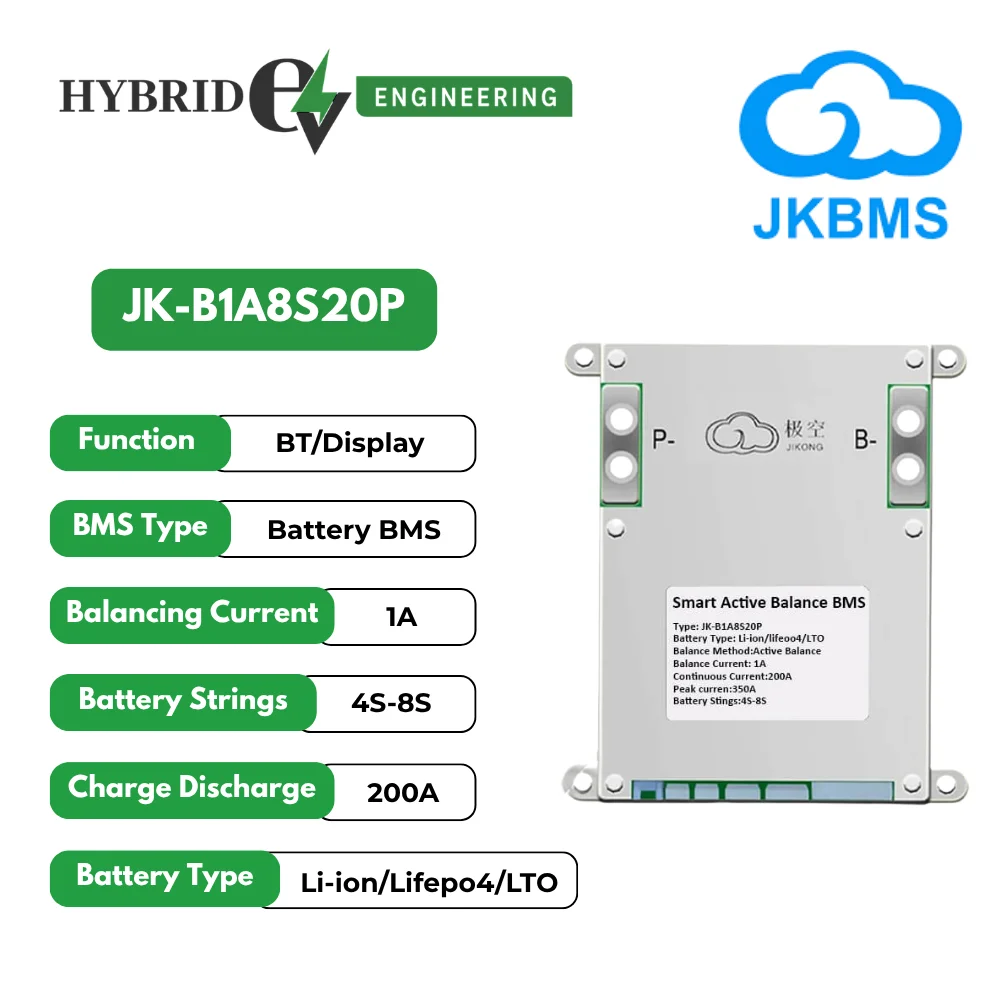

JK BMS 4S to 8S 1A Active Balancer 200A: High-Current Smart Battery Management
The JK BMS 4S-8S 1A 200A is engineered for demanding high-current lithium battery applications where reliability and performance are critical. With a robust 200A continuous discharge rating, this smart BMS can effortlessly handle large inverters in the 3kW-5kW range on 24V systems, EV conversions, and challenging off-grid power installations. The integrated 1A active balancer ensures your cells remain perfectly equalized even under heavy cycling conditions, extending battery life and maximizing performance.
Featuring multi-protocol communication interfaces including Bluetooth 5.0, RS485, CAN, and UART, this BMS seamlessly integrates with popular smart inverters from brands like Deye, Growatt, and Voltronic. Whether you’re building a home backup system, converting a golf cart, or designing an industrial battery solution, this BMS delivers the power handling and intelligence you need.
Advanced Features and Specifications
Core Specifications
- Cell Configuration: 4S to 8S configurable for flexible battery designs
- Active Balancing Current: 1A continuous for rapid cell equalization
- Continuous Charge/Discharge: 200A (with higher peak capability)
- Communication Protocols: Bluetooth 5.0, RS485, CAN, UART
- Supported Chemistries: Li-ion, LiFePO4, LTO
- Temperature Monitoring: 2 x NTC temperature sensors included
- Construction: Heavy-duty MOSFET array with aluminum heatsink
Comprehensive Protection Features
- Overcharge protection prevents cell damage from excessive voltage
- Overdischarge protection safeguards against deep discharge
- Overcurrent protection for charge and discharge cycles
- Short circuit protection with instant cutoff
- Over-temperature protection with dual NTC sensors
- Cell-level voltage monitoring and balancing
Smart App Control
Full parameter access and real-time monitoring through the JK BMS mobile app available for both Android and iOS devices. Adjust voltage thresholds, current limits, temperature cutoffs, and view detailed battery statistics from your smartphone.
Why the 200A Rating Makes a Difference
For 24V LiFePO4 battery banks paired with inverters in the 3kW to 5kW power range, current draw under load can easily spike well above 100A during normal operation. When you factor in surge currents from compressors, motors, power tools, and high-wattage appliances, the demands on your BMS become even greater.
A 200A-rated BMS provides essential headroom for these surge currents, preventing nuisance trips, avoiding BMS overheating, and ensuring reliable operation even during peak demand periods. This headroom translates to longer BMS lifespan, better thermal management, and peace of mind knowing your system can handle whatever you throw at it.
The heavy-duty MOSFET array combined with the integrated aluminum heatsink ensures the BMS can maintain its 200A continuous rating without thermal throttling, even in warm environments or extended high-load scenarios.
Practical Applications and Use Cases
Home Energy Storage Systems
Perfect for 24V LiFePO4 home backup systems paired with 3kW-5kW hybrid or off-grid inverters. Handle multiple high-power appliances simultaneously without worrying about BMS limitations.
Electric Vehicle Conversions
Ideal for light EV conversions including golf carts, neighborhood electric vehicles, small utility vehicles, and electric boats. The high current rating supports motor controllers and provides plenty of power for acceleration.
Off-Grid Solar Installations
Designed for off-grid solar systems with high peak loads where reliability is non-negotiable. The active balancing ensures maximum energy storage capacity and the communication protocols enable smart inverter integration.
Industrial Battery Backup
Suitable for industrial battery backup applications, telecom installations, and commercial power systems requiring robust battery management with high current capability.
Active Balancing Technology Explained
Unlike passive balancing systems that waste energy as heat, active balancing redistributes charge between cells, improving efficiency and reducing heat generation. The 1A balancing current in this BMS is significantly higher than typical passive systems, enabling faster equalization of cell voltages.
This is particularly important in large capacity battery banks where cell imbalances can develop over time. Active balancing at 1A can correct these imbalances much faster than passive systems, ensuring all cells reach full capacity and extending overall battery pack lifespan.
Communication and Integration Options
Bluetooth 5.0 Connectivity
Wireless monitoring and configuration via smartphone app with improved range and stability compared to older Bluetooth versions.
RS485 Protocol
Industry-standard wired communication for reliable long-distance connections to inverters and monitoring systems.
CAN Bus Support
Modern CAN protocol support enables integration with advanced inverters and allows multiple devices to communicate on the same bus.
UART Interface
Universal asynchronous receiver-transmitter interface for custom integrations and development projects.
Package Contents
- 1 x JK BMS Main Unit (4S-8S 1A 200A configuration)
- 2 x NTC Temperature Sensors with cables
- 1 x Balance Lead Harness (pre-wired for easy connection)
- 1 x User Guide and Installation Manual
Installation and Setup Guidance
The JK BMS is designed for straightforward installation with clearly labeled connections and comprehensive documentation. The balance lead harness simplifies cell connections, while the multiple communication options provide flexibility in system design.
Position the BMS in a location with adequate ventilation and ensure the aluminum heatsink has airflow for optimal thermal performance. Mount the NTC temperature sensors on opposite ends of your battery pack for accurate temperature monitoring across the entire bank.
Availability and Warranty in Pakistan
This high-performance JK BMS is available throughout Pakistan with fast shipping from Hybrid EV Engineering, Rawalpindi. We provide comprehensive technical support, installation guidance, and system design assistance to ensure your battery management system performs flawlessly.
Every JK BMS unit is backed by a 6-month warranty covering manufacturing defects and component failures. Our team has extensive experience with JK BMS products and can help troubleshoot any issues that arise during installation or operation.
For bulk orders, custom configuration assistance, compatibility verification with your specific battery pack and inverter combination, or technical consultation, please contact us before placing your order. We’re here to help you build a reliable, high-performance energy storage system.
