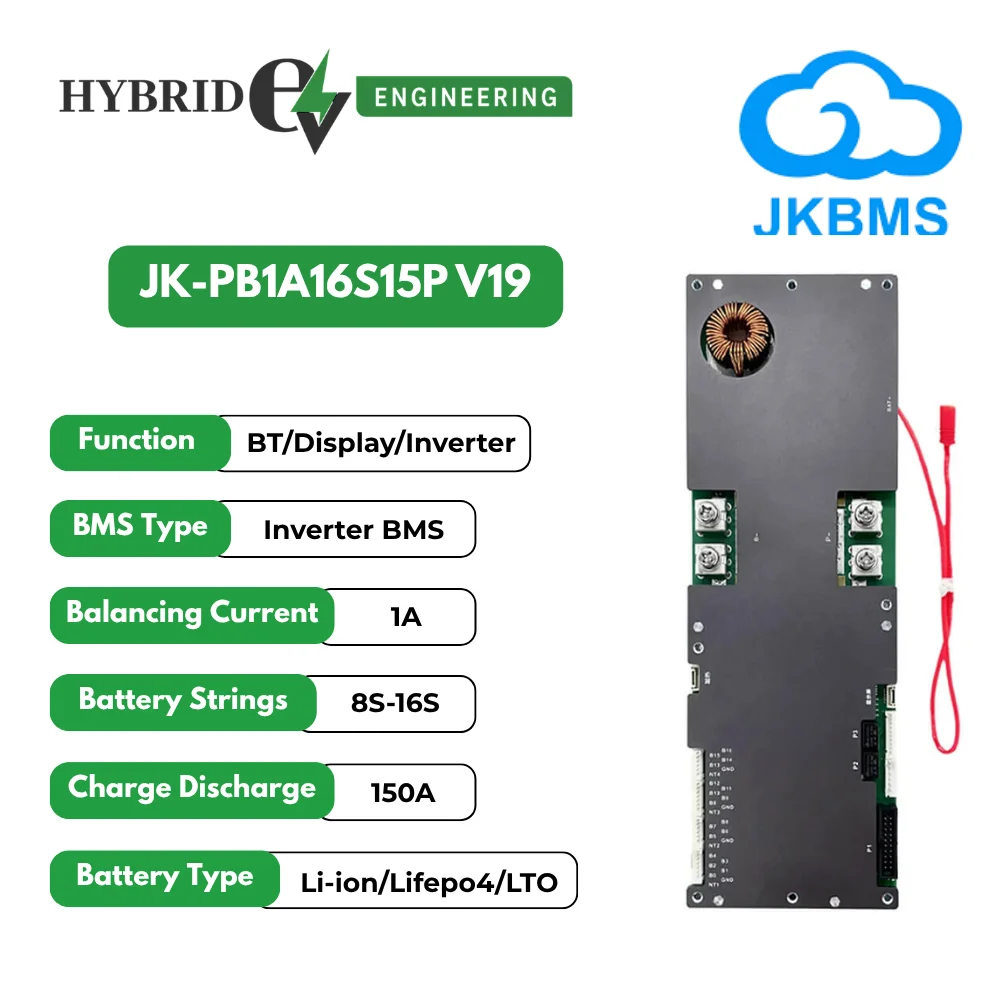

Overview: JK Inverter BMS V19 8S to 16S 1A 150A Smart BMS
The JK Inverter BMS V19 with 150A continuous current is the optimal choice for 48V residential solar storage systems paired with 5kW to 7kW hybrid inverters. The V19 firmware delivers the latest inverter protocol updates, ensuring seamless communication with the widest range of solar equipment available in Pakistan, including Deye SUN-5K, Growatt SPF, Voltronic Axpert, and Sol-Ark units. This smart BMS combines advanced active balancing technology with robust protection features to maximize battery performance and longevity in home solar installations.
Key Technical Specifications
- Cell configuration: 8S to 16S (24V to 48V LiFePO4 compatible)
- Active balancing current: 1A continuous for optimal cell balancing
- Continuous current rating: 150A
- Firmware version: V19 with latest inverter protocol library
- Communication interfaces: Bluetooth 5.0, RS485, CAN, UART
- Direct inverter compatibility: Deye, Growatt, Voltronic, Sol-Ark, MPP Solar
- Pylontech emulation mode for universal compatibility
- Comprehensive protection: Overvoltage, Undervoltage, Overcurrent, Short Circuit, Over Temperature, Balance Fault
Why 150A is Perfect for Residential Solar Systems
Understanding current requirements is critical for reliable solar battery systems. A 5kW inverter operating on 48V draws approximately 105A under full load conditions, while a 7kW inverter reaches around 145A at peak output. The 150A continuous rating provides essential headroom for peak loads without triggering nuisance protection trips, while remaining more cost-effective than oversized 200A models. For most Pakistani households operating hybrid solar systems, this 150A rating represents the ideal balance between performance and value.
Proper Sizing Benefits
- Prevents false shutdowns during peak inverter loads
- Extends BMS lifespan by avoiding thermal stress
- Accommodates future system expansion
- Optimizes cost without compromising safety margins
Advanced 1A Active Balancing Technology
The JK Inverter BMS V19 features 1A continuous active balancing, a significant upgrade over traditional passive balancing systems. Active balancing redistributes energy from higher-voltage cells to lower-voltage cells during both charging and discharging cycles. This ensures all cells in your LiFePO4 battery pack maintain uniform voltage levels, maximizing usable capacity and extending overall battery life. With 1A balancing current, the system can handle typical cell imbalances quickly and efficiently, particularly important in DIY battery packs or packs using salvaged cells.
Universal Inverter Compatibility
The V19 firmware includes comprehensive protocol libraries for direct integration with popular solar inverter brands used throughout Pakistan. This eliminates the need for additional communication converters or adapters.
Supported Inverter Brands and Models
- Deye: SUN-5K, SUN-6K, SUN-8K hybrid inverters
- Growatt: SPF 5000, SPF 6000, SPH series
- Voltronic: Axpert series, Infini Solar
- Sol-Ark: 5K, 8K, 12K models
- MPP Solar: PIP series, LV series
Pylontech Emulation Mode
For inverters that natively support Pylontech battery protocols, the JK BMS V19 can emulate Pylontech communication format, providing plug-and-play compatibility with dozens of additional inverter models. This feature dramatically expands compatibility beyond the native protocol support.
Communication Options for Smart Monitoring
The JK Inverter BMS V19 offers multiple communication pathways to suit different installation requirements and monitoring preferences.
Bluetooth 5.0 Wireless Monitoring
Built-in Bluetooth 5.0 enables wireless monitoring and configuration using the JK BMS smartphone app. View real-time cell voltages, current flow, temperature, state of charge, and protection status. Adjust protection parameters, balancing settings, and inverter communication protocols directly from your phone within Bluetooth range.
RS485 and CAN Bus
Professional installations benefit from wired RS485 and CAN bus connectivity. These industrial-grade protocols provide reliable, long-distance communication between the BMS and your solar inverter or monitoring system. The V19 firmware automatically detects and configures the appropriate protocol based on your inverter model.
Comprehensive Protection Features
Battery safety is paramount in solar energy storage systems. The JK Inverter BMS V19 includes a full suite of protection mechanisms with user-programmable thresholds to match your specific battery chemistry and installation requirements.
Protection Functions Include
- Overvoltage Protection: Individual cell and pack-level monitoring prevents overcharging
- Undervoltage Protection: Protects cells from damaging deep discharge
- Overcurrent Protection: Monitors charge and discharge current limits
- Short Circuit Protection: Instantaneous disconnection in fault conditions
- Over Temperature Protection: Dual NTC sensors monitor battery temperature
- Balance Fault Detection: Alerts when cells drift beyond acceptable voltage difference
- Charge/Discharge MOS Temperature: Prevents MOSFET thermal failure
Recommended Applications and Use Cases
48V LiFePO4 Home Solar Systems
The primary application for the JK Inverter BMS V19 150A is residential solar energy storage using 48V LiFePO4 battery banks paired with 5kW to 7kW hybrid inverters. This configuration is ideal for typical Pakistani households with moderate to high electricity consumption.
Net Metering and Grid-Tie with Backup
For homes with net metering agreements, the BMS enables seamless transition between grid-connected and backup operation. Store excess solar production during the day and discharge during evening peak hours or grid outages.
Time-of-Use Solar Arbitrage
In areas with time-of-use electricity tariffs, use your battery system to store cheap off-peak grid power or daytime solar production, then discharge during expensive peak hours to maximize savings.
Small Commercial Backup Systems
Shops, clinics, and small offices benefit from reliable battery backup during load shedding. The 150A rating supports essential loads including lighting, computers, refrigeration, and light machinery.
Installation and Configuration
The JK Inverter BMS V19 is designed for straightforward installation by experienced DIY builders or professional installers. The balance lead harness connects to your battery pack’s balance taps, while the main power terminals handle charge and discharge current. NTC temperature sensors mount directly to battery cells or within the battery enclosure.
Initial Setup Steps
- Connect balance leads to battery pack balance taps in correct polarity
- Attach NTC temperature sensors to battery cells
- Connect main positive and negative power terminals
- Configure cell count and battery chemistry via Bluetooth app
- Set protection parameters appropriate for your cells
- Connect RS485 or CAN to inverter per wiring diagram
- Configure inverter communication protocol in BMS settings
- Test communication and verify data exchange with inverter
What is Included in the Package
- 1 x JK Inverter BMS V19 main unit (8S-16S 1A 150A)
- 2 x NTC temperature sensors with cables
- Balance lead harness with appropriate connector
- Communication cable (RJ45 connector)
- Comprehensive user guide with detailed specifications
- Inverter wiring diagrams for popular brands
Technical Support and Installation Assistance
Hybrid EV Engineering provides comprehensive technical support for all JK BMS products. Our experienced team can assist with compatibility verification, installation guidance, parameter configuration, and troubleshooting. Whether you are building your first DIY battery pack or integrating into an existing solar system, we offer the expertise to ensure successful deployment.
Availability and Warranty in Pakistan
This product is readily available throughout Pakistan with fast shipping from Hybrid EV Engineering in Rawalpindi. We maintain stock of popular JK BMS models to ensure quick delivery for your solar projects.
Warranty Coverage
All JK BMS units are backed by a 6-month warranty against manufacturing defects. The warranty covers component failure under normal operating conditions when installed and configured according to specifications. Damage from incorrect wiring, overvoltage, physical impact, or water ingress is not covered.
Bulk Orders and Custom Solutions
For bulk orders, custom configuration assistance, or compatibility verification with your specific battery pack and inverter combination, please contact us before placing your order. We offer volume discounts for installers, integrators, and commercial projects.
Why Choose JK Inverter BMS V19 for Your Solar System
The JK Inverter BMS V19 150A represents the current state-of-the-art in affordable, feature-rich battery management for residential solar storage. The combination of 1A active balancing, 150A continuous current rating, universal inverter compatibility, and comprehensive protection features makes it the go-to choice for serious solar installations in Pakistan. Whether you are upgrading an existing system or building new, the V19 firmware ensures you have the latest protocol support and features for years of reliable operation.
