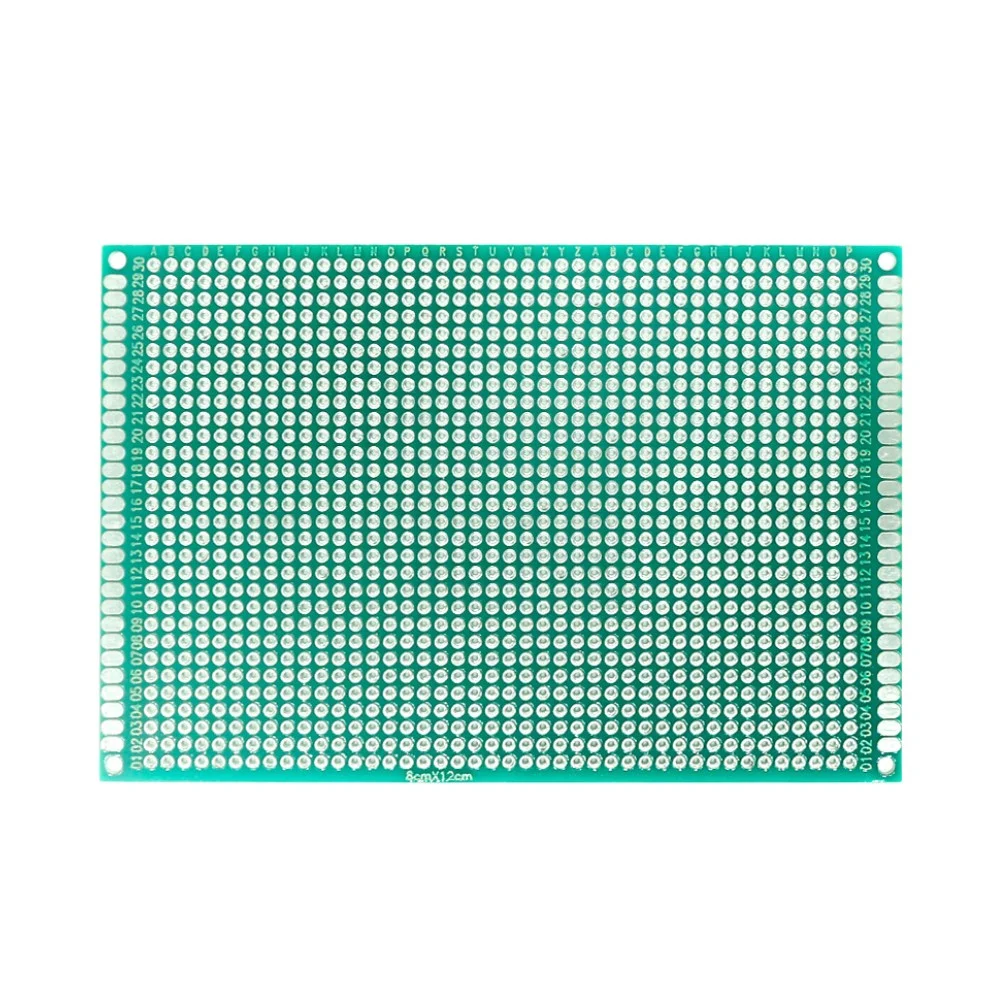

8x12cm Double Sided Fiber Glass Green Veroboard

The 8x12cm Double-Sided Fiber Glass Veroboard is a durable and versatile PCB prototyping board designed for building permanent electronic circuits. Constructed from high-quality FR4 fiberglass, it features copper pads on both sides, allowing more efficient routing, stronger connections, and support for more complex circuit designs.

With its larger size compared to standard boards, it is ideal for advanced projects, multi-module circuits, and professional prototyping work.

Key Features

• Double-Sided Copper Layer: Pads on both sides for flexible circuit routing
• FR4 Fiber Glass Material: High strength, heat-resistant, and long-lasting
• Large Working Area (8x12cm): Suitable for complex and multi-component circuits
• Standard 2.54mm Pitch: Compatible with ICs, headers, and standard components
• Green Solder Mask: Prevents short circuits and improves insulation
• Pre-Drilled Holes: Easy component placement and soldering
• Professional Finish: Ideal for neat and durable circuit builds

Technical Specifications

• Board Type: Veroboard / Perfboard
• Dimensions: 8 x 12 cm (80 x 120 mm)
• Material: FR4 Fiber Glass
• Copper Layer: Double-sided
• Hole Pitch: 2.54 mm (0.1 inch)
• Hole Diameter: ~1 mm (typical)
• Board Thickness: ~1.6 mm
• Surface Finish: HASL or equivalent
• Color: Green

Working Structure and Design

The double-sided design of this veroboard offers superior flexibility for circuit construction:

• Each hole is surrounded by a copper pad on both sides
• Components are inserted and soldered for secure connections
• Electrical connections can be made using:
  • Solder bridges
  • Jumper wires
  • Cuttable tracks (depending on board pattern)

This allows flexible and semi-permanent circuit design similar to a custom PCB.

Applications

This versatile prototyping board is perfect for a wide range of electronic projects:

• Complex Arduino and microcontroller projects
• Power electronics circuits
• Audio amplifiers and analog systems
• Robotics and automation systems
• DIY electronics and prototyping
• Educational and lab experiments

Advantages of Double-Sided Veroboard

• Larger area for advanced designs
• Strong and heat-resistant FR4 material
• Supports double-sided wiring and routing
• Reliable for long-term use
• Cleaner and more professional circuit layout

Usage Tips

• Plan your circuit layout before soldering
• Use solid core wires for jumpers
• Avoid overheating pads while soldering
• Use proper insulation for high-voltage sections
• Clean the board after soldering for best results

Note: Images are for illustration purposes only.
