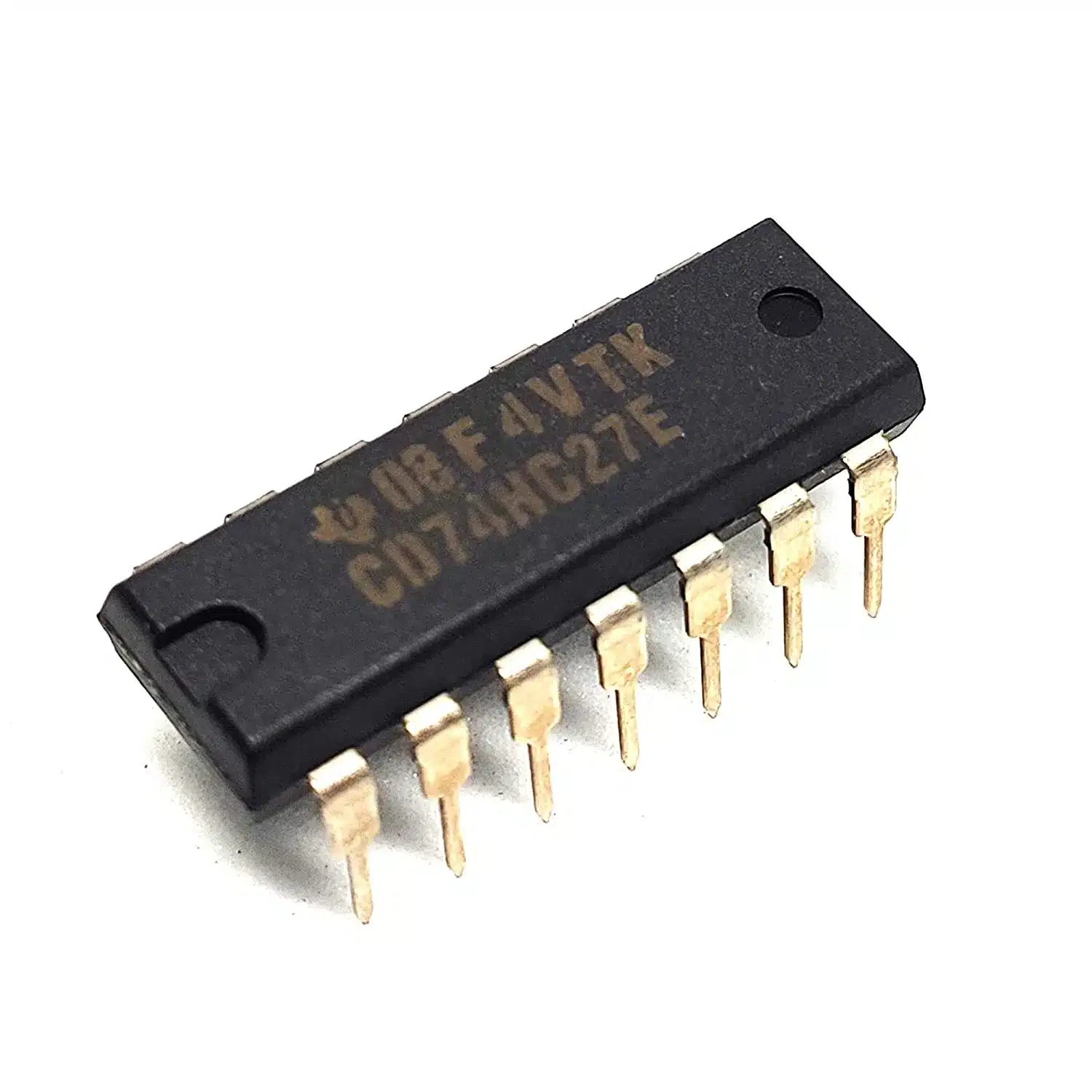

7427 Triple 3-Input NOR Gate IC (DIP)

Availability:

In stock


Triple 3-input NOR gate TTL IC in 14-pin DIP—fast, reliable, and ideal for combinational logic and student projects.

WhatsAppChat on WhatsApp

₨ 90 ₨ 100

In stock

The 7427 Triple 3-Input NOR Gate IC (DIP) is a standard 74xx TTL logic device that integrates three independent 3-input NOR gates in one 14-pin package. A NOR gate outputs HIGH only when all inputs are LOW, making it a powerful universal gate for building any digital function. Ideal for digital logic design, control and decision circuits, and educational labs. The DIP-14 package is breadboard-friendly for quick prototyping.

Key Features

  • Three independent 3-input NOR gates (triple NOR)
  • TTL 74xx family; typical 5V operation (4.75–5.25V)
  • Fast switching with reliable TTL thresholds
  • Direct interfacing with standard TTL/CMOS (with proper levels)
  • DIP-14 package; easy for breadboards and PCBs
  • Universal gate—can implement any logic function

Applications

  • Combinational logic and decision circuits
  • Enable/disable control, gating, and decoding
  • Timing/sequencing and simple state logic
  • Microcontroller/FPGA interfacing and prototyping
  • Educational kits and student digital labs

Note: Images are for Illustration Purposes Only

What is the 7427 Triple 3-Input NOR Gate IC?

The 7427 is a TTL logic IC that contains three independent 3-input NOR gates in a 14-pin DIP package. Each gate outputs HIGH only when all three inputs are LOW. This makes it a universal gate, meaning you can build any digital logic function with it.

It operates at a typical 5V supply (4.75V to 5.25V) and switches fast, so it works well in combinational logic, control circuits, and student labs. The DIP-14 package fits breadboards and through-hole PCBs, so you can prototype quickly without soldering tiny parts.

What can I build with the 7427 IC?

Because NOR is a universal gate, the 7427 can implement any logic function. Common uses include:

  • Combinational logic and decision circuits
  • Enable/disable control, gating, and decoding
  • Timing and sequencing logic
  • Microcontroller and FPGA interfacing
  • Educational digital labs and student projects

For example, you can combine NOR gates to make an AND gate, OR gate, or inverter. This makes the 7427 a flexible building block for digital design courses and hobby projects.

How does the 7427 compare to other 74xx logic ICs?

The 7427 is part of the 74xx TTL family. It offers three 3-input NOR gates, while other common ICs have different gate types and input counts. Here is a quick comparison:

ICFunctionGatesInputs per GatePrice (checked September 2026)
7427NOR33Rs. 90
7408AND42Rs. 40
7432OR42Rs. 40
7404NOT61Rs. 40

All are TTL compatible and work at 5V. Choose based on the logic function and number of inputs you need. The 7427 is handy when you need 3-input NOR gates without using multiple chips.

Where can I buy the 7427 IC in Pakistan?

You can order the 7427 Triple 3-Input NOR Gate IC from College Road Electronics. We are an electronics shop on College Road, Rawalpindi, and we deliver nationwide across Pakistan with flat-rate shipping Rs 350. The price is Rs. 90, checked in September 2026, and it is in stock.

We also stock other Integrated Circuits (ICs) for your projects. Students get parts and guidance for school, college and university projects. If you are building a digital logic project, this IC is a solid choice.

Frequently Asked Questions

What is the difference between a NOR gate and an OR gate?

A NOR gate is an OR gate followed by an inverter. An OR gate outputs HIGH when any input is HIGH. A NOR gate outputs HIGH only when all inputs are LOW. The 7427 has three 3-input NOR gates, so each gate needs all three inputs LOW to give a HIGH output.

Can I use the 7427 IC with a 3.3V microcontroller?

The 7427 is a TTL device designed for 5V operation (4.75V to 5.25V). It may not work reliably at 3.3V. If you use a 3.3V microcontroller, you need level shifting to 5V for the inputs and possibly for the outputs. Check your microcontroller’s voltage tolerance before connecting directly.

How many gates are in the 7427 IC?

The 7427 contains three independent 3-input NOR gates. Each gate has three inputs and one output. All gates share the same power supply pins (VCC and GND). The 14-pin DIP package provides access to all inputs and outputs.

Is the 7427 IC in stock and what is the price?

Yes, the 7427 Triple 3-Input NOR Gate IC (DIP) is in stock at College Road Electronics. The price is Rs. 90, checked in September 2026. We deliver nationwide across Pakistan with flat-rate shipping Rs 350.
