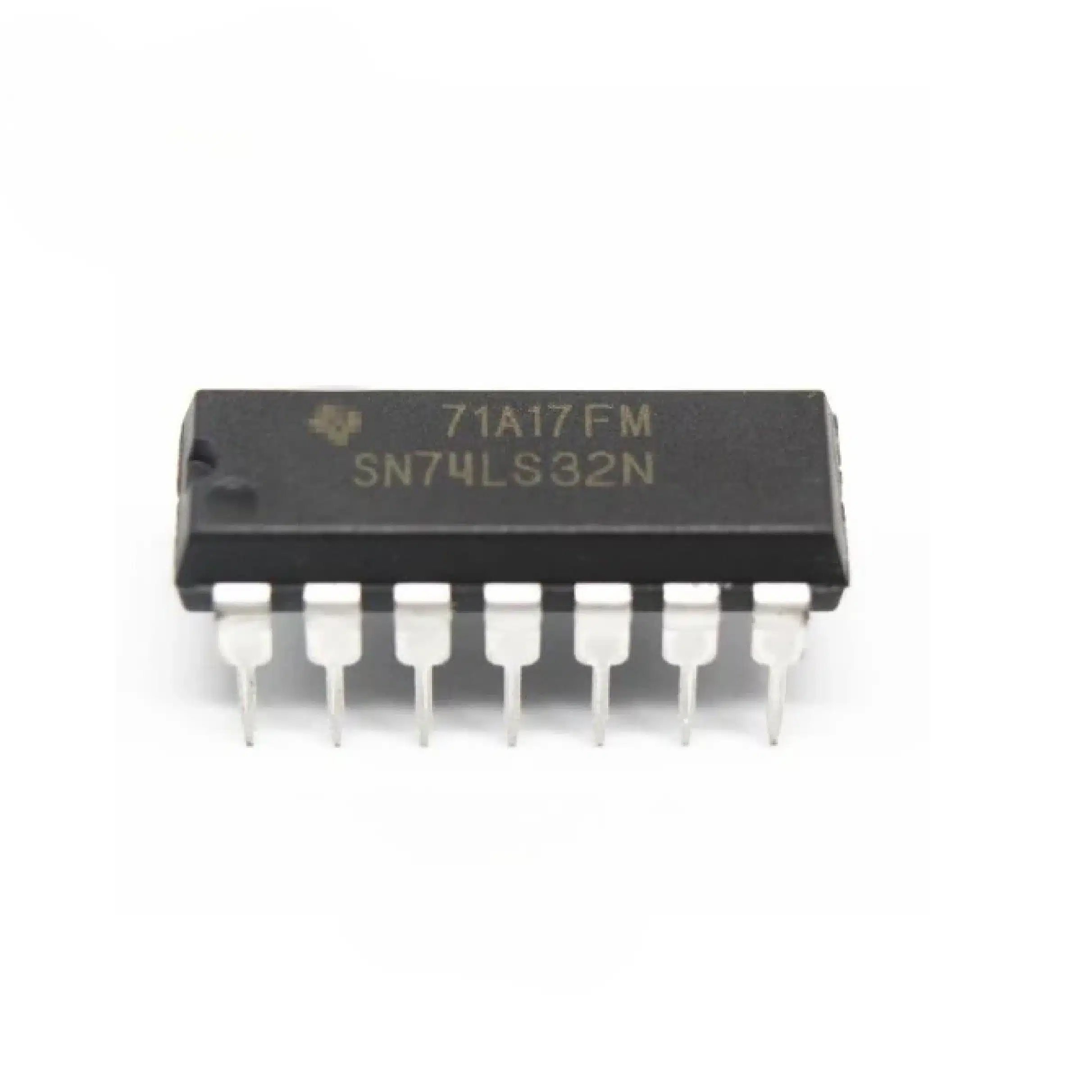

7432 Quad 2-Input OR Gate IC (DIP)

Overview

The 7432 Quad 2-Input OR Gate IC is a classic TTL logic device that integrates four independent OR gates in a convenient Dual In-line Package (DIP). Designed for reliable performance at standard +5V TTL logic levels, the 7432 is widely used in digital logic design, control systems, and educational electronics.

Key Features

• Four independent 2-input OR gates in one 14-pin DIP package
• TTL logic compatible with the standard 74 series
• Operates typically at +5V supply voltage
• High-speed switching with reliable output levels
• Low power consumption for efficient designs
• Easy to use on breadboards and through-hole PCBs

Technical Specifications

• Function: Quad 2-input OR gates
• Logic family: TTL (74 series)
• Supply voltage: Typically +5V
• Package: 14-pin Dual In-line Package (DIP)
• Compatibility: Interoperable with other 74xx TTL devices

Applications

• Digital logic and combinational circuit design
• Educational labs and DIY electronics projects
• Embedded systems and microcontroller interfacing
• Industrial automation and control logic
• Prototyping on breadboards and development boards

Typical Usage and Tips

Prototyping

• Use the 14-pin DIP package directly on a breadboard for quick testing and learning.
• Bypass the supply pins with a 0.1uF decoupling capacitor placed close to VCC and GND to reduce noise and ensure stable switching.

Interfacing

• Inputs expect TTL logic levels. Ensure signal voltages conform to TTL thresholds when interfacing with microcontrollers or other logic families.
• Outputs can drive typical TTL inputs; for higher current loads use appropriate buffering or driver stages.

Why Choose the 7432 OR Gate IC

The 7432 is a reliable, low-cost solution for implementing basic OR logic in a wide range of projects. Its TTL compatibility, low power draw, and easy-to-handle DIP package make it ideal for students, hobbyists, and engineers building prototypes or final designs.

Note: Images are for illustration purposes only.
