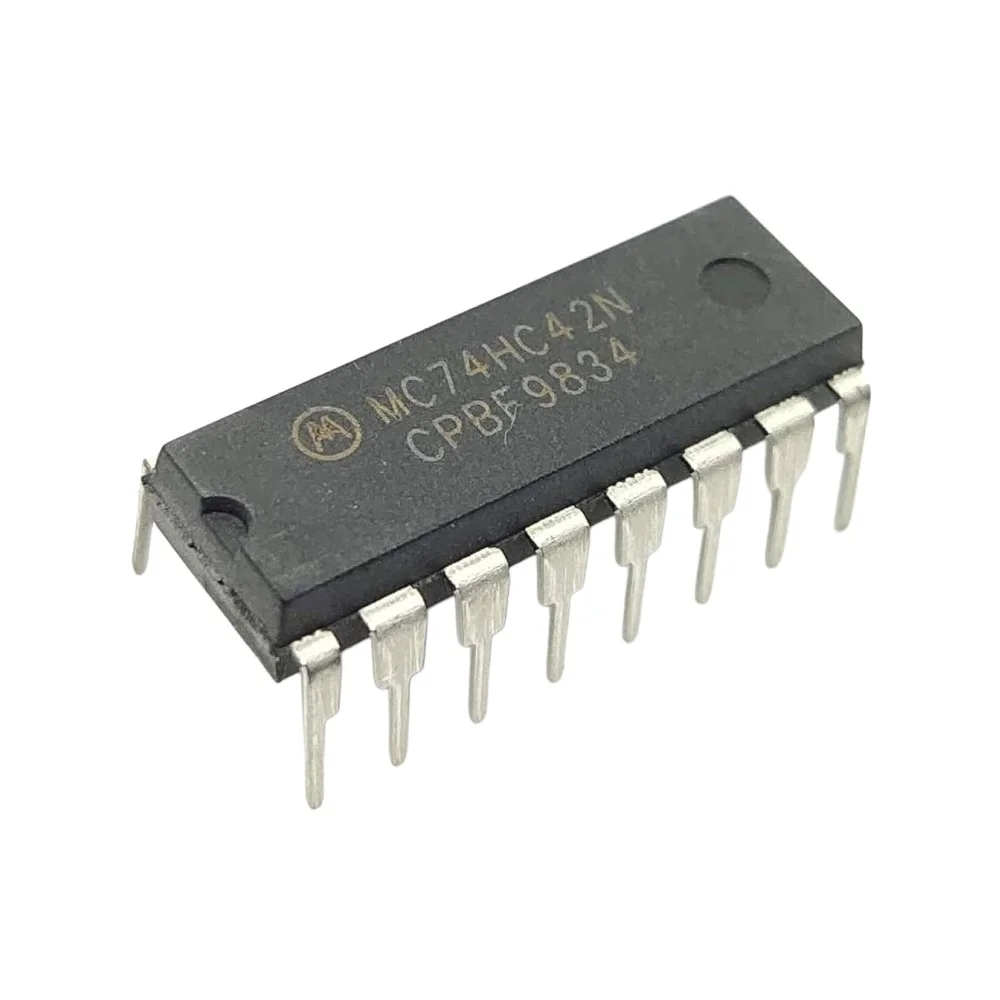

7442 BCD to Decimal Decoder IC (DIP)

Availability:

In stock


– 4 binary inputs (A, B, C, D) decode BCD to one-of-ten outputs (0–9).
– Ten active-low outputs; each output goes LOW for its corresponding BCD code.
– TTL-compatible logic levels for direct microcontroller and logic interfacing.
– DIP-16 package for easy breadboard and PCB integration.
– Fast propagation delay and low power consumption for reliable digital operation.
– Ideal for 7-segment displays, LED indicators, counters, and prototyping.

WhatsAppChat on WhatsApp

₨ 100 ₨ 120

In stock

Factory tested, sent sealed Film your unboxing so we can quickly replace anything damaged, missing or wrong. Returns, refunds and warranty

Overview

The 7442 BCD to Decimal Decoder IC (DIP) is a robust TTL logic device that converts Binary Coded Decimal (BCD) inputs into a single active output among ten decimal outputs (0 to 9). Designed for reliable operation at standard 5V logic, the 7442 simplifies numeric decoding in digital display, counter, and microcontroller-based systems.

How it works

  • Accepts 4 binary inputs (A, B, C, D) representing BCD codes 0000 to 1001.
  • Activates one of ten mutually exclusive outputs corresponding to the decimal digit; outputs are active LOW.
  • Unused or invalid BCD codes (1010 to 1111) result in no valid decimal output asserted.

Key Features

  • BCD to Decimal decoding with 10 active-low outputs.
  • TTL-compatible input thresholds for straightforward interfacing with microcontrollers and logic families.
  • Fast switching: typical propagation delay ~25 ns for high-performance applications.
  • Low power consumption and predictable output currents for LED and display driving.
  • Standard DIP-16 package for easy prototyping on breadboards and development boards.

Specifications

  • IC Number: 7442
  • Logic Type: BCD to Decimal Decoder
  • Inputs: 4 (A, B, C, D)
  • Outputs: 10 (active LOW)
  • Input Voltage (High): 2.0 V (Min)
  • Input Voltage (Low): 0.8 V (Max)
  • Output Current (Low): 16 mA (Max)
  • Output Current (High): -0.4 mA (typ)
  • Propagation Delay: 25 ns (Typical)
  • Operating Voltage (Vcc): 4.75 V to 5.25 V (Typical 5 V)
  • Package: DIP-16 (Dual Inline Package)
  • Operating Temperature: 0°C to +70°C

Applications

  • Driving LED indicators and 7-segment numeric displays via direct decoding or through driver transistors.
  • Digital counters, timers, and numeric readouts in instrumentation.
  • Microcontroller-based numeric display systems and front-panel indicators.
  • Logic control, output multiplexing, and simple demultiplexer roles in control systems.
  • Educational labs, prototyping, and industrial control projects that require reliable BCD-to-decimal conversion.

Design and Integration Tips

  • Because outputs are active LOW, use pull-up resistors or connect to LED indicators with series resistors accordingly.
  • For driving multiple LEDs or a 7-segment display directly, ensure output current limits are not exceeded; use driver transistors or dedicated display drivers when needed.
  • Keep Vcc at a stable 5 V and decouple with a 0.1 µF ceramic capacitor close to the IC to reduce noise and ensure reliable switching.
  • Place the DIP-16 device on a breadboard or socket for quick testing and replacement during development.

Why choose the 7442 BCD to Decimal Decoder IC

The 7442 delivers simple, reliable BCD-to-decimal decoding with TTL compatibility, making it a practical choice for hobbyists, educators, and engineers. Its combination of active-low outputs, fast switching, and DIP-16 packaging makes it easy to integrate into display and control applications where clear decimal outputs are required.
