SG90 9g Micro Servo Motor (360 Degree Rotation)

(2 customer reviews)
Availability:

In stock


  • Compact servo with 360-degree continuous rotation for full directional control.
  • Lightweight (approx. 9g) and small form factor for tight builds.
  • Durable construction for reliable, long-lasting operation.
  • Simple PWM control compatible with Arduino, Raspberry Pi and other microcontrollers.
  • Low power consumption, runs on 4.8V to 6V—ideal for battery projects.
  • Great for wheeled robots, pan-tilt systems, conveyors and DIY automation.
WhatsAppChat on WhatsApp

₨ 350 ₨ 380

In stock

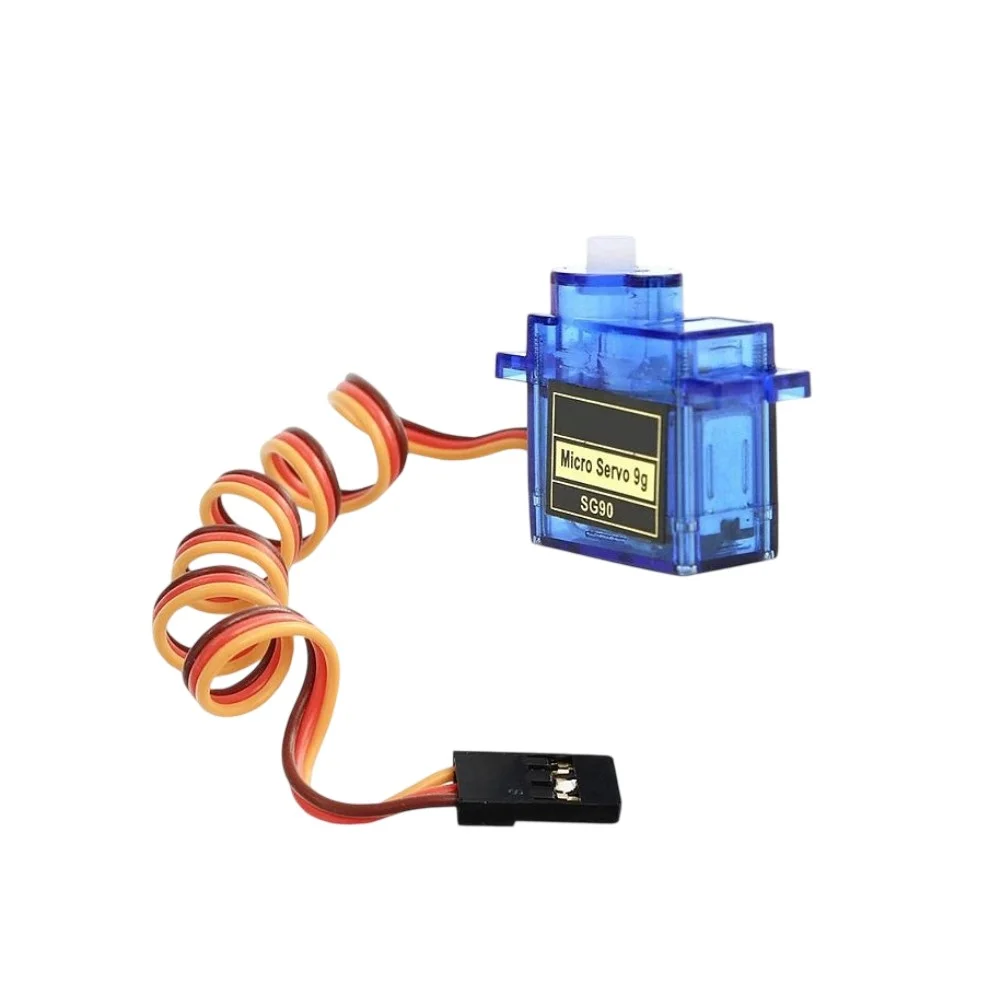

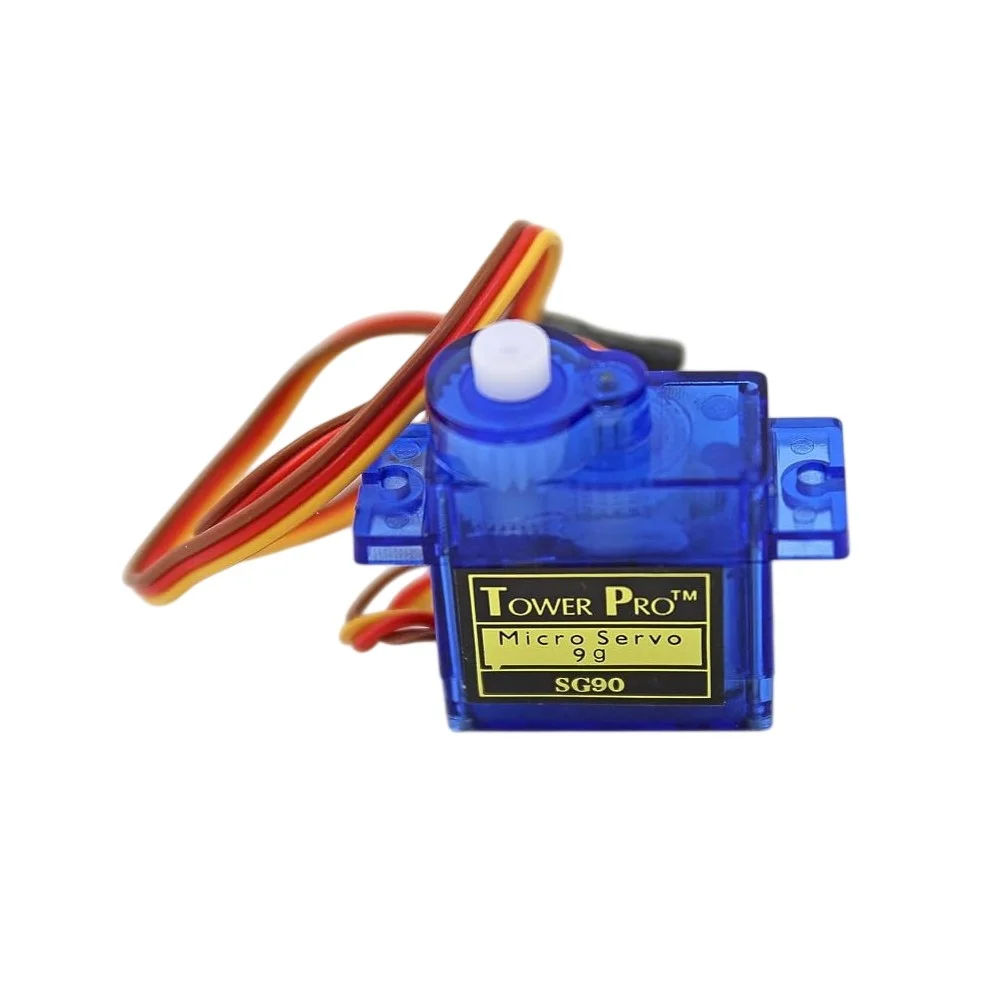

Servo Motor SG90 (360 Degree Rotation) Overview

The Servo Motor SG90 (360 Degree Rotation) is a compact and versatile continuous-rotation servo designed for robotics, automation and hobbyist applications. Combining small size, low weight and PWM-based control, the SG90 is a popular choice for beginners and advanced makers who need reliable rotational motion with simple integration.

Key Features

  • 360-degree continuous rotation: Full rotation capability for driving wheels, turntables and conveyor elements.
  • Compact and lightweight: Approximately 9g and a small footprint for space-constrained designs.
  • Durable build quality: Constructed with reliable materials for long service life in hobby and educational projects.
  • Easy PWM control: Controlled via standard PWM signal, compatible with Arduino, Raspberry Pi and most microcontrollers.
  • Low power draw: Efficient operation within 4.8V to 6V suitable for battery-powered systems.

Specifications

  • Operating Voltage: 4.8V – 6V
  • Torque: Up to 1.8 kg/cm (at 6V)
  • Speed: 0.12 sec/60° (at 6V)
  • Weight: Approximately 9g
  • Dimensions: 22.2mm x 11.8mm x 31mm
  • Signal Type: PWM control
  • Rotation: 360-degree continuous

Wiring and Control

The SG90 uses standard three-wire connections: power (VCC), ground (GND) and signal (PWM). It accepts PWM control pulses from microcontrollers such as Arduino and Raspberry Pi. Typical integration suggestions:

  • Use a stable 4.8V to 6V supply rated for your number of servos to avoid voltage drops.
  • Connect signal to a PWM-capable GPIO pin and use the appropriate library (Servo library on Arduino) to generate control pulses.
  • For multi-servo systems, use an external power source or servo driver to prevent brownouts on your microcontroller.

Common Applications

  • Wheeled robots and smart cars for continuous wheel drive
  • Pan-tilt camera mounts and surveillance rigs
  • DIY robotics projects and educational STEM kits
  • Conveyor and small automation mechanisms
  • Prototyping and hobbyist automation

Package Contents

  • 1 x Servo Motor SG90 (360 Degree Rotation)
  • 3 x Assorted servo horns with screws

Tips for Best Performance

  • Calibrate your controller code to set appropriate neutral and speed values for continuous rotation servos.
  • Avoid prolonged stall conditions to prevent overheating and reduce wear.
  • If you need precise positional control instead of continuous rotation, use a standard positional SG90 variant.
  • Secure mounting and proper servo horns will improve torque transfer and reduce mechanical play.

Note: Images are for illustration purposes only. Actual product design may vary slightly based on availability.
