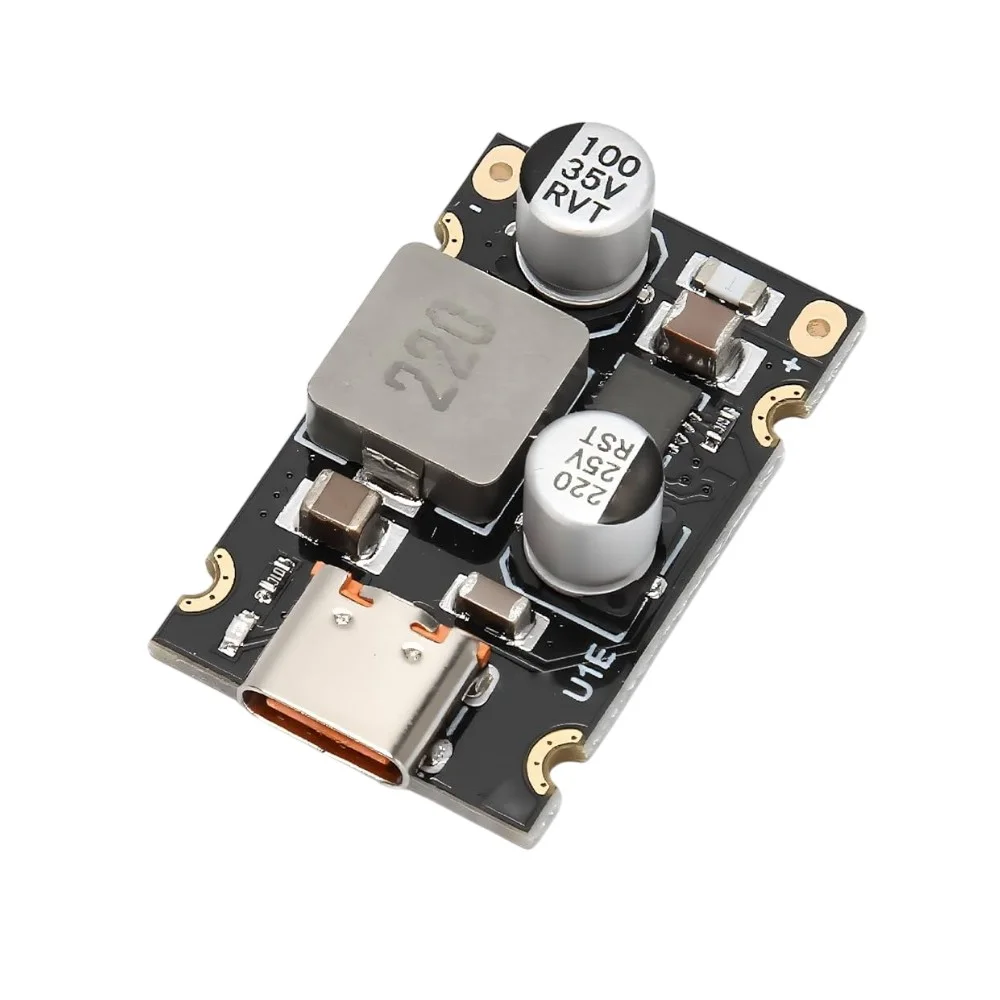

PD65W Fast Charging Module – Professional Power Solution
This PD65W Fast Charging Adapter Module delivers professional-grade charging performance with its advanced DC-DC buck converter technology. Designed for modern smartphones, tablets, laptops, and USB-powered devices, it supports multiple fast-charging protocols for efficient and stable power delivery.
Key Features and Specifications
High Power 65W Fast Charging Capability
The module provides up to 65W of charging power through its USB Type-C Power Delivery (PD) output, making it capable of charging high-power devices including laptops, smartphones, and tablets at maximum speed.
Wide Input Voltage Compatibility
Accepts input voltage from 8V to 32V DC, offering exceptional versatility for use with:
- Battery systems
- Solar power installations
- Automotive power supplies
- DC power adapters
Advanced Fast Charging Protocol Support
The module supports multiple charging standards:
- Power Delivery (PD) – Up to 65W charging
- Quick Charge QC4.0 – Latest fast charging technology
- Quick Charge QC3.0 – Wide device compatibility
Technical Specifications
| Input Voltage | DC 8V – 32V |
| Maximum Input Current | 3.25A |
| Output Ports | USB Type-C + USB |
| Maximum Output Power | 65W |
| Fast Charging Protocols | PD, QC4.0, QC3.0 |
| Conversion Type | DC-DC Buck Converter |
| Efficiency | High Efficiency Power Conversion |
Safety and Protection Features
The module includes comprehensive safety protections:
- Over-current protection – Prevents damage from excessive current draw
- Over-voltage protection – Guards against voltage spikes
- Short-circuit protection – Automatic shutdown during short circuits
- Over-temperature protection – Thermal shutdown for safe operation
Applications and Use Cases
This versatile charging module is perfect for various applications:
- DIY fast charging power supplies
- Car USB fast chargers
- Portable power stations
- Battery charging systems
- Solar charging systems
- Embedded electronics projects
Compact and Integration-Ready Design
The small and lightweight design makes this module easy to integrate into custom power supplies, power banks, car chargers, and embedded systems. Its high-efficiency conversion technology ensures minimal heat generation while maintaining stable power output.
