ESP32 C3 Super Mini Development Board (HW-566AB)

Availability:

In stock


• Ultra-compact IoT development board (22.5 × 18 mm) with ESP32-C3 RISC-V processor
• Built-in Wi-Fi 802.11 b/g/n (2.4GHz) and Bluetooth 5.0 LE connectivity
• USB Type-C interface for direct programming and power without external USB-to-serial adapter
• 4MB flash memory, 400KB SRAM, and up to 160MHz clock speed
• Low power consumption with deep sleep current around 43µA, ideal for battery-operated projects
• 11-22 GPIO pins with UART, SPI, I2C, PWM, and ADC interfaces for versatile applications
• Perfect for IoT devices, smart home automation, wearables, and embedded systems

WhatsAppChat on WhatsApp

₨ 700 ₨ 800

In stock

Factory tested, sent sealed Film your unboxing so we can quickly replace anything damaged, missing or wrong. Returns, refunds and warranty

ESP32 C3 Super Mini Development Board Overview

The ESP32-C3 Super Mini (HW-566AB) is an ultra-compact and powerful IoT development board based on the ESP32-C3 RISC-V microcontroller. Designed for space-constrained applications, it combines Wi-Fi and Bluetooth 5 (BLE) connectivity with low power consumption and modern USB-C programming.

This board is ideal for developers working on IoT devices, smart home systems, wearable electronics, and embedded projects where size and efficiency matter.

Key Features of ESP32 C3 Super Mini

  • RISC-V 32-bit Processor: ESP32-C3 single-core CPU running up to 160MHz
  • Built-in Wi-Fi and Bluetooth 5: Supports 2.4GHz Wi-Fi and BLE 5.0 for wireless applications
  • Ultra-Compact Size: Approximately 22.5 × 18 mm, ideal for small devices
  • USB Type-C Interface: Direct programming and power without external USB-to-serial adapter needed
  • Low Power Consumption: Deep sleep current around 43µA, suitable for battery-powered projects
  • Onboard LEDs: Power LED and programmable user LED (GPIO8)
  • Integrated PCB Antenna: No external antenna required

Technical Specifications

  • Microcontroller: ESP32-C3 (RISC-V architecture)
  • Clock Speed: Up to 160 MHz
  • Flash Memory: 4 MB
  • SRAM: Approximately 400 KB
  • Wireless Connectivity:
    • Wi-Fi 802.11 b/g/n (2.4GHz)
    • Bluetooth 5.0 LE
  • GPIO Pins: Approximately 11 to 22 usable pins depending on mapping
  • Analog Inputs: Up to 6 ADC channels
  • PWM Channels: Approximately 11
  • Interfaces: UART, SPI, I2C, PWM, ADC
  • Operating Voltage: 3.3V logic
  • Dimensions: Approximately 22.5mm × 18mm

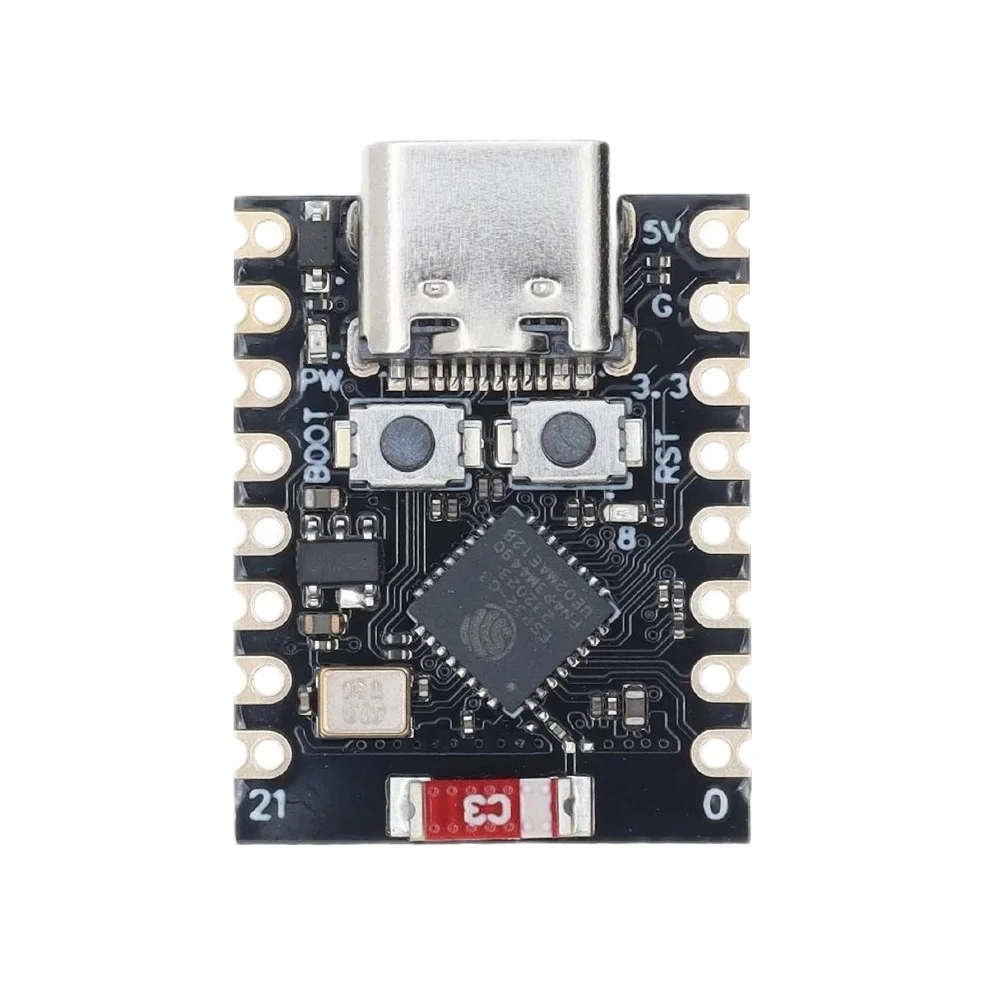

Board Layout and Components

  • USB-C Port: Provides power and programming capabilities
  • BOOT Button: Allows you to enter flashing mode
  • RESET Button: Restarts the board
  • Onboard LEDs: Includes power indicator and user-controllable LED

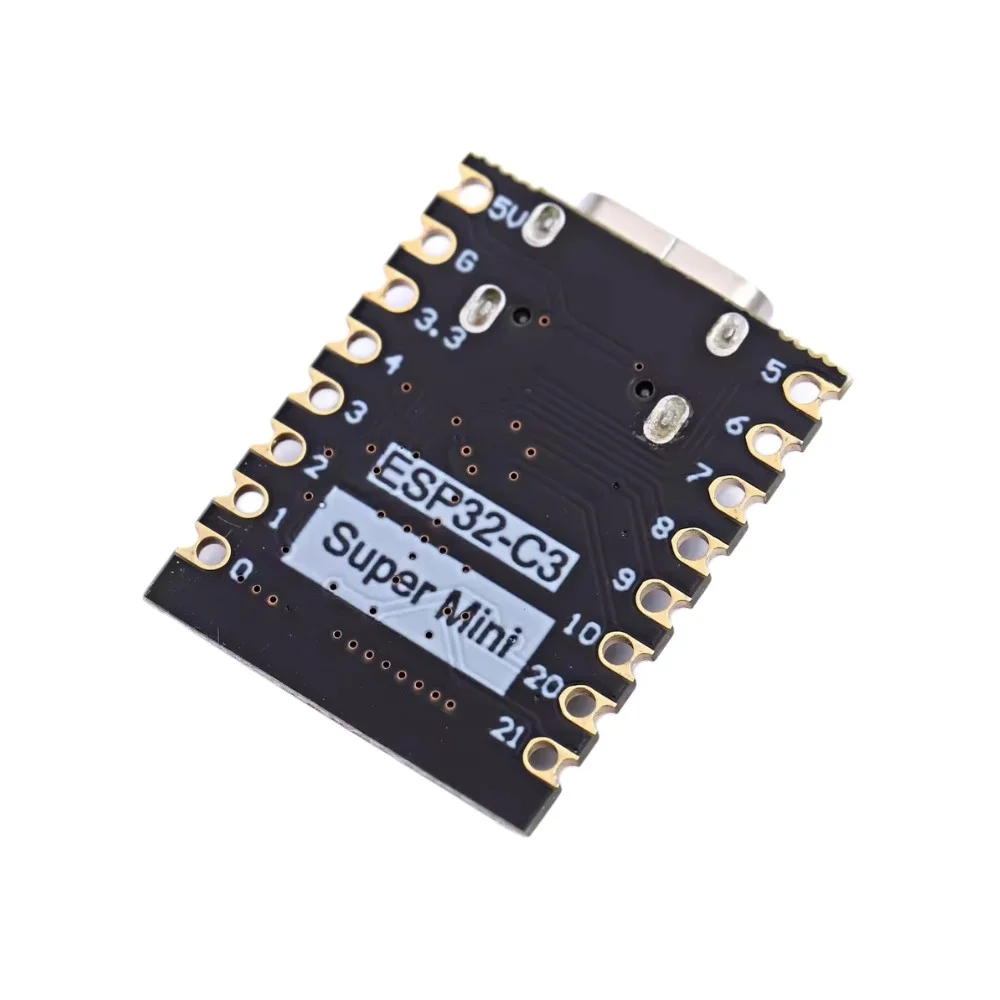

  • GPIO Headers: Direct connection points for sensors and modules

How the ESP32 C3 Super Mini Works

The board operates as a wireless microcontroller platform that enables seamless IoT connectivity:

  • Executes firmware using Arduino IDE, ESP-IDF, or MicroPython
  • Connects to Wi-Fi networks or communicates with BLE devices
  • Reads sensor data and controls actuators through GPIO pins
  • Communicates with cloud services or mobile applications

Its low power modes make it particularly suitable for battery-operated IoT systems requiring extended operational life.

Applications of ESP32 C3 Development Board

  • IoT and smart home automation systems
  • Wireless sensor nodes and environmental monitoring
  • Wearable electronics and fitness trackers
  • ESPHome and Home Assistant integration projects
  • Data logging and remote monitoring solutions
  • Compact embedded systems for space-limited applications

Advantages of ESP32 C3 Super Mini

  • Extremely small form factor that fits in tight spaces
  • Built-in wireless connectivity eliminates need for additional modules
  • No external programmer required thanks to native USB support
  • Low power consumption extends battery life in portable applications
  • Cost-effective compared to larger ESP32 development boards

Usage Tips and Best Practices

  • Select “ESP32C3 Dev Module” in Arduino IDE for programming
  • Use a data-capable USB cable (not power-only) for firmware flashing
  • Avoid overloading GPIO pins as they use 3.3V logic only
  • For stable Wi-Fi performance, ensure clear antenna area with no metal obstructions nearby
  • Use proper power supply (5V USB or regulated 3.3V) for reliable operation

Note: Images are for illustration purposes only.
