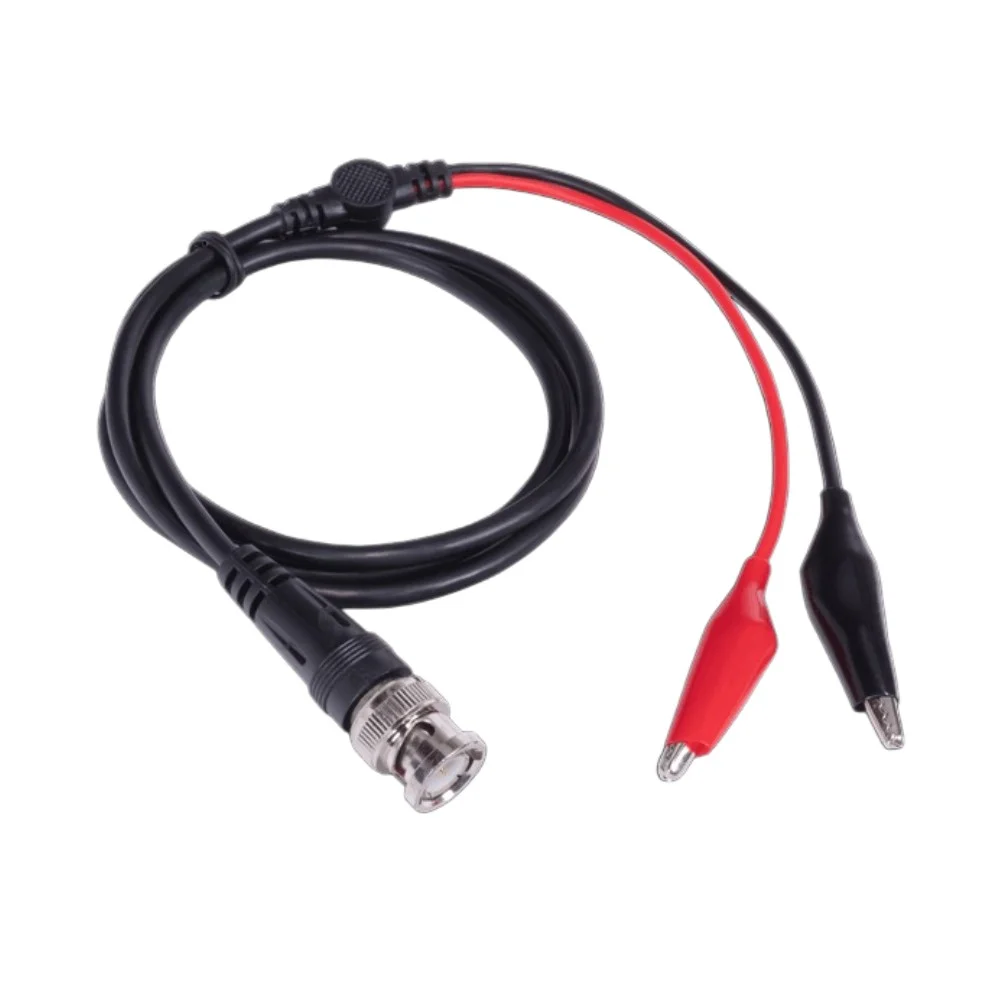

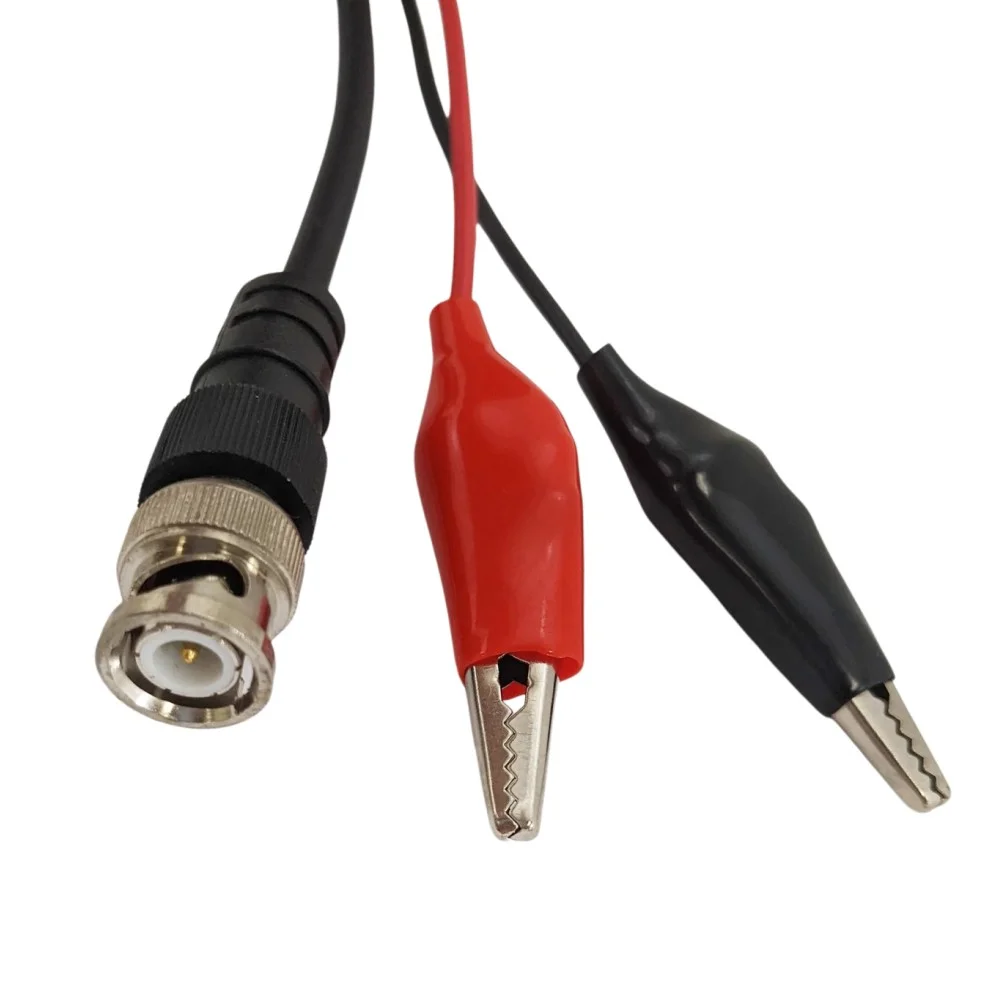

BNC to Red and Black Alligator Clip Test Lead Cable

BNC to Red and Black Alligator Clip Test Lead Cable Overview

The BNC to Red and Black Alligator Clip Test Lead Cable is a practical and versatile test accessory designed for connecting measurement equipment with exposed wire terminals or test points. It features a BNC male connector on one end and red and black alligator clips on the other, allowing quick and secure connections for testing, debugging, and signal measurement.

This cable is commonly used with oscilloscopes, signal generators, RF equipment, and laboratory instruments, enabling convenient connections to circuits, batteries, and electronic components without soldering. The color-coded alligator clips help easily identify positive and negative connections, ensuring safe and organized testing.

Key Features of BNC Alligator Clip Test Cable

• BNC to Alligator Clip Connection: Converts a standard BNC interface to dual alligator clip terminals
• Color-Coded Clips: Red and black clips for easy polarity identification
• Strong Alligator Grip: Provides firm and reliable contact with wires, terminals, and components
• High-Quality Insulated Cable: Durable insulation ensures safe and reliable electrical testing
• Quick and Convenient Testing: Ideal for temporary connections during circuit debugging and measurements
• Compatible with Test Equipment: Works with oscilloscopes, signal generators, and RF instruments with BNC ports

Technical Specifications

• Connector Type: BNC Male to Alligator Clips
• Clip Colors: Red (Positive) and Black (Negative)
• Cable Length: Typically around 1 meter (varies by model)
• Cable Type: Insulated test lead wire
• Conductor Material: Copper (typical)
• Connector Housing: Metal BNC connector with insulated clips
• Usage Type: Testing and measurement cable

Applications for BNC Test Lead Cable

• Oscilloscope signal testing
• Signal generator output connections
• Electronics lab experiments
• Circuit troubleshooting and debugging
• Battery and power supply testing
• Educational and STEM electronics projects

Advantages of Using BNC Alligator Clip Cables

• Easy and fast temporary connections
• Reliable signal transfer for testing
• Durable and reusable test lead cable
• Suitable for laboratory, industrial, and DIY use

Note: Images are for Illustration Purposes Only. Actual product color, cable length, and appearance may vary slightly.
