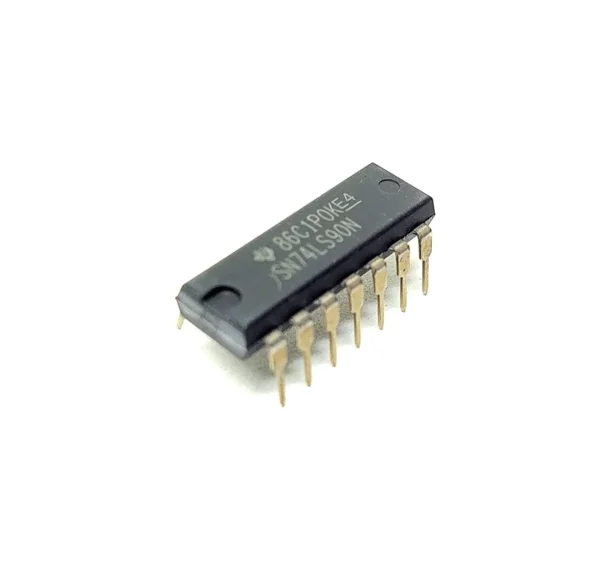

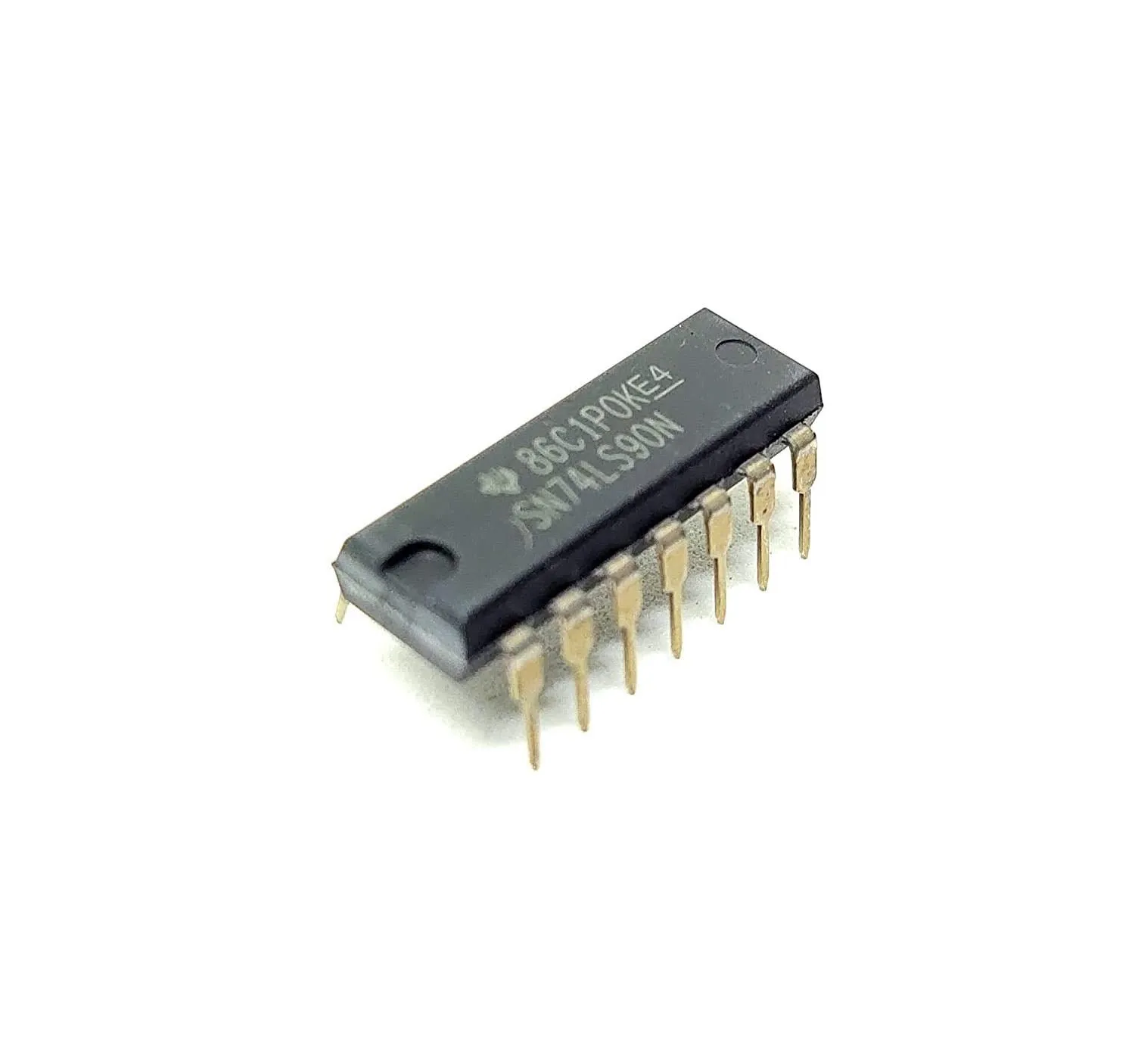

7490 Decade Counter IC (DIP)

Overview of the 7490 Decade Counter IC (DIP)

The 7490 Decade Counter IC (DIP) is a reliable 4-bit binary counter designed for digital counting and frequency division tasks. Built using JK flip-flop based logic, it counts from 0 to 9 in decade mode and resets automatically, making it ideal for numerical sequencing, timing circuits, and display drivers.

Why choose the 7490 Decade Counter IC

• Flexible counting modes: configure as divide-by-2, divide-by-5, or divide-by-10 depending on wiring.
• TTL compatible for high-speed switching and easy interfacing with standard logic families.
• Standard Dual In-line Package (DIP) simplifies breadboard prototyping and PCB assembly.
• Asynchronous master reset inputs allow for quick clearing and initialization of the count.

Key Features

• 4-bit binary counter that counts from 0 to 9 (decade mode).
• Configurable as divide-by-2, divide-by-5, or divide-by-10.
• Automatic reset after reaching 9 in decade configuration.
• Asynchronous master reset inputs for immediate clearing.
• TTL compatible for fast, reliable switching.
• Standard DIP packaging for hobbyist and professional use on breadboards and PCBs.

Operating Modes and Wiring

The 7490 can be wired for different division ratios. Typical modes include:

• Divide-by-2: Use only the appropriate toggle inputs to obtain a divide-by-2 output stage for simple frequency halving.
• Divide-by-5: Configure the internal feedback so the counter resets after five pulses for divide-by-5 operation.
• Divide-by-10 (decade): Standard decade mode counts 0 to 9 and resets automatically to 0, commonly used in decimal counting and display driving.

Common Applications

• Digital clocks and timers
• Frequency counters and frequency division
• Event counters and sequence generators
• Driving seven-segment displays (with suitable decoder/driver)
• Educational projects and learning digital electronics

Benefits for Engineers and Hobbyists

• Easy prototyping: standard DIP package fits breadboards and sockets for quick experimentation.
• Versatile: supports multiple division modes for a wide range of circuit designs.
• Robust and well-understood: widely used in education and legacy designs, with plenty of reference circuits available.

Getting Started: Tips and Best Practices

• Power supply: use a stable 5V TTL-compatible supply and follow recommended decoupling near the IC.
• Resets and initialization: use the asynchronous master reset inputs to set the starting count reliably.
• Interfacing: pair with TTL logic gates or a 7-segment decoder when driving displays.
• Prototyping: DIP packaging makes socketing easy; avoid hot-swapping without proper power handling.

Ordering and Use

The 7490 Decade Counter IC (DIP) is a fundamental component for anyone building sequential logic, counting circuits, or timing systems. It is suitable for students, hobbyists, and professional engineers who need a simple, configurable decade counter in a prototyping-friendly package.

Note: Images are for illustration purposes only.
