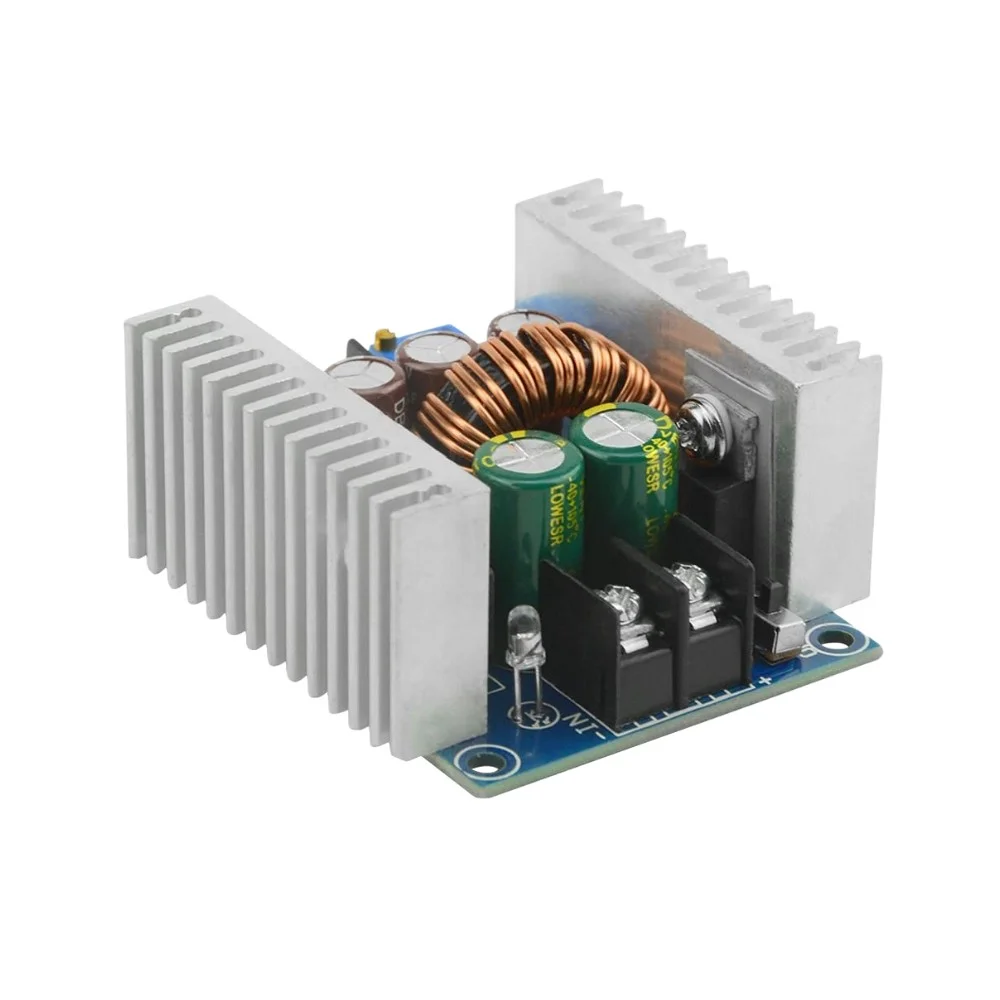

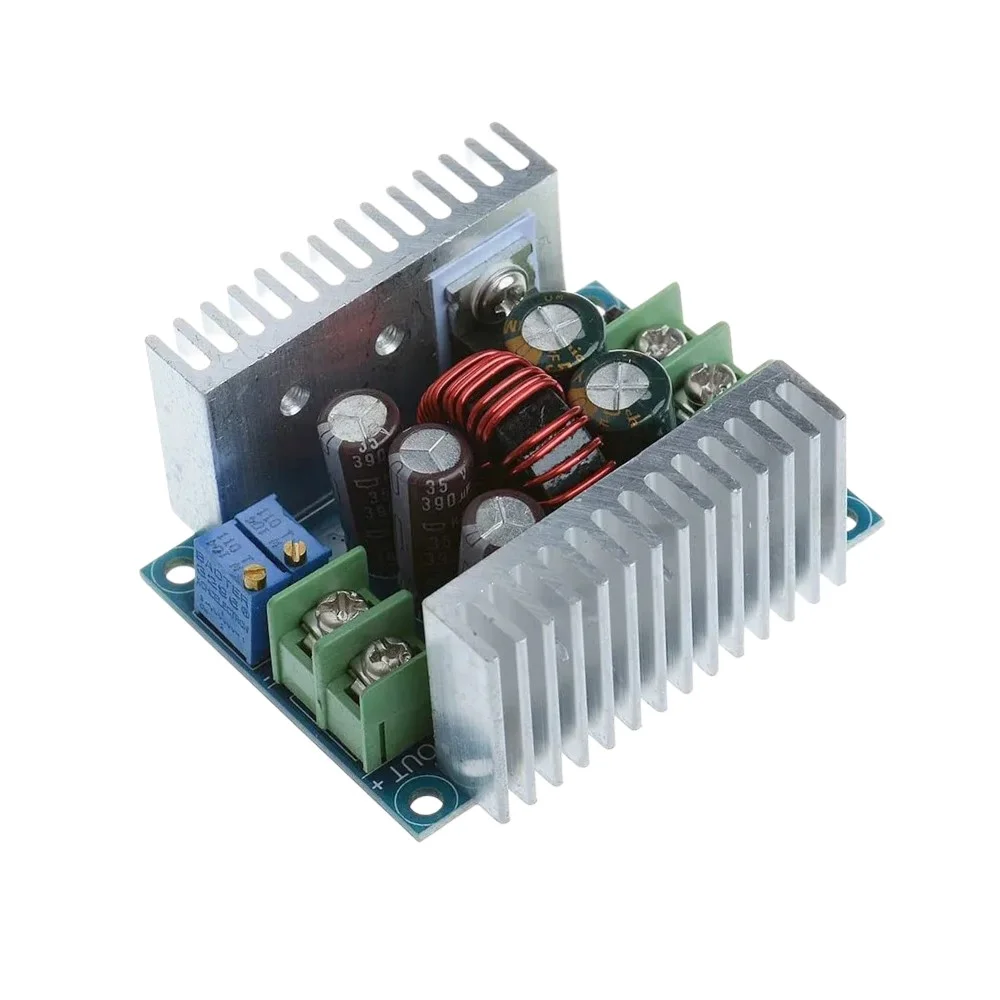

The 20A 300W High-Power DC-DC Buck Converter Module is a robust and efficient voltage regulator designed to step down higher DC voltages (6–40V) to a lower adjustable output (1.2–36V). Built for high-current applications, this module is ideal for powering motors, LED systems, battery charging setups, and other demanding electronics.
With high efficiency and adjustable output, it ensures stable voltage regulation while minimizing heat loss.
Key Features
- Wide Input Voltage Range: Supports 6V to 40V DC
- Adjustable Output Voltage: 1.2V to 36V DC
- High Current Capability: Up to 20A peak (10–15A recommended with cooling)
- High Power Output: Up to 300W
- Efficient Buck Conversion: Up to ~95% efficiency
- Dual Potentiometers (in some variants): Voltage and current adjustment
- Large Heat Sink: Improved thermal performance
- Stable Output: Suitable for sensitive electronics
Technical Specifications
- Module Type: DC-DC Step-Down (Buck Converter)
- Input Voltage: 6V – 40V DC
- Output Voltage: 1.2V – 36V DC (adjustable)
- Output Current:
- Max: 20A (with strong cooling)
- Recommended: 10–15A continuous
- Output Power: Up to 300W
- Conversion Efficiency: Up to 90–95%
- Switching Frequency: ~150kHz (typical)
- Cooling: Large heat sink (fan recommended for high load)
- Protection: May include overcurrent / thermal protection (model dependent)
Working Principle
This module uses a buck (step-down) switching regulator topology:
- A high-frequency switch rapidly turns ON/OFF
- Energy is stored in an inductor and released smoothly
- Output voltage is regulated by adjusting the duty cycle
- A feedback loop maintains constant output voltage
Result: Lower voltage output with high efficiency and minimal heat loss
Applications
- High-power DC motor control systems
- Battery charging (Li-ion, lead-acid)
- LED drivers and lighting systems
- Solar power systems
- DIY power supplies
- Robotics and automation
- CNC machines and embedded systems
Advantages
- High efficiency reduces heat loss
- Handles high current loads
- Adjustable voltage for flexible use
- Compact compared to linear regulators
- Reliable for continuous operation
Usage Tips (Important)
- Always set output voltage before connecting load
- Use thick wires for high current connections
- Add a cooling fan for loads above 10A
- Ensure input voltage > output voltage
- Avoid short circuits during operation
- Mount properly for heat dissipation
Typical Use Case Example
- Input: 24V battery
- Output: 12V regulated supply
- Used to power motors, LED strips, or embedded systems
