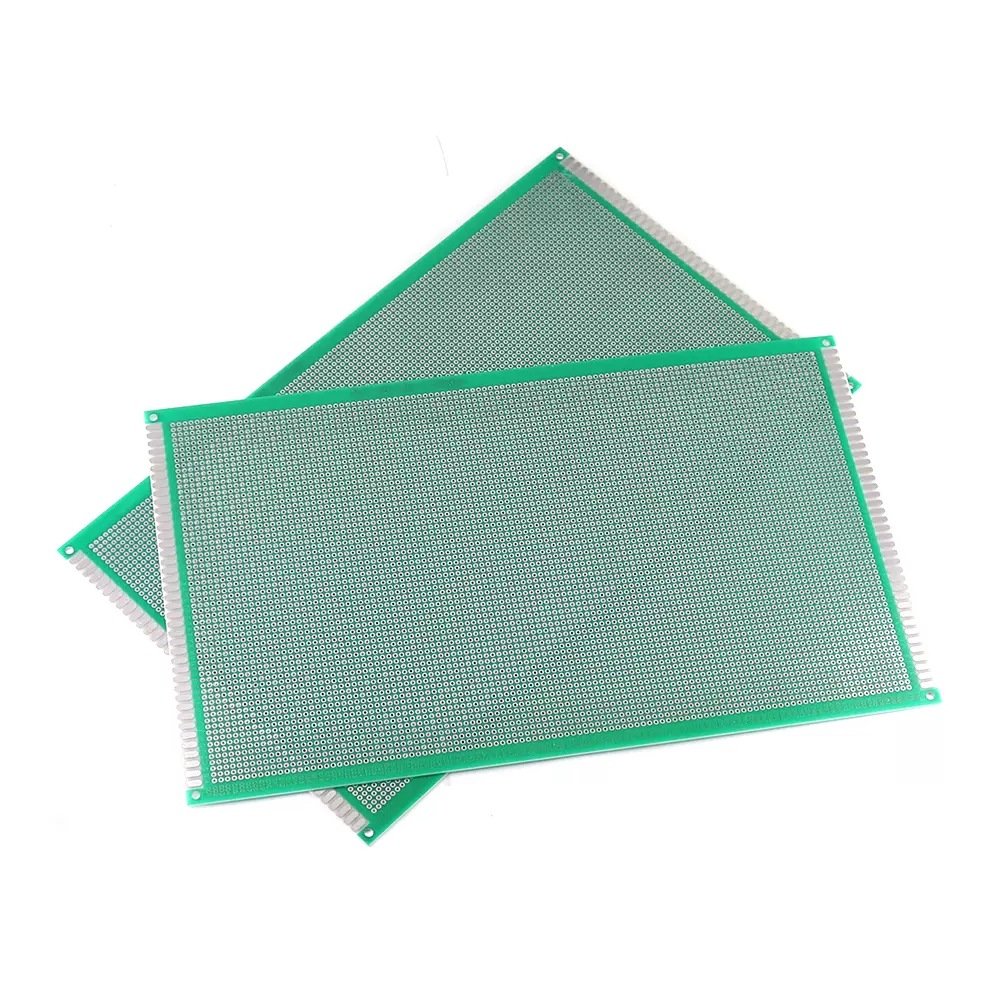

The 18x30cm Double-Sided Fiber Glass Veroboard is an extra-large, professional-grade PCB prototyping board designed for building highly complex, large-scale, and permanent electronic circuits. Manufactured using premium FR4 fiberglass, it offers excellent durability, heat resistance, and structural stability, making it suitable for demanding applications.
With copper pads on both sides, this board allows advanced routing, higher circuit density, and improved layout flexibility—ideal for engineers, advanced hobbyists, and industrial prototyping.
Key Features
- Double-Sided Copper Pads: Enables routing on both sides for complex circuit designs
- FR4 Fiber Glass Material: Strong, heat-resistant, and long-lasting
- Extra-Large Size (18x30cm): Perfect for large and multi-stage projects
- Standard 2.54mm Pitch: Compatible with ICs, connectors, and standard components
- Green Solder Mask: Provides insulation and reduces risk of short circuits
- Pre-Drilled Holes: Easy component placement and soldering
- Professional Build Quality: Suitable for industrial and advanced prototyping
Technical Specifications
- Board Type: Veroboard / Perfboard
- Dimensions: 18 x 30 cm (180 x 300 mm)
- Material: FR4 Fiber Glass
- Copper Layer: Double-sided
- Hole Pitch: 2.54 mm (0.1 inch)
- Hole Diameter: ~1 mm (typical)
- Board Thickness: ~1.6 mm
- Surface Finish: HASL or equivalent
- Color: Green
Working Structure and Design
The double-sided veroboard features a sophisticated structure that maximizes circuit design flexibility:
- Each hole is surrounded by copper pads on both sides
- Components are inserted and soldered securely
- Connections can be made using:
- Solder bridges
- Jumper wires
- Dual-layer routing for complex circuits
This provides flexibility similar to custom PCB layouts while maintaining ease of prototyping.
Applications and Use Cases
This professional-grade veroboard is perfect for a wide range of demanding electronic projects:
- Large-scale Arduino and embedded systems
- Industrial automation circuits
- Power electronics and high-current designs
- Audio systems and amplifiers
- Robotics and multi-module systems
- Research and development projects
Advantages of Double-Sided FR4 Veroboard
- Massive working area for very complex circuits
- Strong and durable FR4 construction
- Double-sided routing capability
- Reliable long-term connections
- Suitable for professional and industrial use
Usage Tips and Best Practices
- Plan layout carefully due to large size
- Use thick wires or copper strips for high-current paths
- Maintain safe spacing for high-voltage sections
- Avoid excessive heat to protect pads
- Clean the board after soldering for a professional finish
Why Choose FR4 Double-Sided Veroboard?
The FR4 fiber glass material offers superior performance compared to standard phenolic boards. With excellent thermal stability, mechanical strength, and electrical insulation properties, this veroboard can handle high-temperature soldering and demanding operational conditions. The double-sided copper pads provide maximum routing flexibility, allowing you to create professional-quality prototypes that can serve as permanent solutions for your electronic projects.
Note: Images are for Illustration Purposes Only.
