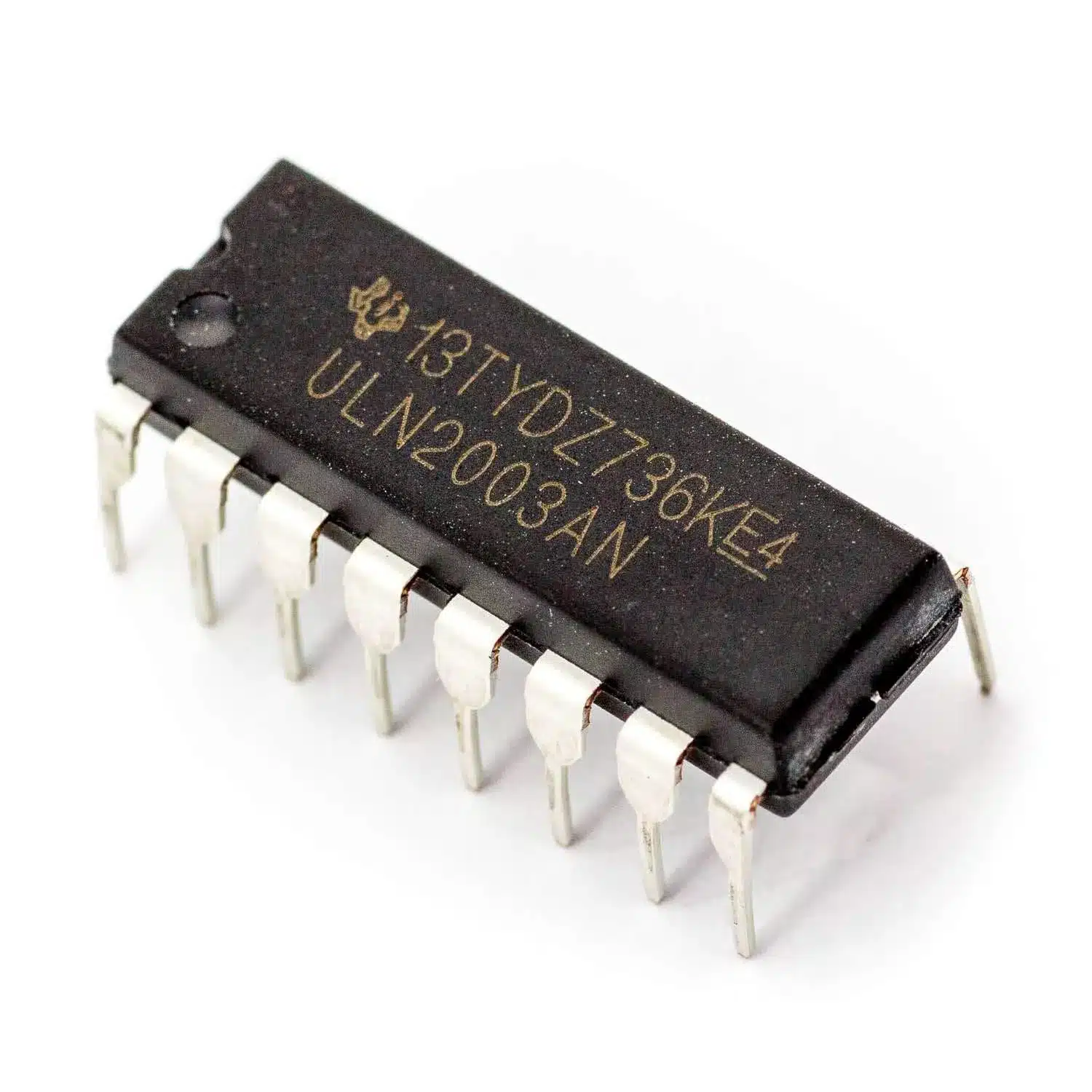

ULN2003 Stepper Motor Driver IC (DIP) Overview
The ULN2003 Stepper Motor Driver IC (DIP) is a versatile Darlington transistor array designed to drive inductive and high-current loads. With seven matched Darlington channels, integrated clamp diodes, and a breadboard-friendly DIP package, it is a go-to choice for students, hobbyists, and engineers building motor driver, relay, and switching circuits.
Why Choose the ULN2003?
- Drive multiple loads directly from microcontrollers and logic circuits
- Compact single-chip solution for multi-channel switching tasks
- Reliable protection for inductive loads thanks to built-in freewheeling diodes
- Easy to prototype with standard DIP footprint
Key Features
- Seven Darlington transistor arrays in one IC
- Each channel can sink up to 500 mA
- High voltage tolerance up to 50 V
- Built-in freewheeling diodes for inductive load protection
- Open-collector outputs compatible with TTL and CMOS logic
- Standard DIP package for easy prototyping and PCB use
Technical Specifications
- Channels: 7 Darlington pairs
- Continuous current per channel: up to 500 mA (observe thermal limits)
- Peak voltage rating: up to 50 V
- Output type: Open-collector
- Protection: Integrated clamp diodes for inductive loads
- Package: Standard DIP suitable for breadboards and PCBs
Typical Applications
- Stepper motor driver circuits
- Relay and solenoid drivers
- LED and display drivers
- High-current and high-voltage switching
- Interfacing microcontrollers with inductive loads
- Robotics, automation, and embedded projects
Basic Connection Guidelines
- Connect logic inputs to the ULN2003 inputs from your microcontroller or logic source.
- Connect the ULN2003 outputs to the negative side of the loads; the IC sinks current to ground.
- Connect the load supply positive terminal to the load common. Tie the ULN2003 diode common pin to the load supply positive when using inductive loads to enable internal freewheeling protection.
- Ensure a common ground between the ULN2003 and the driving microcontroller or control logic.
- Observe thermal limits and use heat sinking or limit duty cycles for sustained high-current use.
Design Tips and Best Practices
- Place decoupling capacitors on the load supply to reduce transients.
- Use external flyback diodes if your layout or load characteristics require additional protection.
- For stepper motors, use proper current limiting and sequencing from the controller to avoid overheating.
- Check power dissipation per channel and consider paralleling outputs or using a driver with higher continuous current ratings for heavy loads.
Compatibility and Prototyping
The ULN2003 is compatible with common microcontroller logic levels and works well on breadboards and prototyping PCBs due to its standard DIP package. It integrates seamlessly with Arduino, Raspberry Pi (with appropriate level shifting), PIC, AVR, and other logic families.
Ordering and Part Information
Order the ULN2003 Stepper Motor Driver IC in a standard DIP package for easy prototyping and integration into your projects. Check manufacturer datasheets for pinouts, absolute maximum ratings, and thermal characteristics before designing into production systems.
Note: Images are for Illustration Purposes Only
