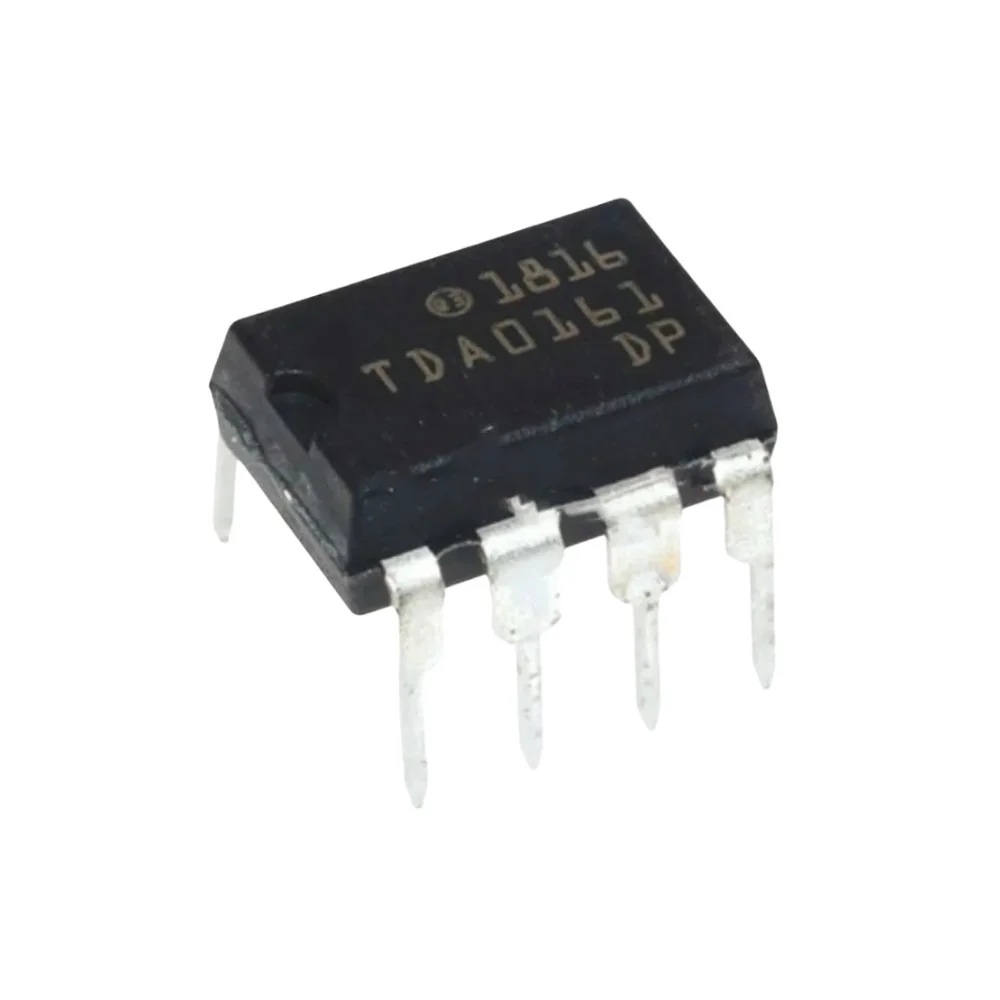

TDA0161 Metal Detection Proximity Detector IC (DIP)

TDA0161 Metal Detection Proximity Detector IC Overview

The TDA0161 Metal Detection Proximity Detector IC is a specialized integrated circuit engineered for metal detection and proximity sensing applications. Based on the principle of eddy current loss detection, this IC enables inductive sensors to accurately detect metallic objects without any physical contact. Its reliable performance and straightforward circuit implementation make it a go-to solution for engineers, hobbyists, and industrial designers alike.

Key Features

• Metal Detection Capability: Detects the presence of ferrous and non-ferrous metallic objects using inductive sensing
• Proximity Detection: Suitable for non-contact sensing applications across a range of distances
• Wide Operating Voltage Range: Supports supply voltages from 4.5V to 35V for flexible integration
• Adjustable Sensitivity: External components allow precise tuning of the detection range
• High Reliability: Designed for stable operation in demanding industrial environments
• DIP Package: Dual In-line Package format ensures easy prototyping, soldering, and PCB design
• Low External Component Requirement: Minimal supporting components needed for a functional circuit

Technical Specifications

• IC Type: Metal Detector / Proximity Detector
• Technology: Analog Inductive Detection
• Package Type: DIP (Dual In-line Package)
• Supply Voltage (VCC): 4.5V to 35V
• Operating Current: Low current consumption
• Output Type: Analog / Comparator Output
• Detection Method: Eddy current losses in LC oscillator
• Operating Temperature Range: -25°C to +85°C

Working Principle of the TDA0161

The TDA0161 operates using an LC oscillator circuit connected to an external coil (inductor). When a metal object comes near the coil, the following sequence occurs:

• It induces eddy currents in the metal object
• These currents cause energy loss in the LC oscillator
• The amplitude of oscillation decreases measurably
• The IC detects this change and switches the output state accordingly

This mechanism allows accurate, reliable detection of metallic objects without any direct contact, making it ideal for both industrial and hobbyist applications.

Pin Configuration (Typical DIP Package)

Pin functions may vary slightly depending on the manufacturer.

• VCC: Power supply input
• GND: Ground
• Oscillator Input/Output: Connection point for the LC tank circuit (coil and capacitor)
• Output: Detection signal output
• Reference/Control Pins: Used for sensitivity adjustment

Applications of the TDA0161 Proximity Detector IC

• Metal detector circuits
• Industrial proximity sensors
• Object counting systems
• Security and alarm systems
• Automation and conveyor systems
• DIY electronics and Arduino projects

Advantages

• Non-contact metal detection for safe and reliable operation
• Adjustable detection sensitivity for varied applications
• Simple circuit design with minimal external components
• Wide voltage compatibility from 4.5V to 35V
• Suitable for harsh industrial environments with stable performance

Usage Tips for Best Performance

• Use a properly designed coil (inductor) to maximize detection sensitivity
• Shield the circuit from electromagnetic interference for stable and accurate readings
• Fine-tune detection sensitivity using external resistors and capacitors
• Ideal for detecting both ferrous and non-ferrous metals across various applications

Note: Images are for Illustration Purposes Only.
