RGB Tri-Color Common Cathode LED 4-Pin (5mm)

The RGB Tri-Color Common Cathode LED 4-Pin (5mm) is a versatile light-emitting diode that combines Red, Green, and Blue (RGB) LEDs within a single 5mm package. By controlling the intensity of each color channel, this LED can generate a wide spectrum of colors, making it ideal for decorative lighting, status indicators, Arduino projects, electronic learning, and creative DIY applications.

This LED features a Common Cathode configuration, where the negative terminal is shared among all three color LEDs. The individual Red, Green, and Blue pins are controlled separately, allowing precise color mixing through digital outputs or PWM (Pulse Width Modulation) signals from microcontrollers.

Key Features of RGB Common Cathode LED

• Bright RGB Tri-Color LED in a compact 5mm package
• Common Cathode configuration for easy interfacing with microcontrollers
• Four-pin design with separate Red, Green, and Blue control pins
• Capable of producing millions of color combinations through additive color mixing
• Fully compatible with Arduino, Raspberry Pi, and other microcontroller projects
• Low power consumption for energy-efficient operation
• Fast switching response for dynamic lighting effects
• Long operational lifespan with reliable performance
• Ideal for decorative, educational, and indicator applications
• Through-hole mounting for secure installation

Technical Specifications

• Product Type: RGB LED
• LED Type: Tri-Color
• Configuration: Common Cathode
• Package Size: 5mm
• Number of Pins: 4
• Colors: Red, Green, Blue
• Lens Type: Clear / Diffused (varies by model)
• Operating Voltage:
  • Red: Typically 1.8V – 2.2V
  • Green: Typically 2.8V – 3.3V
  • Blue: Typically 2.8V – 3.3V
• Forward Current: Typically 20mA per color
• Viewing Angle: Varies by manufacturer
• Mounting Type: Through-Hole
• Operating Temperature: Depends on manufacturer specifications

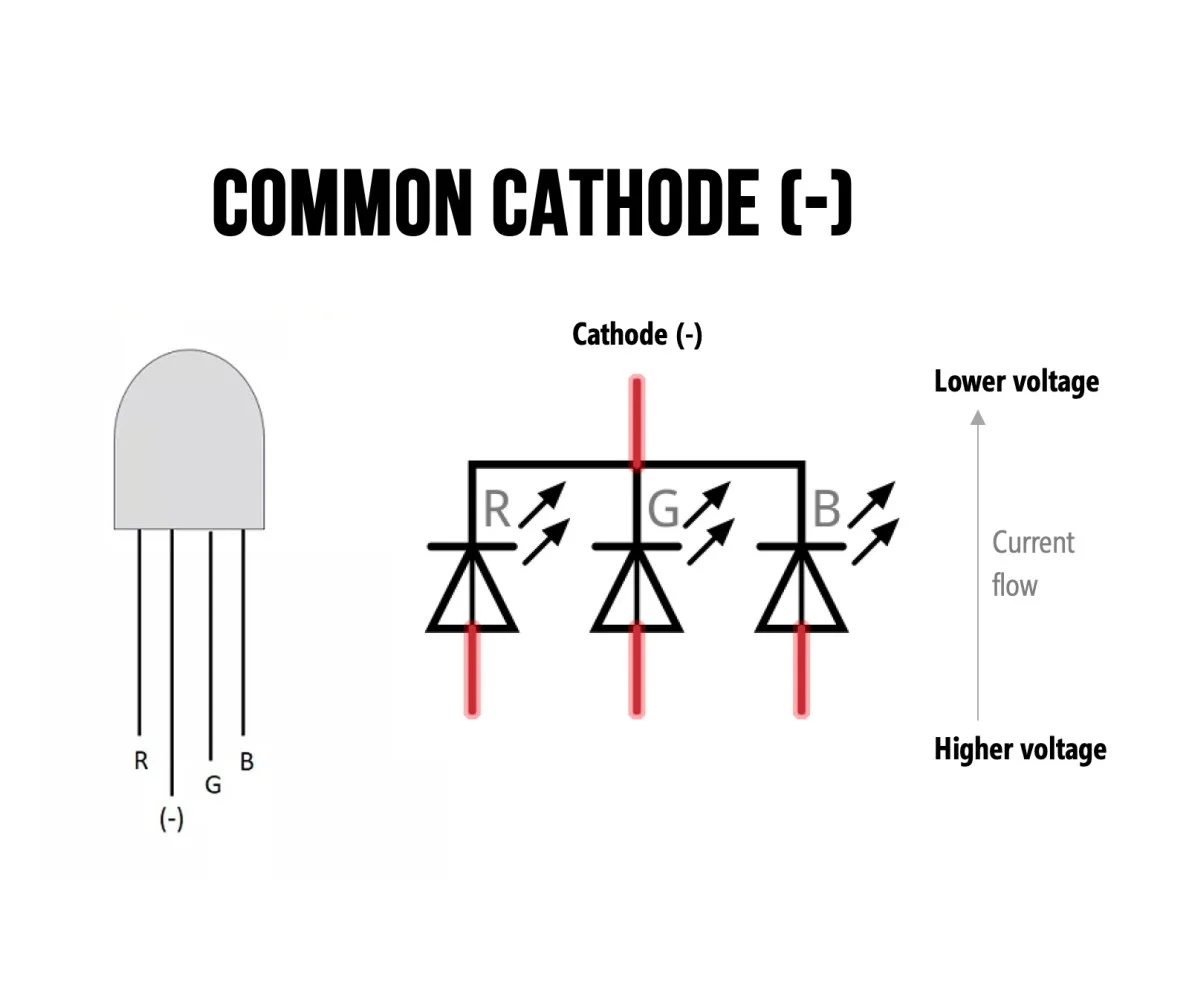

Pin Configuration and Wiring

The RGB Common Cathode LED consists of four pins with the following configuration:

• Pin 1: Common Cathode (-) – Shared negative terminal
• Pin 2: Red Anode (+) – Red color control
• Pin 3: Green Anode (+) – Green color control
• Pin 4: Blue Anode (+) – Blue color control

To illuminate a specific color, connect the common cathode pin to GND (ground) and apply a HIGH signal to the desired color pin through an appropriate current-limiting resistor. The common cathode configuration makes it easy to control with standard microcontroller GPIO pins.

How RGB Common Cathode LED Works

An RGB LED contains three individual LEDs – Red, Green, and Blue – inside a single package. By varying the brightness of each color using PWM (Pulse Width Modulation) signals, different colors can be generated through additive color mixing principles.

Color Mixing Examples

The RGB Common Cathode LED can produce a full spectrum of colors through combinations:

• Red + Green = Yellow
• Red + Blue = Magenta
• Green + Blue = Cyan
• Red + Green + Blue = White
• Varying intensities = Millions of color shades

This allows a single LED to create a wide range of lighting effects and color patterns, making it perfect for dynamic displays and mood lighting applications.

Applications of RGB Tri-Color LED

• Arduino and microcontroller projects for beginners and advanced users
• Raspberry Pi LED control projects and IoT applications
• DIY electronics projects and maker creations
• RGB lighting effects and color changing displays
• Status and notification indicators for equipment
• Educational electronics experiments and STEM learning
• Decorative lighting systems for home and events
• Mood lighting applications and ambient displays
• Interactive displays and user interfaces
• Color mixing demonstrations for teaching purposes
• Wearable electronics and LED accessories
• Model building and hobby electronics

Advantages of Common Cathode RGB LED

• Multiple colors from a single compact LED component
• Simple control using microcontrollers like Arduino and Raspberry Pi
• Energy efficient operation with minimal power consumption
• Compact and lightweight 5mm design saves space
• Long service life with reliable performance
• Suitable for PWM brightness control and smooth color transitions
• Easy breadboard and PCB integration for prototyping
• Cost-effective solution compared to using three separate LEDs
• Common cathode configuration simplifies circuit design
• Wide compatibility with various electronic platforms

Usage Tips and Best Practices

• Always use a current-limiting resistor (typically 220Ω – 330Ω) with each color pin to prevent LED damage
• Verify the common cathode pin location before wiring your circuit
• Use PWM outputs from your microcontroller for smooth color transitions and precise brightness control
• Avoid exceeding the maximum forward current rating of 20mA per color
• Test your RGB LED with a multimeter if pin configuration is unclear
• Suitable for both breadboard prototyping and permanent PCB installations
• Calculate proper resistor values based on your supply voltage
• Consider using a dedicated LED driver for multiple RGB LEDs
• Program color fading effects using PWM for professional-looking results

Why Choose RGB Common Cathode LED 5mm?

The RGB Tri-Color Common Cathode LED 4-Pin (5mm) is an essential component for anyone working with electronics, whether you’re a beginner learning Arduino programming or an experienced maker building complex lighting systems. Its common cathode configuration makes it particularly easy to interface with microcontrollers, requiring only three GPIO pins for color control plus a shared ground connection.

With the ability to produce millions of colors from a single compact LED, this component offers exceptional versatility for creating eye-catching visual effects, informative status indicators, and interactive displays. The 5mm package size is perfect for panel mounting, breadboard prototyping, and PCB integration, making it suitable for virtually any project scale.

Whether you’re building a color-changing mood lamp, creating notification indicators for your smart home project, or teaching students about additive color mixing, the RGB Common Cathode LED provides an affordable and reliable solution that delivers professional results.

Note: Images are for Illustration Purposes Only.
