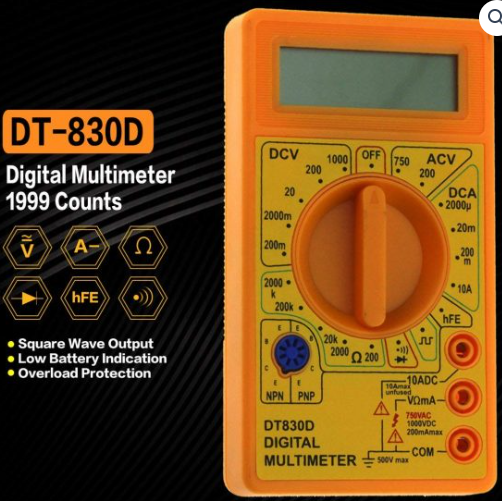

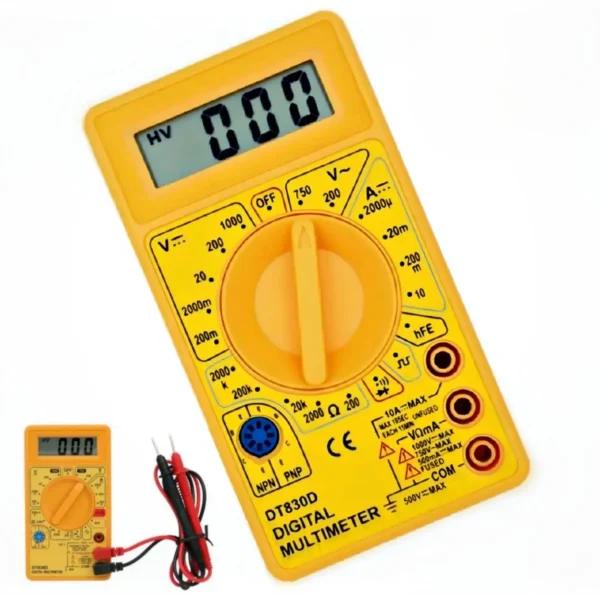

Digital Multimeter DT830D

Digital Multimeter DT830D is an electronic measuring instrument that combines several measurement functions in one unit. It includes basic features such as the ability to measure voltage, current, and resistance. Digital multimeters (DMM, DVOM) display the measured value in numerals, and may also display a bar of a length proportional to the quantity being measured. A multimeter can also be a handheld device useful for basic fault finding and field service work, or a bench instrument which can measure to a very high degree of accuracy. They can be used to troubleshoot electrical problems in a wide array of industrial and household devices such as electronic equipment, motor controls, domestic appliances, power supplies, and wiring systems.

Features of Digital Multimeter DT830D:

• Simple and easy, suitable for beginners
• With double fuse, safe and reliable
• 3 1/2 Digital LCD display, maximum display 1999.
• Diode and transistor testing, continuity and buzzer measurement.
• With test probe leads, a wide range of application.
• It is also a perfect tool for the laboratory, factory and home.
• With large LCD display, convenient to read data.
• Low battery indication, continuity buzzer and overload protection.

Specifications of Digital Multimeter DT830D:

1. DCV: 200m-2000m-20-200-1000V±0.5%
2. ACV: 200-750V±1.0%
3. DCA: 20u-2000u-20m-200m-10A±1.8%
4. Resistance: 200-2000-20K-200K-2000KΩ ±1.0%
5. LCD size: 49x16mm
6. Max display: 1999
7. Diode test: yes
8. Transistor test: yes
9. Continuity buzzer test: Yes (Another Low price product DT830B is without buzzer function)
10. Safety ensures: Overload protection function(Other Low price product without this function)
11. Square wave output: yes
12. Power supply: one 9V 6F22 battery
13. Product size: 125×70×29mm
14. Product weight: about 128g

Package Includes:

• 1 x Digital Multimeter DT830D
