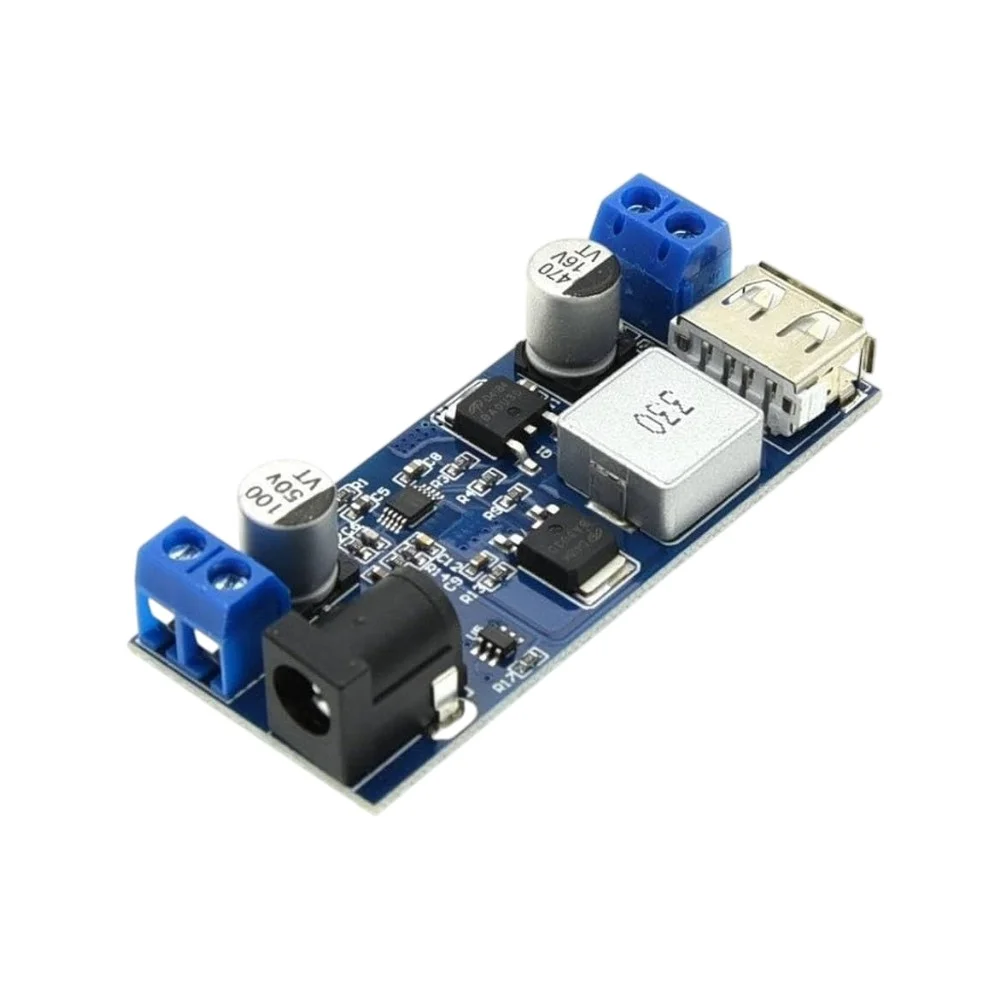

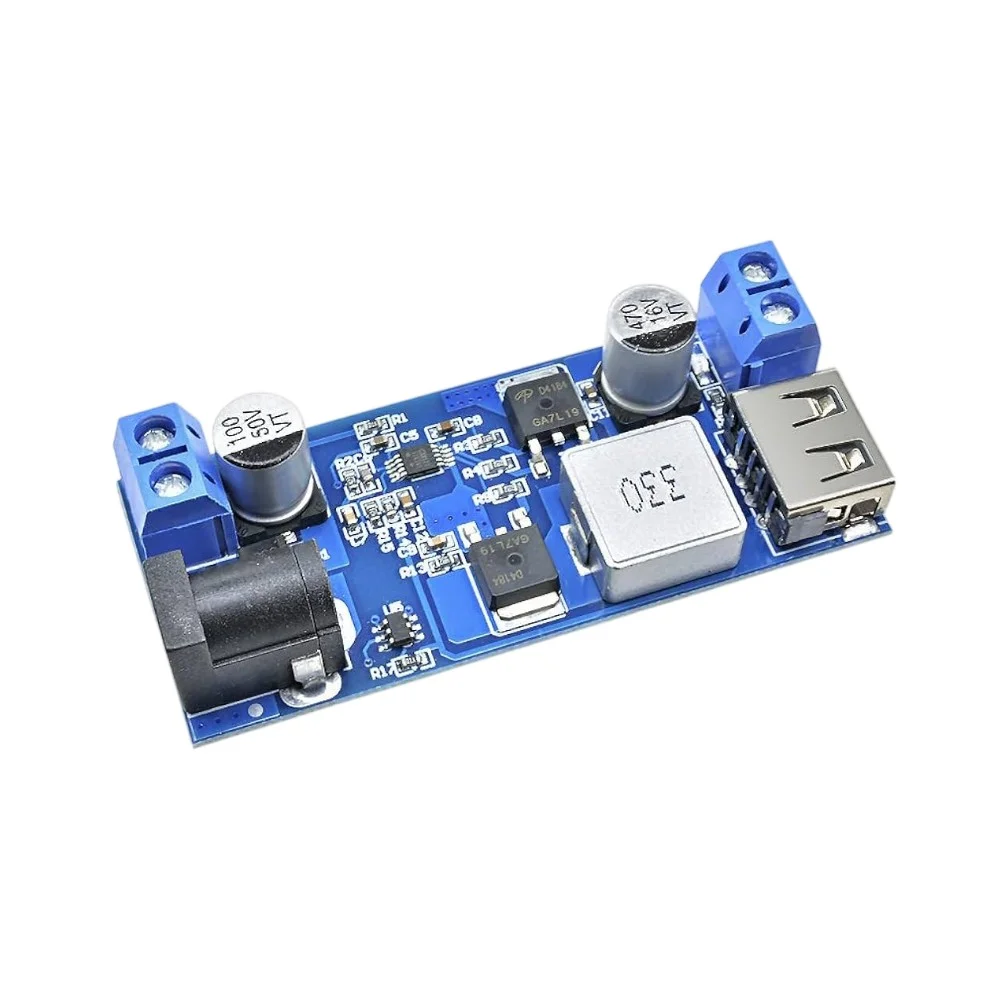

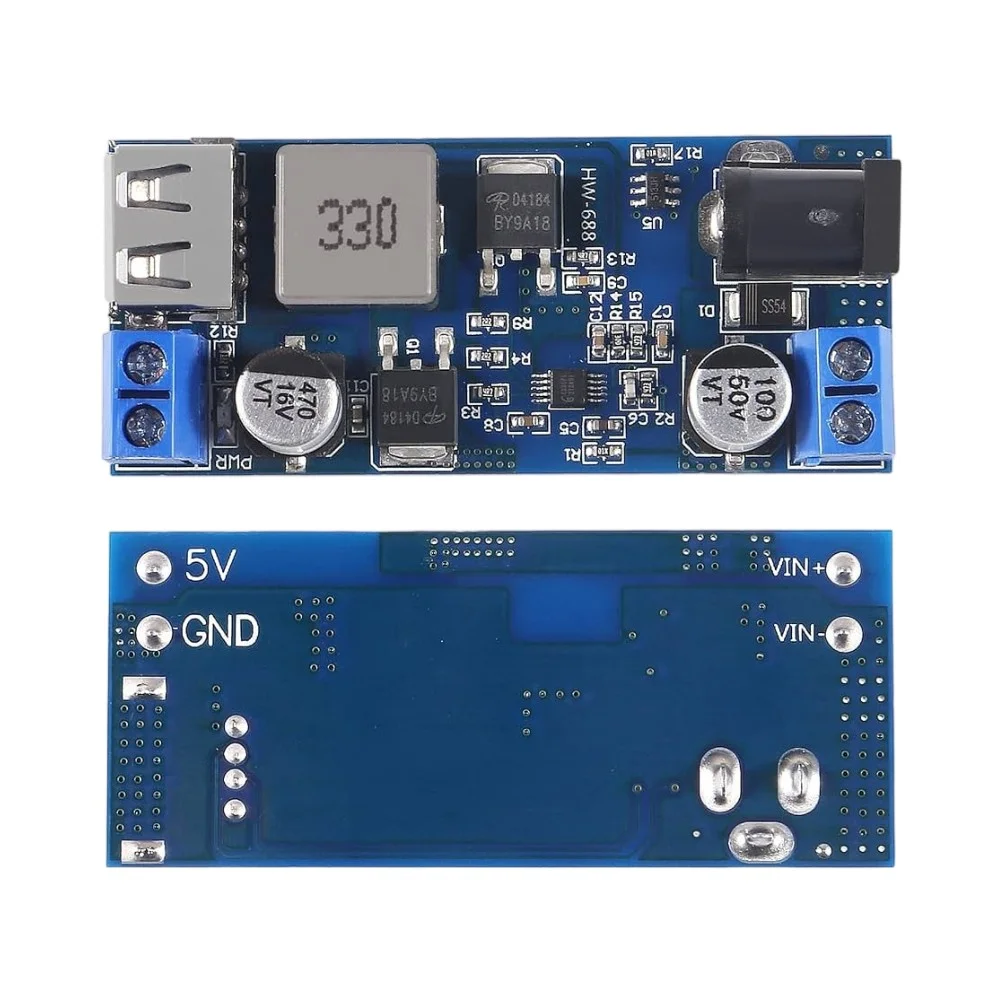

DC-DC 24V/12V To 5V 5A USB Step-Down Buck Converter Charging Module

The DC-DC 24V/12V to 5V 5A USB Buck Converter Module is a high-efficiency step-down voltage regulator designed to convert 12V or 24V DC input into a stable 5V output. Equipped with a USB output port, it is ideal for powering and charging mobile devices, microcontrollers, and USB-powered electronics in automotive and industrial environments.

This module is widely used in car systems, solar setups, and embedded projects where reliable 5V power is required.

Key Features

• Wide Input Voltage: Supports both 12V and 24V systems
• Stable 5V Output: Regulated output suitable for USB devices
• High Output Current: Up to 5A (fast charging support)
• USB Output Port: Direct connection for charging devices
• High Efficiency: Up to ~90–95%
• Compact Design: Easy to integrate into projects
• Overcurrent & Overheat Protection: (varies by model)
• Plug-and-Play Operation

Technical Specifications

• Module Type: DC-DC Step-Down (Buck Converter)
• Input Voltage: 9V – 36V DC (supports 12V/24V systems)
• Output Voltage: 5V DC (fixed)
• Output Current:
  • Max: 5A
  • Recommended: 3–4A continuous
• Output Power: Up to ~25W
• Efficiency: Up to 95%
• Output Interface: USB Type-A
• Cooling: Passive (heat sink or airflow recommended for high load)

Working Principle

The module uses a buck converter (step-down) switching regulator:

• High input voltage (12V/24V) is switched at high frequency
• Energy is stored and released through an inductor
• Output is regulated to a stable 5V DC
• USB port provides standardized output for devices

Result: Efficient voltage reduction with minimal heat loss

Applications

• Car USB charger (12V/24V vehicles)
• Solar power systems (battery to USB output)
• Raspberry Pi and Arduino power supply
• Mobile and tablet charging
• Embedded systems and IoT devices
• Industrial control systems

Advantages

• High efficiency with low heat generation
• Direct USB output for convenience
• Supports high current for fast charging
• Compact and easy to install
• Reliable for continuous operation

Usage Tips

• Ensure input voltage is within 9–36V range
• Avoid continuous full load (5A) without cooling
• Use proper wiring for input connections
• Check polarity before connecting
• Add heat dissipation if used in enclosed spaces

Typical Use Case

• Input: 24V battery system
• Output: 5V USB
• Used to power Raspberry Pi, smartphones, or USB gadgets

Note: Images are for Illustration Purposes Only.
