3S 12.6V 60A Li-Ion Cell BMS Charging Protection Module

Availability:

In stock


  • Compatible with 3S (12.6V) Li-Ion and Li-Po battery packs
  • Handles up to 60A continuous discharge current (peak cutoff ~80A)
  • Built-in overcharge (≈4.25V/cell) and over-discharge (≈2.7V/cell) protection
  • Overcurrent and instant short-circuit cutoff for enhanced safety
  • Integrated cell balancing to extend pack life and improve performance
  • Rugged PCB design for high-power applications like e-bikes, scooters, robotics, and solar storage

 450

In stock

Overview: 3S 12.6V 60A Li-Ion Cell BMS Charging Protection Module

The 3S 12.6V 60A Li-Ion Cell BMS Charging Protection Module is a high-power Battery Management System engineered for 3-cell Li-ion and LiPo battery packs. With a full-charge voltage of 12.6V and a 60A continuous discharge rating, this BMS protects and optimizes high-drain battery packs used in e-bikes, scooters, drones, robotics, portable power stations, and solar storage systems.

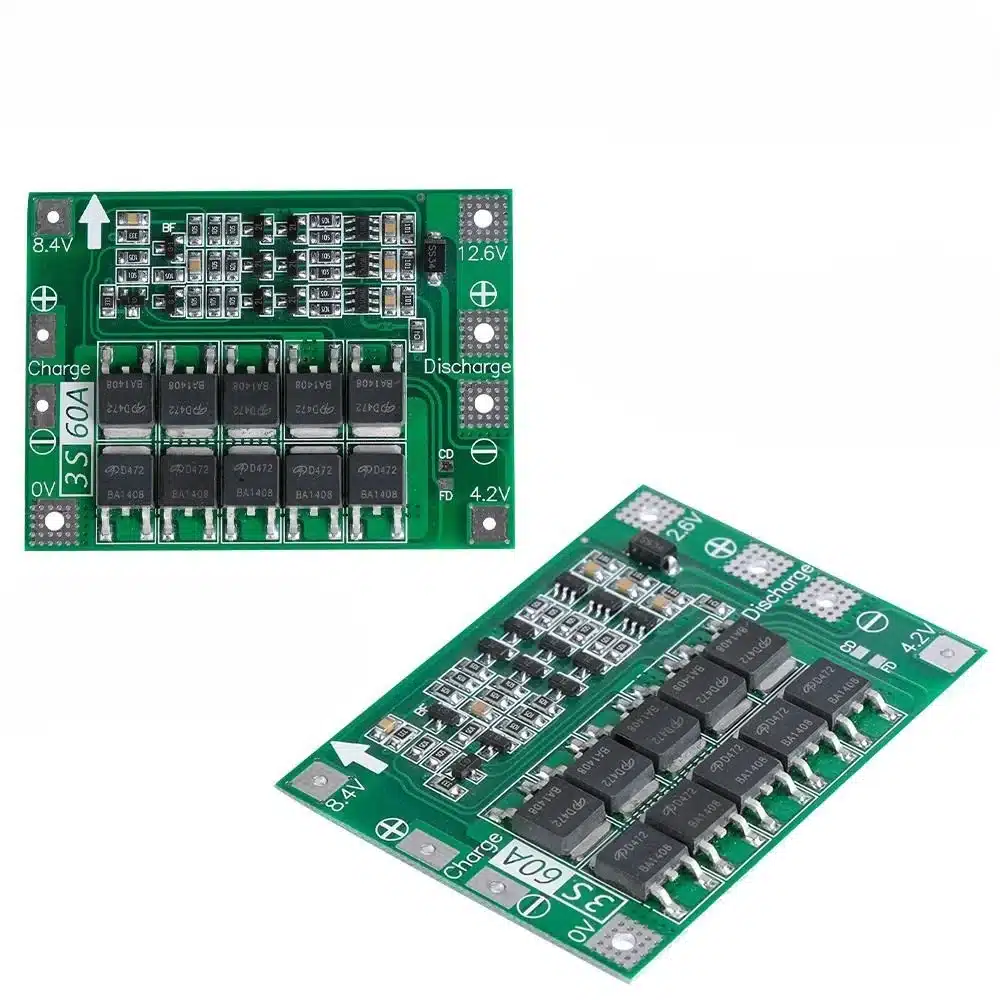

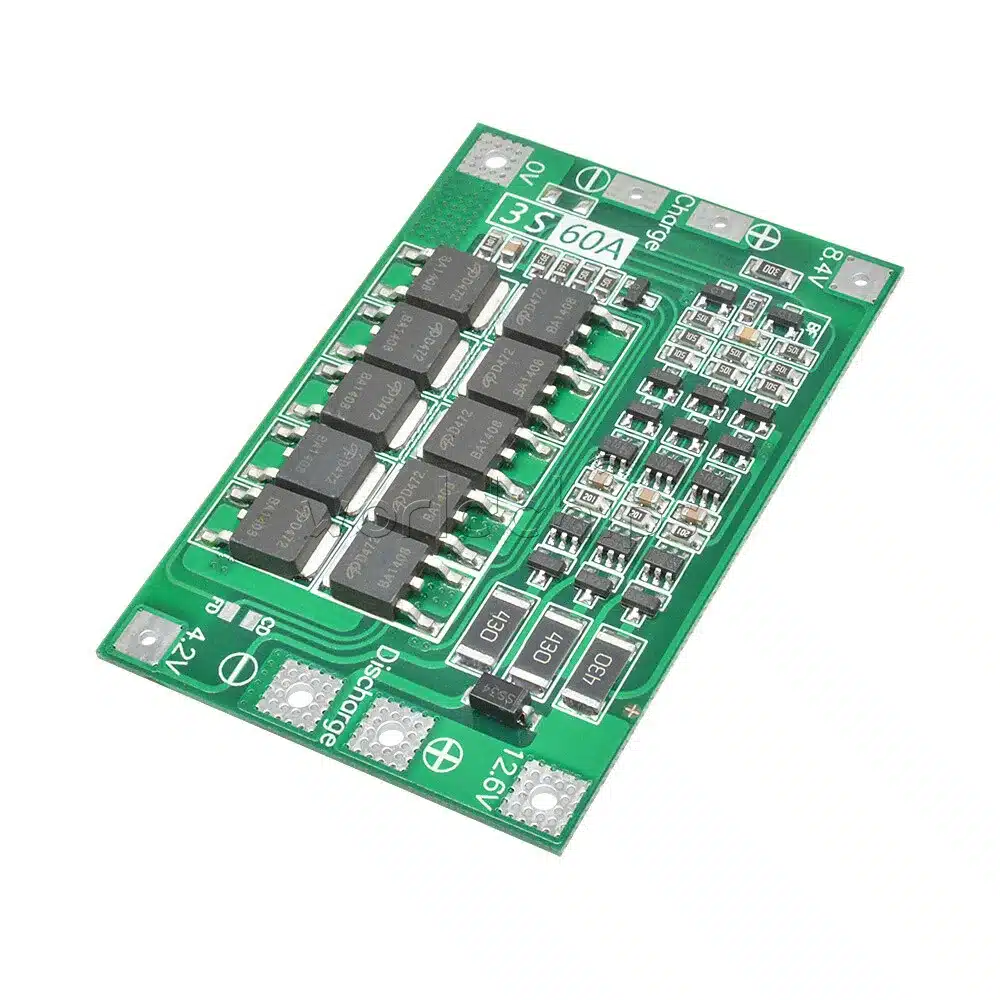

Product Visual: 3S 12.6V 60A BMS Module – Photo

3S 12.6V 60A BMS Module

Key Protections and How They Work

  • Overcharge Protection: Stops charging when any cell exceeds approximately 4.25V to prevent cell damage and thermal risks.
  • Over-discharge Protection: Cuts output when any cell drops below about 2.7V to avoid deep discharge and irreversible capacity loss.
  • Overcurrent Protection: Shuts down output if continuous discharge exceeds 60A; typical peak cutoff near 80A.
  • Short-Circuit Protection: Immediate cutoff to protect the battery and connected load from catastrophic failure.
  • Cell Balancing: Passive balancing keeps all three cells at similar voltages for improved efficiency and longer pack life.
  • Automatic Recovery: The module will restore normal operation automatically once fault conditions clear, eliminating the need for manual resets in most cases.

Key Features and Specifications

  • Designed for 3S (12.6V) Li-Ion / Li-Po battery packs
  • Continuous discharge current: up to 60A
  • Peak cutoff current: around 80A (typical)
  • Overcharge cutoff voltage: ~4.25 ±0.05V per cell
  • Over-discharge cutoff voltage: ~2.7 ±0.1V per cell
  • Supports cell balancing for stable pack performance
  • Operating temperature range: -20°C to +60°C
  • Sturdy PCB design suitable for high-load use
  • Compatible with CC/CV Li-Ion chargers

Applications

  • High-power DIY battery packs and battery assemblies
  • Electric bikes, scooters, hoverboards, and personal mobility devices
  • Solar energy storage and off-grid power systems
  • Drones, robotics, automation, and high-drain IoT projects
  • Portable power stations, inverters, and backup systems

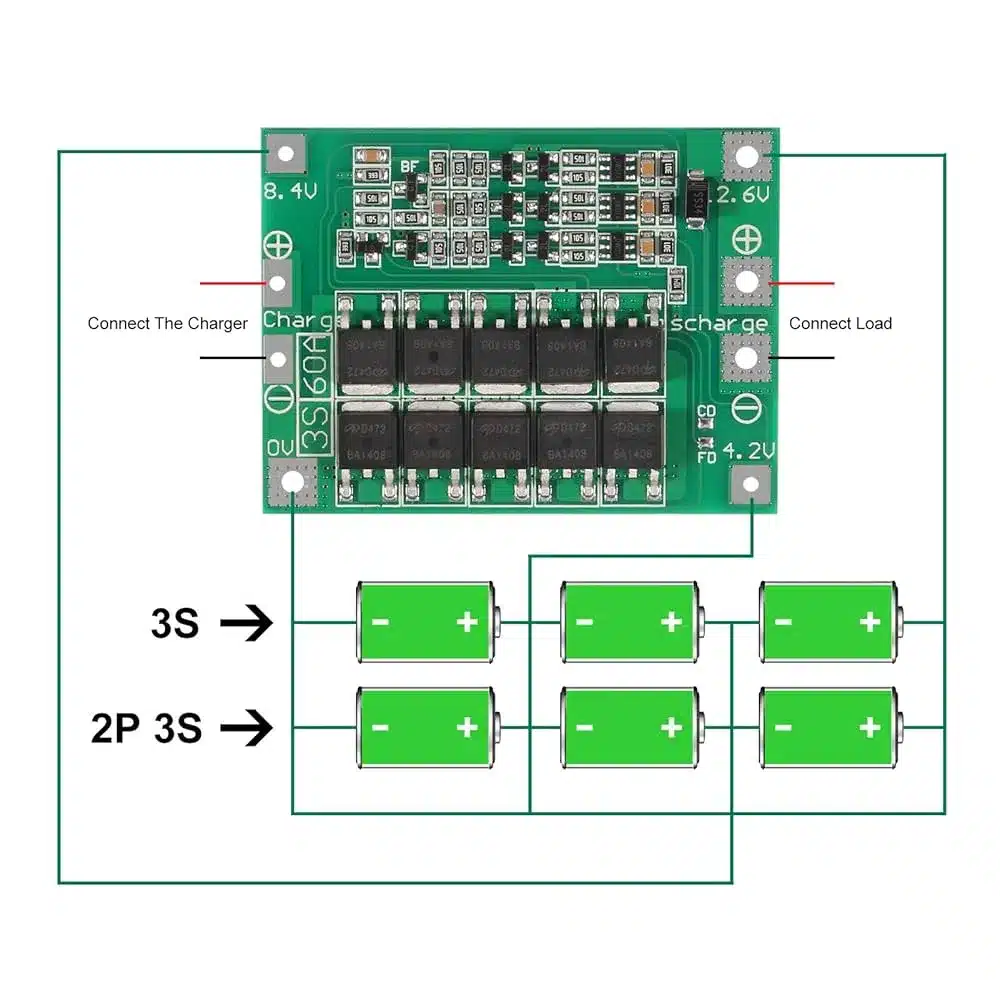

Installation and Wiring Tips

  • Follow proper cell order when connecting B-, B1, B2, B3 and pack positive terminals to avoid damage.
  • Use appropriately rated wires and secure solder joints or connectors to handle continuous 60A current safely.
  • Ensure a reliable connection to balance leads so the cell balancing function stays effective.
  • Keep the BMS mounted on a flat, non-conductive surface with good ventilation to maintain operating temperature.
  • Test under controlled conditions after installation to confirm protection thresholds and correct wiring.

Safety Notes and Compatibility

  • Designed for Li-Ion and LiPo chemistries using CC/CV charging profiles. Do not use with NiMH or lead-acid batteries.
  • Images are for illustration purposes only; check physical pinout and dimensions before final installation.
  • Observe standard battery handling and charging safety practices to minimize risk of fire or injury.

If you need wiring diagrams, BMS pinouts, or help choosing a compatible charger or fuse, contact our support team with your battery pack details and expected load profile.
