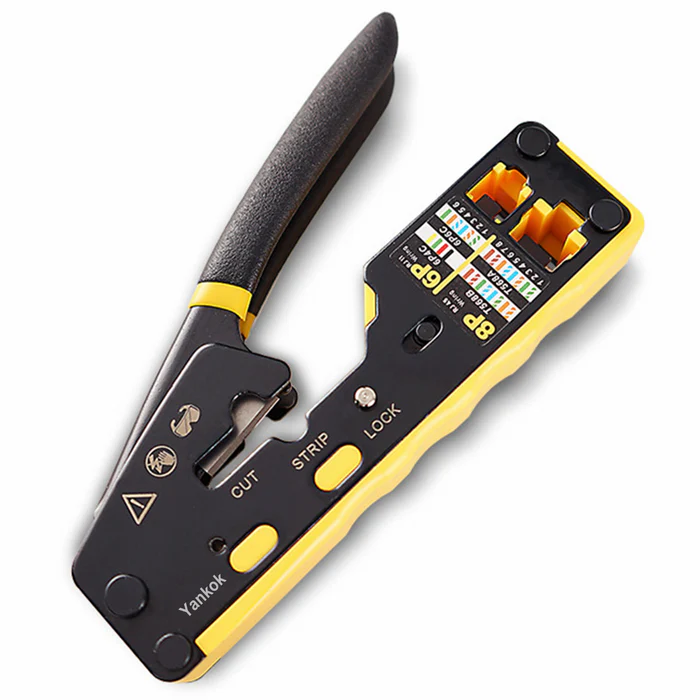

YTH-6088 Pass Through Crimper for RJ45, RJ12 and RJ11 – Overview
The YTH-6088 is a versatile pass through crimper designed for fast, reliable modular-crimp connector installation in both voice and data applications. Engineered to handle a wide range of modular plugs, it delivers consistent crimps for professional network and telephony work.
Key Features
- Pass through crimping for correct wire alignment and secure terminations
- Works with both regular and pass through RJ45 plugs
- Compact, easy-to-operate design suitable for field and shop use
- Durable construction for repeated professional use
Supported Connectors and Standards
- RJ45: Cat 3 / 4 / 5 / 5e / 6 (8×8) (8P8C)
- RJ12: 6-position (6×6) (6P6C)
- RJ11: 4-position (6×4) (6P4C) and 2-position (6×2) (6P2C)
Applications
- Local area network (LAN) installations and repairs
- Punchdown and patch panel termination for Cat5e/Cat6 setups
- Telephony wiring including RJ12 and RJ11 connectors
- Home network, office cabling and field service work
How to Use
- Prepare the cable and strip the jacket to expose wires.
- Arrange wires in the correct order and insert them through the pass-through connector until flush.
- Insert the connector into the crimper until it seats fully.
- Squeeze the crimper firmly to terminate and secure the contacts.
- Inspect the termination and trim any excess conductor protruding from the connector if needed.
Benefits of the YTH-6088 Pass Through Crimper
- Improves termination consistency by allowing wires to pass through for visual verification
- Reduces rework and wiring errors during installations
- Supports a broad range of connector types, making it a single tool for multiple tasks
Technical Notes
The YTH-6088 is intended for use with modular plugs listed above. For best results, use compatible pass-through connectors and standard network cabling. Follow proper wiring standards (for example T568A/T568B) and verify terminations with a cable tester after crimping.
