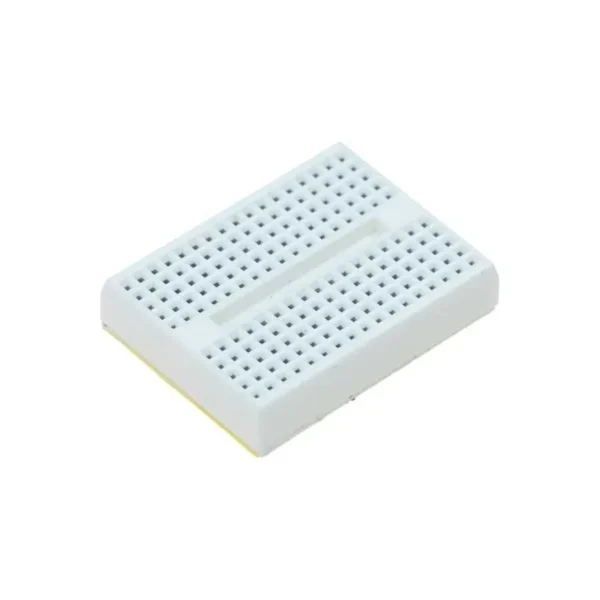

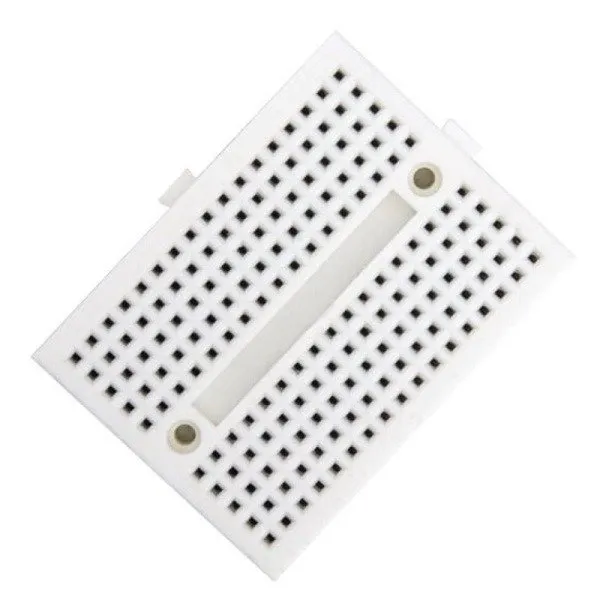

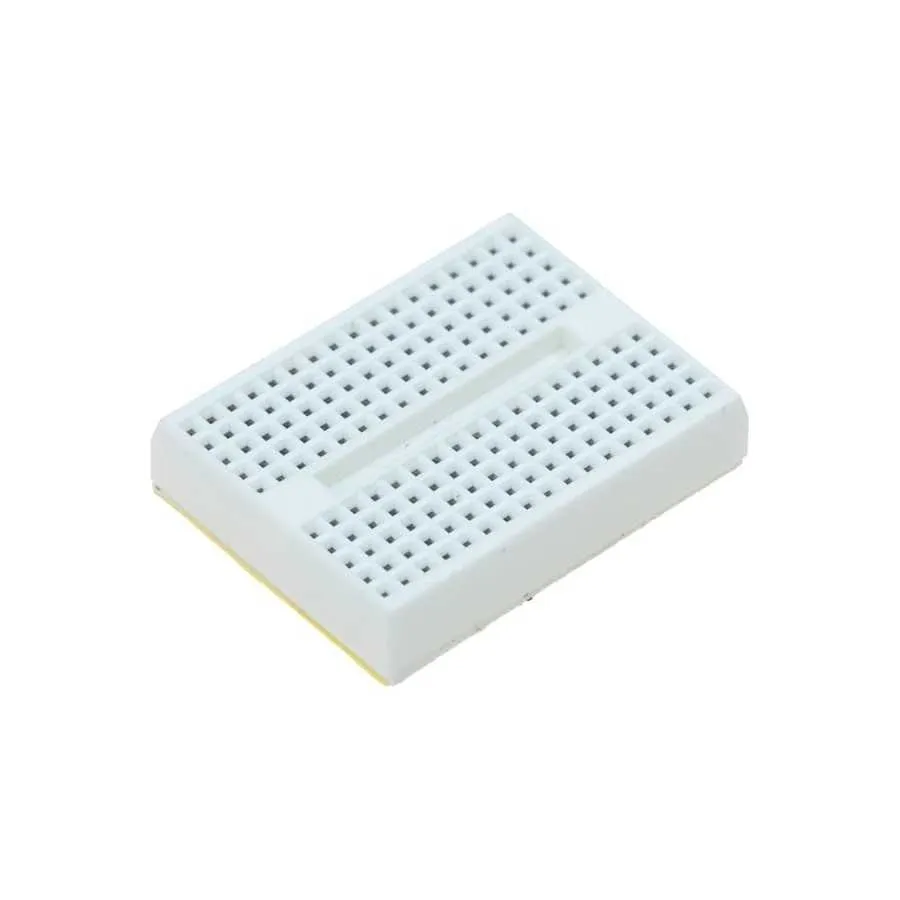

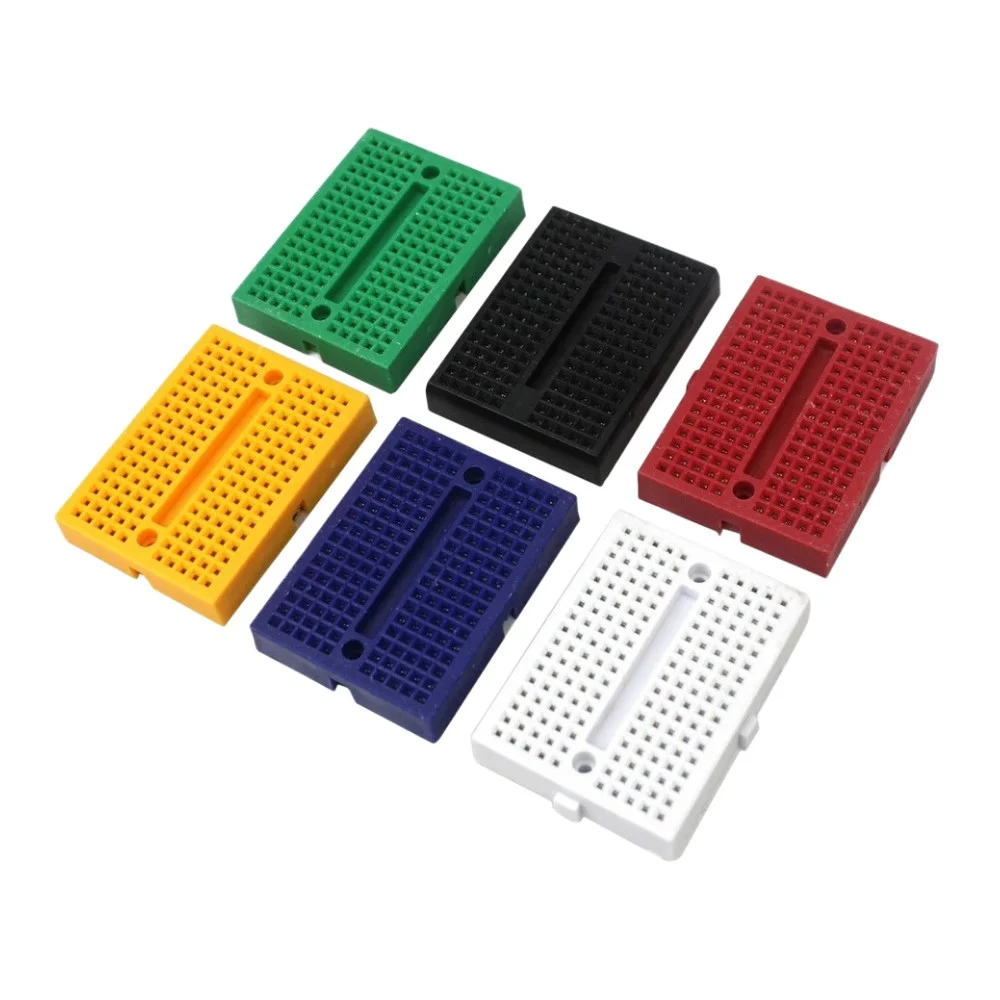

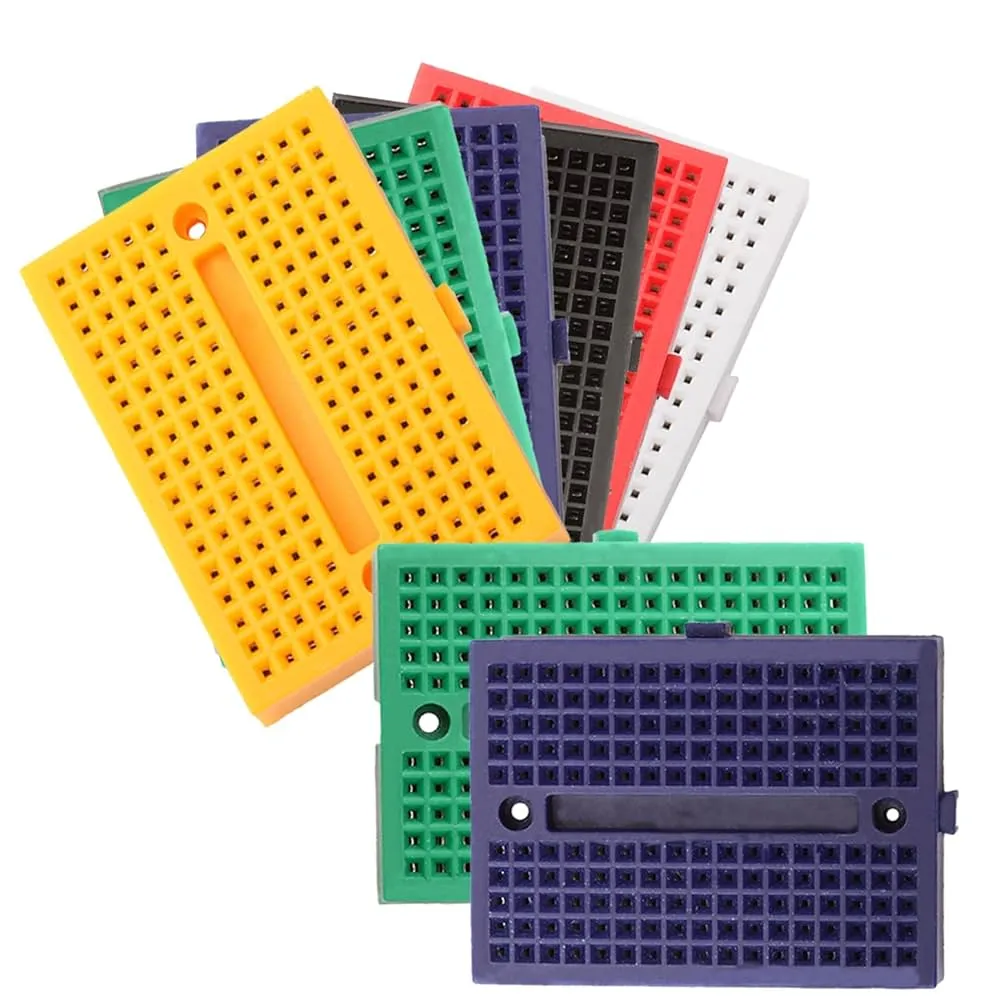

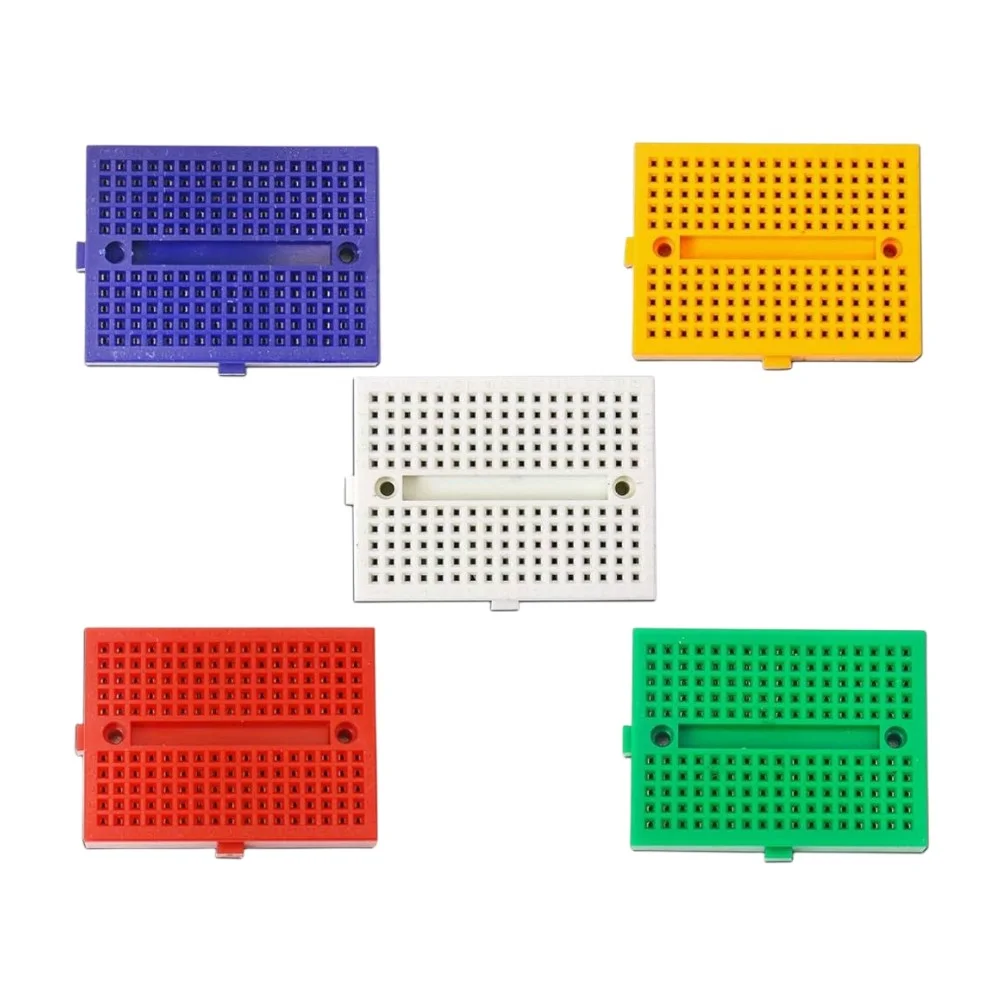

SYB-170 170 Tie Points Mini Solderless Breadboard

SYB-170 Mini Solderless Breadboard – Overview

The SYB-170 mini solderless breadboard is a compact prototyping board engineered for electronics hobbyists, students and professionals who need a small, reliable workspace for building and testing circuits. With 170 tie-points and user-friendly features like color-coded rails and a self-adhesive backing, the SYB-170 delivers a fast, portable solution for prototyping and learning without soldering.

Key Features

• 170 Tie-Points – Ample space for small to medium circuits, laid out in 15 columns and 10 rows for organized builds.
• Solderless Prototyping – Insert and remove components quickly to iterate designs without solder.
• Self-Adhesive Backing – Peel-and-stick mounting for secure placement inside enclosures or on workbenches.
• Color-Coded Power Rails – Labeled and colored rails make powering circuits intuitive and reduce wiring mistakes.
• Durable Construction – High-quality ABS plastic base with nickel-plated spring contacts for consistent conductivity and long life.
• Compact and Portable – Small footprint fits into portable projects, kits and educational kits where space is limited.

Specifications

• Model: SYB-170
• Tie-Points: 170 (15 columns x 10 rows)
• Material: ABS plastic base with nickel-plated contacts
• Power Rails: Two rows for easy Vcc and ground distribution
• Dimensions: Approximately 45 mm x 34 mm x 9 mm
• Mounting: Self-adhesive backing included

Applications

• Education – Ideal for teaching electronics fundamentals and hands-on labs.
• Hobby Projects – Perfect for breadboarding small sensors, LEDs, and microcontroller breakout boards.
• Rapid Prototyping – Test circuit ideas quickly before committing to a PCB.
• Portable Devices – Use in compact or space-constrained projects where a full-size breadboard is impractical.

How to Use

1. Clean the mounting surface and peel off the adhesive backing to secure the breadboard in place.
2. Plan your circuit using the color-coded rails for power and ground, then insert components into the tie-points.
3. Use jumper wires to connect rows and components. For larger projects, link multiple breadboards edge-to-edge.
4. When finished, carefully remove components and store the board for reuse.

Compatibility and Expansion

• Compatible with standard 0.1 inch (2.54 mm) pitch headers, jumper wires and component leads.
• Multiple SYB-170 boards can be placed side-by-side or connected to larger breadboards for expanded layouts.

Care and Maintenance

• Avoid exposure to prolonged direct sunlight or extreme temperatures to preserve the ABS plastic and adhesive.
• Keep contacts clean and dry. If needed, gently clean with a soft brush to remove dust or debris.
• Store in a dry, dust-free container when not in use to maintain reliable contact performance.

What is Included

• 1 x SYB-170 mini solderless breadboard (self-adhesive backing attached)
• Documentation note: No components or jumper wires are included unless specified by the seller.

Whether you are learning electronics, building a compact prototype, or creating a portable project, the SYB-170 mini solderless breadboard is a reliable, low-cost tool for fast circuit assembly and testing.

Note: Images are for illustration purposes only. The actual product may vary slightly in appearance depending on the manufacturer.
