SYB-118 SYB-500 2860 Tie Points Solderless Breadboard

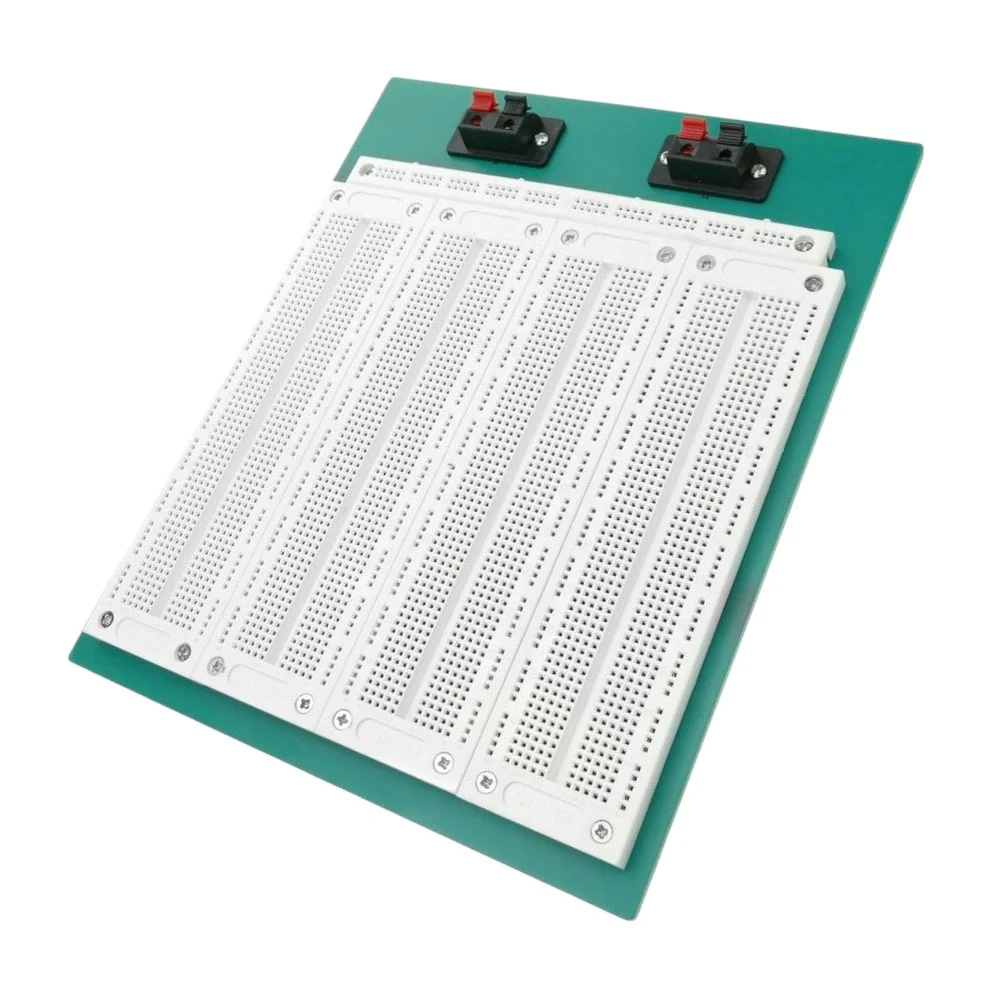

The SYB-118 / SYB-500 2860 Tie Points Solderless Breadboard is a large, modular prototyping platform designed for building and testing complex electronic circuits without soldering. It consists of four interconnected SYB-118 breadboards (each approximately 700 tie points) combined into a single unit, providing a massive working area for advanced projects.

This breadboard is ideal for Arduino, Raspberry Pi, robotics, and industrial prototyping, where multiple components and connections are required. The modular design offers exceptional flexibility for both educational and professional applications.

Key Features of SYB-500 Breadboard

• 2860 Tie Points: Large prototyping area for complex circuits
• 4-in-1 Modular Design: Built from 4 x SYB-118 breadboards
• Solderless Operation: No soldering required, fully reusable
• Multiple Power Rails: Easy distribution of VCC and GND
• Binding Posts / Terminals: Convenient external power connection
• Color-Coded Layout: Simplifies circuit design and debugging
• Durable Construction: ABS plastic with metal spring clips
• Wide Compatibility: Supports ICs, sensors, modules, and discrete components

Technical Specifications

• Model: SYB-500 (Combination of SYB-118 units)
• Total Tie Points: Approximately 2860 (approx. 4 x 700)
• Terminal Strips: Approximately 2760 tie points
• Power Rails: Approximately 100 tie points (varies by model)
• Hole Pitch: 2.54mm (standard)
• Wire Compatibility: 20-29 AWG solid core wires
• Dimensions: Approximately 240 x 200 x 8.5 mm
• Material: ABS plastic with metal contacts
• Mounting Base: Metal plate (in most variants)

Working Structure and Layout

The SYB-500 breadboard features a well-organized structure that maximizes functionality:

• Terminal strips (center): Used for ICs and components
• Power rails (sides/top): Used for power distribution
• Center gap: Allows DIP IC placement
• Modular sections: Can be separated or combined

Each row is internally connected, allowing quick and flexible circuit building for even the most complex electronic projects.

Applications and Use Cases

The SYB-118 SYB-500 breadboard is suitable for a wide range of electronics projects:

• Arduino and Raspberry Pi projects
• Robotics and automation systems
• Embedded system prototyping
• Educational labs and training
• Circuit testing and debugging
• Industrial R&D experiments

Advantages of This Solderless Breadboard

• Large workspace for advanced circuits
• Modular design for flexibility
• Reusable and cost-effective
• Clean and organized circuit layout
• Ideal for both beginners and professionals

Best Practices and Usage Tips

Get the most out of your SYB-500 breadboard with these expert tips:

• Use solid core jumper wires for better contact
• Check if power rails are split before use
• Avoid high current loads (recommended less than 3A)
• Keep wiring organized to prevent errors
• Secure the board on a flat surface for stability

Note: Images are for illustration purposes only.
