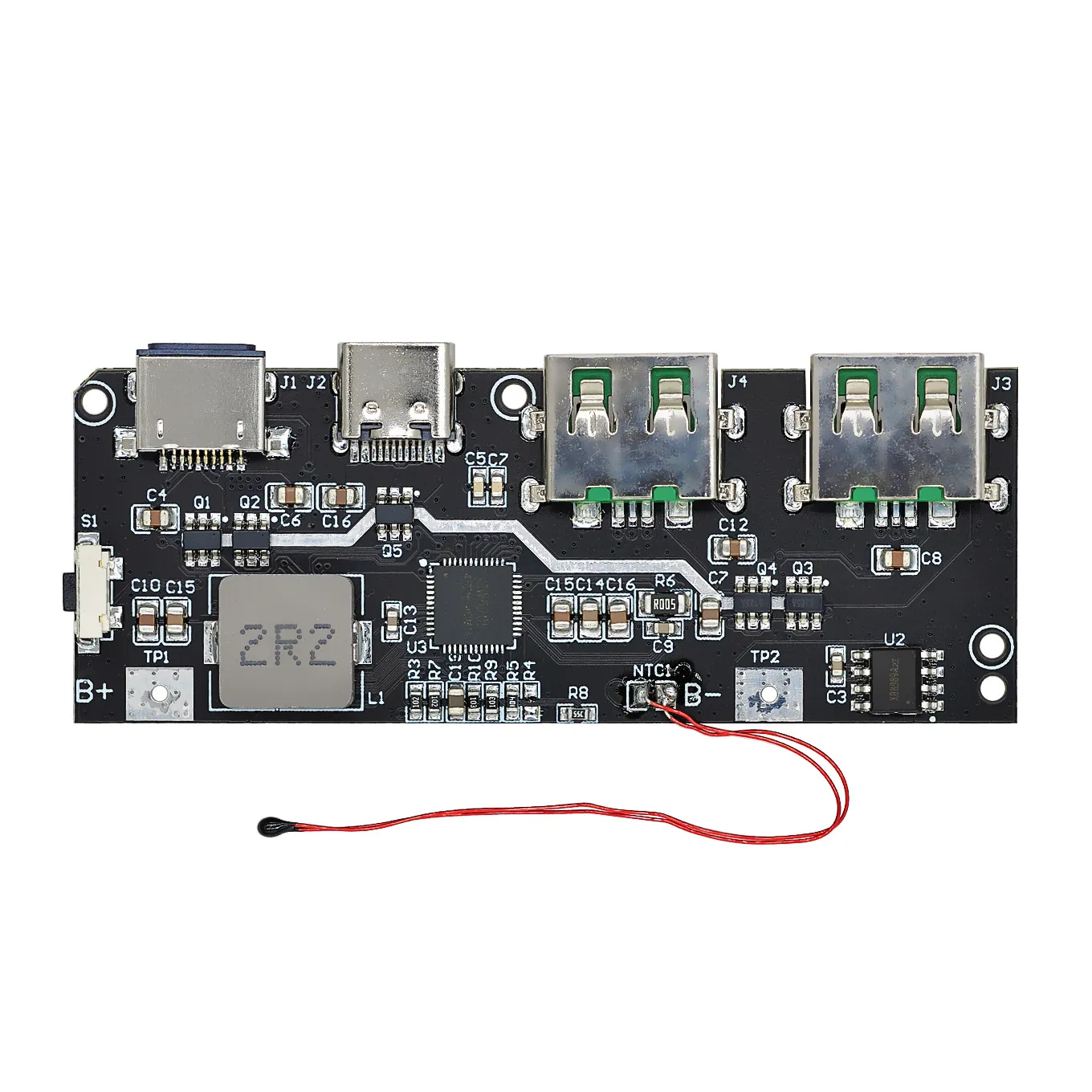

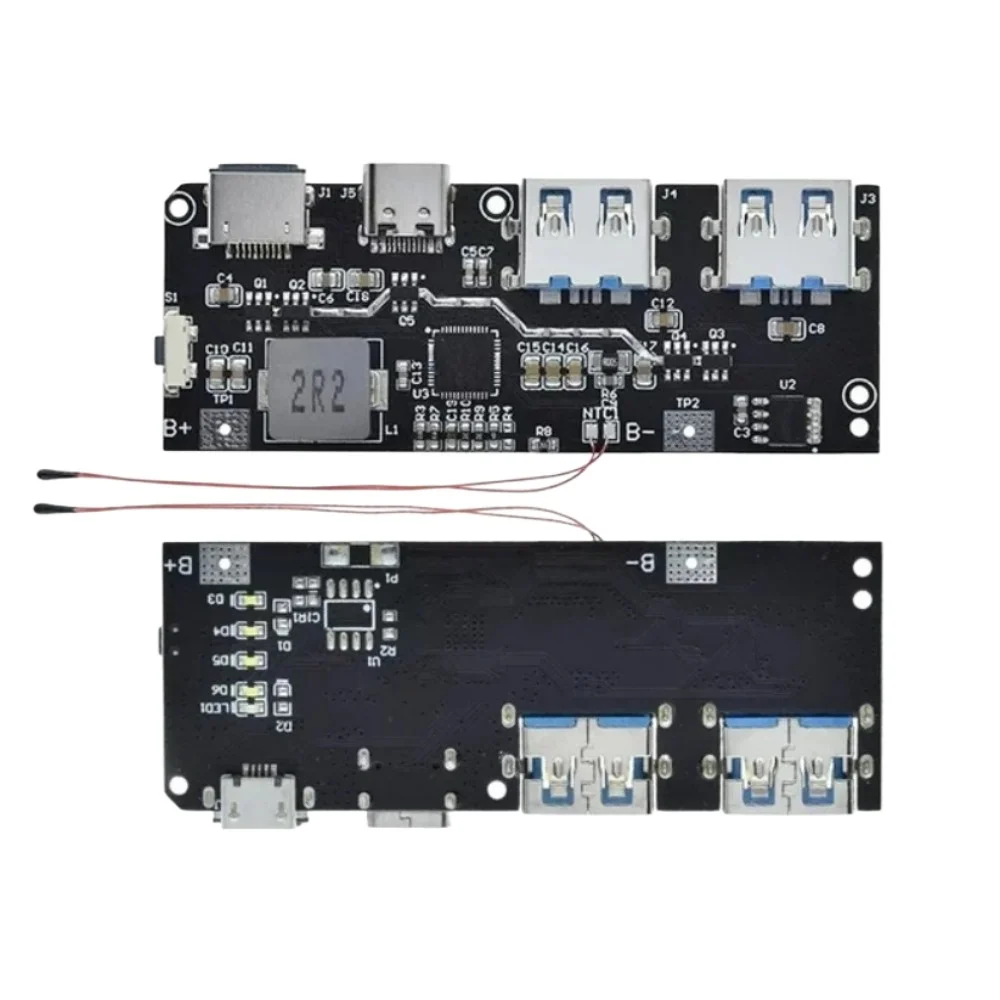

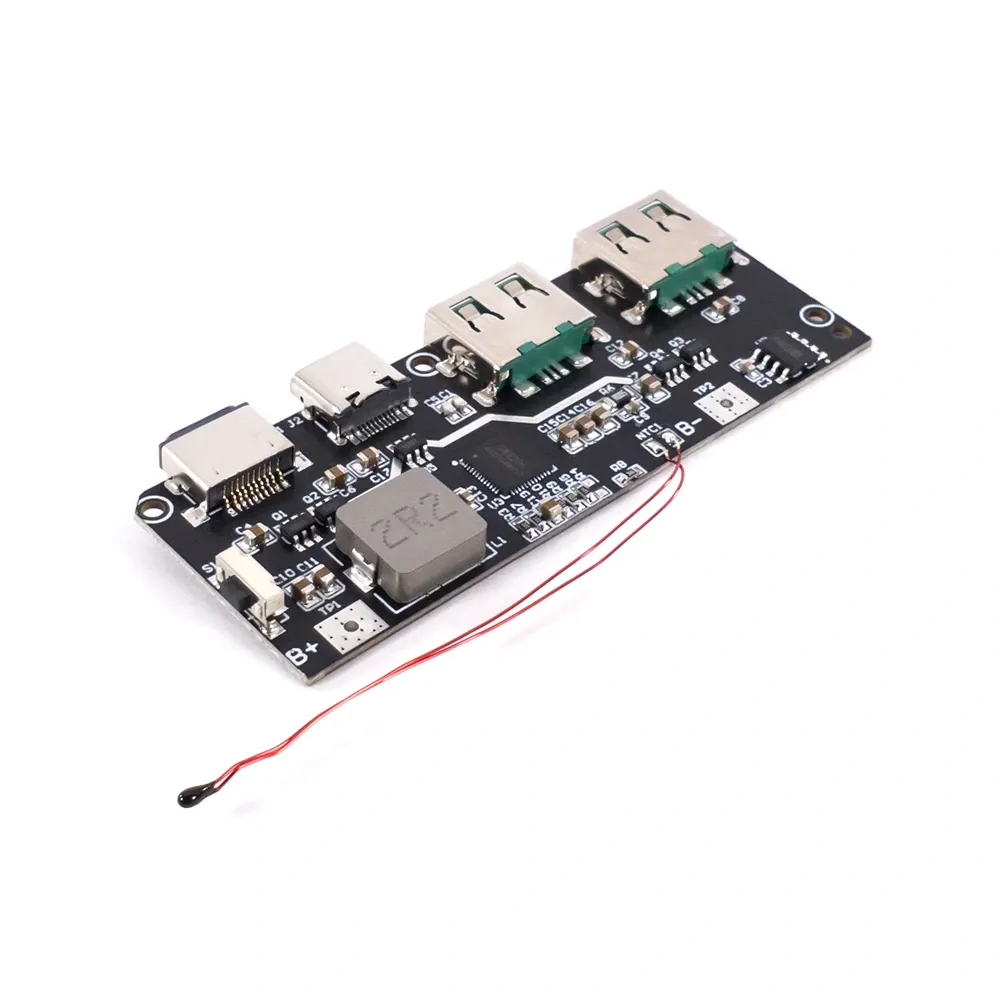

SW6206 QC 4 PD3.0 22.5W Fast Charging Power Bank Module

The SW6206 QC4 PD3.0 22.5W Fast Charging Power Bank Module is a highly integrated power management board designed for building high-efficiency DIY power banks and portable battery packs. It uses the SW6206 fast-charging controller IC which supports multiple charging protocols including Quick Charge (QC), Power Delivery (PD), AFC, FCP, SCP, and PPS, allowing fast charging compatibility with most modern smartphones and USB devices.

This module converts the voltage from single or multiple lithium batteries (3.7V) into high-power USB outputs up to 22.5W, enabling rapid charging for devices such as smartphones, tablets, and other USB-powered electronics. It also integrates battery management, boost converter, fuel gauge, and LED indicators, making it an ideal solution for custom power bank projects.

Key Features

• 22.5W High-Power Fast Charging Output
• Supports PD3.0 / PD2.0 and QC4+ / QC3.0 / QC2.0 fast-charging standards
• Compatible with Apple, Samsung, Huawei, Xiaomi, and other smartphones
• USB-C and USB-A output ports for universal device compatibility
• Automatic voltage detection and smart charging control
• Integrated battery protection system (over-voltage, over-current, short-circuit, thermal protection)
• LED battery level indicator support
• High efficiency boost conversion up to 95%
• Compact design suitable for DIY power bank cases and portable projects

Technical Specifications

• Controller Chip: SW6206
• Maximum Output Power: 22.5W
• Battery Input Voltage: 3.2V – 4.2V (Li-ion / Li-Po battery)
• Input Voltage: 5V fast-charge input
• Output Voltage: 5V (protocol dependent)
• Maximum Output Current: Up to 5A
• Charging Protocols Supported:
  • PD3.0 / PD2.0
  • QC4+ / QC4 / QC3.0 / QC2.0
  • AFC / FCP / SCP
  • PPS / PE2.0 / PE1.1 / SFCP / VOOC
• Efficiency: Up to 95%
• Board Size: Approx. 72 mm × 27 mm

Applications

• DIY fast-charging power banks
• Portable USB battery packs
• Solar power storage systems
• Battery backup for USB devices and IoT projects
• Embedded power solutions for electronics projects

Advantages

• Supports almost all major fast-charging standards
• High efficiency with low heat generation
• Multiple safety protection circuits
• Compact and easy to integrate into custom enclosures
• Suitable for 18650 Li-ion battery packs or Li-Po batteries

Note: Images are for Illustration Purposes Only. Actual product design, port configuration, and appearance may vary slightly.
