PWM to PPM Encoder / Converter

Upgrade Your Signal Control with PWM to PPM Encoder

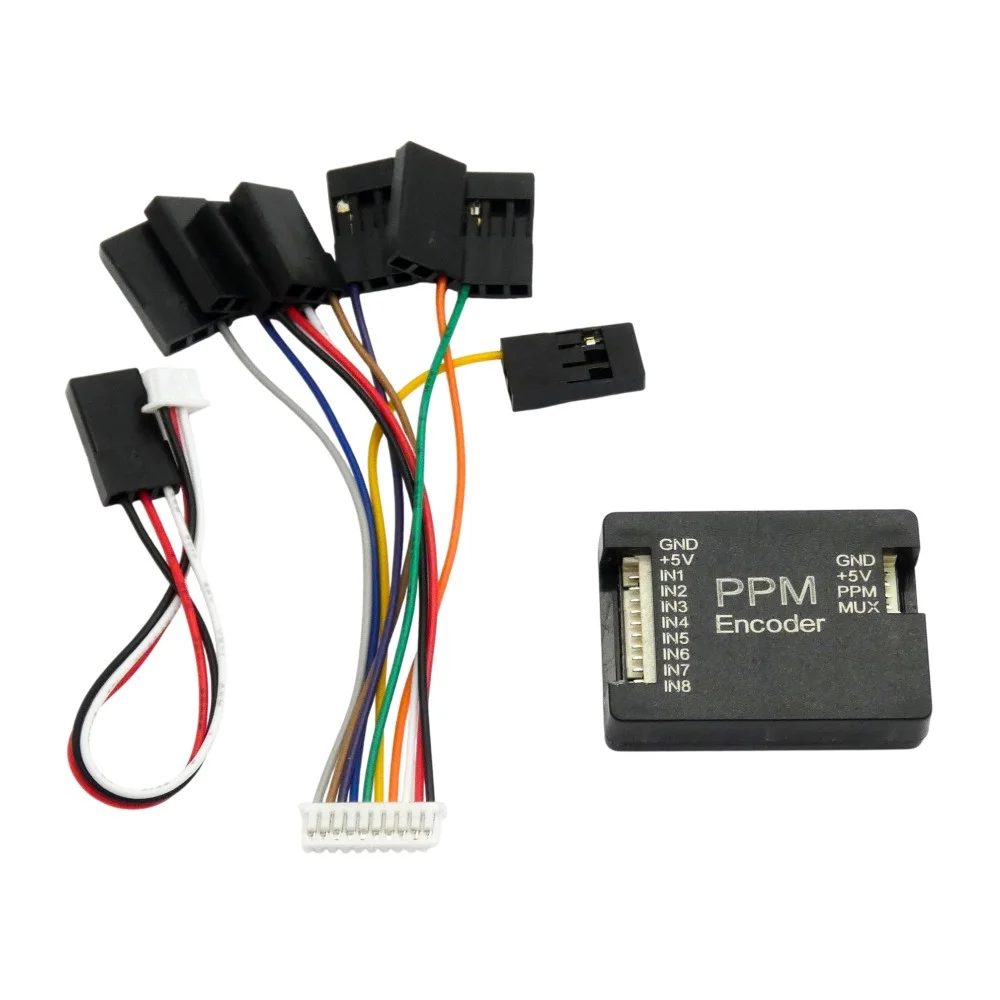

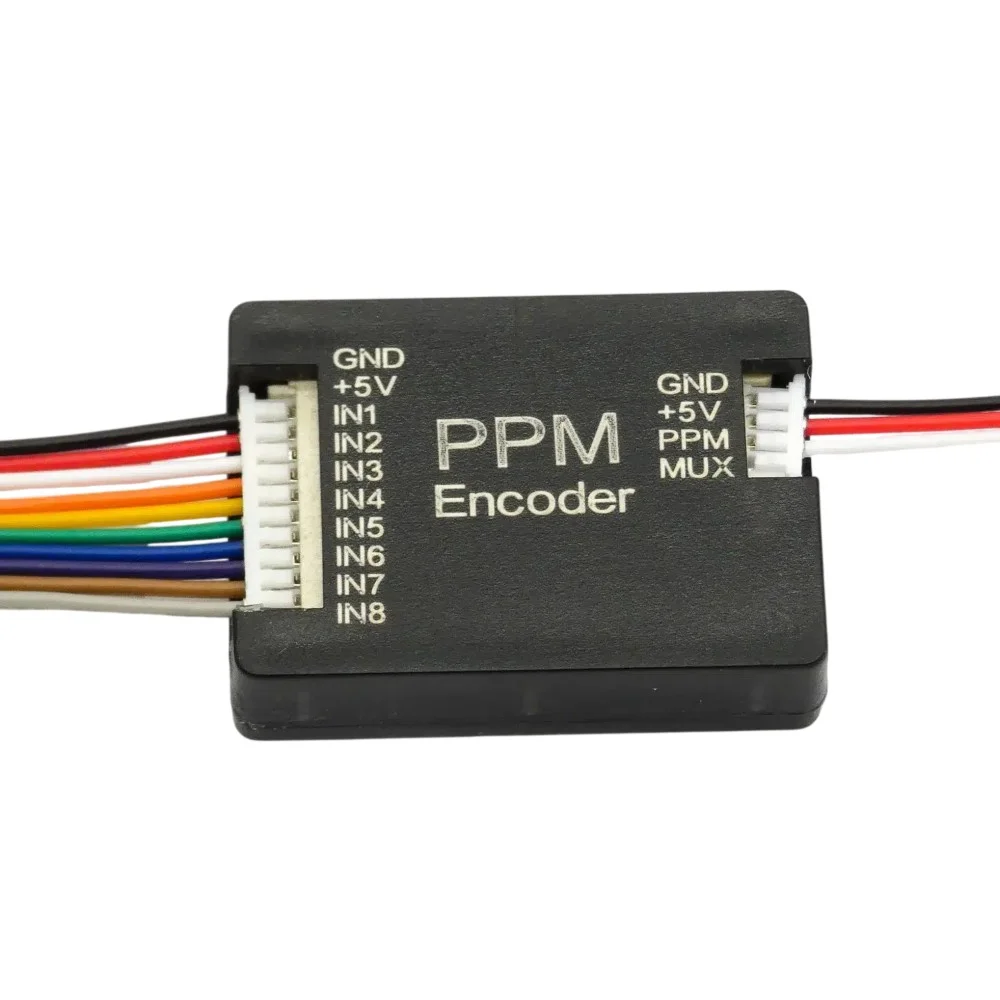

Simplify wiring and improve flight controller input with the PWM to PPM Encoder / Converter. This compact module converts multiple PWM signals into a single PPM output, making it an essential component for RC aircraft, radio-controlled drones, and custom UAV systems.

Key Features

• Converts up to 8 PWM channels into one PPM output for unified signal delivery
• Compact, lightweight design fits into tight drone and RC aircraft builds
• Low latency encoding for accurate, responsive control
• Easy to wire and integrate with Pixhawk, APM, and other flight controllers
• Built for hobbyists and professionals—reliable signal combining for stable flights

Compatibility and Applications

This PWM to PPM encoder is designed for a wide range of flight systems and RC setups. Typical applications include:

• Integration with Pixhawk and APM flight controllers
• Use with open-source flight stacks and custom autopilots
• Multi-channel RC transmitters for fixed-wing aircraft, multirotors, and helicopters
• DIY UAV builds, robotics, and autonomous vehicle projects

Technical Specifications

• Channel support: Up to 8 PWM inputs
• Output: Single PPM output (multi-channel PPM encoding)
• Signal type: Standard PWM to PPM conversion compatible with common RC servos and receivers
• Form factor: Compact PCB for easy mounting inside airframes and enclosures
• Power: Low power draw suitable for typical RC power systems

Installation and Wiring

Installing this PWM to PPM converter is straightforward. Follow these general steps:

• Connect each PWM channel input from your receiver or ESC signal outputs to the module inputs.
• Connect the module ground to your flight controller ground to ensure common reference.
• Feed the single PPM output into the PPM input on your Pixhawk, APM, or compatible flight controller.
• Power the module if required by your specific version; many modules draw power from the connected PWM signal rail.
• Verify channel order and calibration in your flight controller software and perform a bench test before first flight.

Benefits of Using a PWM to PPM Converter

• Reduces wiring complexity by combining multiple PWM signals into one line
• Improves aircraft build neatness and reduces connector failure points
• Maintains precise control timing with minimal latency
• Enables legacy PWM receivers to work with flight controllers that accept PPM input

Package Contents

• 1 x PWM to PPM Encoder / Converter module
• 1 x quick-start wiring guide (if included with the product)

Ready for Flight

Whether you are building an RC aircraft or upgrading a radio-controlled drone, this PWM to PPM encoder provides a reliable and compact solution for signal conversion. Shop online in Pakistan and buy now to simplify your flight controller setup and ensure precise, stable control for every flight.
