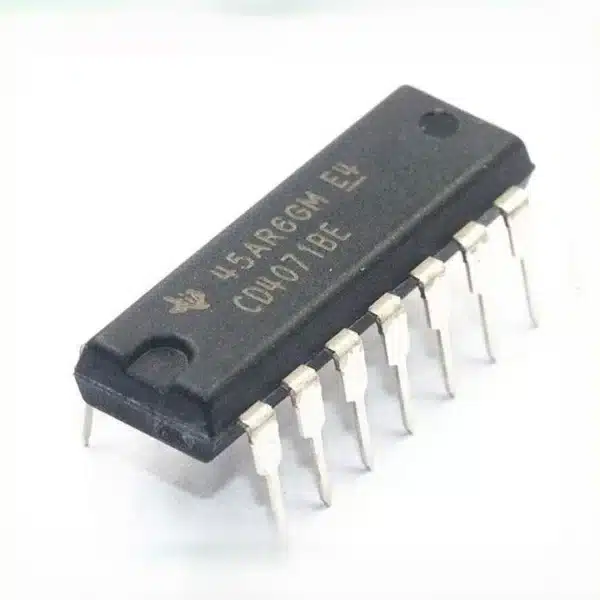

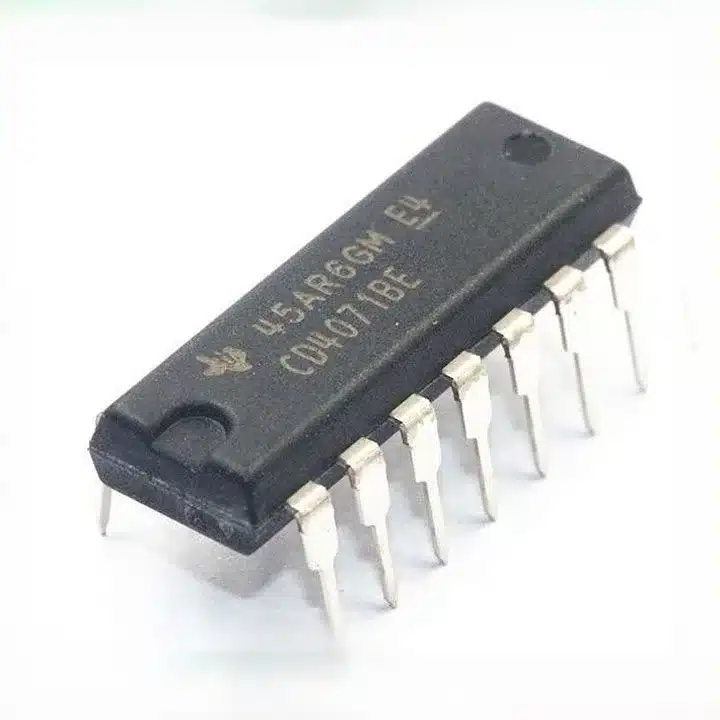

CD4071 Quad 2-Input OR Gate IC (DIP)

The CD4071 Quad 2-Input OR Gate IC (DIP) is a CMOS logic device that integrates four independent 2-input OR gates within a single 14-pin DIP package. Each gate follows standard OR logic, providing a HIGH output (logic 1) if any input is HIGH. Designed using CMOS technology, the IC ensures low power consumption and wide operating voltage compatibility, making it highly reliable for digital logic design and interfacing applications.

This IC is widely used in combinational logic circuits, digital systems, timing circuits, and signal processing. Its compatibility with both TTL and CMOS logic families makes it a versatile choice for students, hobbyists, and professionals in electronics projects. With high noise immunity, wide supply voltage range (3V to 15V), and minimal static power consumption, the CD4071 is an ideal solution for educational and industrial applications requiring OR logic implementation.

Features:

• Contains 4 independent 2-input OR gates in one package.
• Wide supply voltage range: 3V to 15V.
• Low power consumption due to CMOS technology.
• High noise immunity.
• Compatible with both TTL and CMOS logic families.
• Propagation delay and transition times suitable for standard digital applications.
• Standard 14-pin DIP package for easy prototyping.

Applications:

• Digital logic circuits and combinational logic design.
• Signal processing and data selection.
• Control logic for automation systems.
• Educational electronics and DIY projects.
• Timing and sequencing circuits.
• Interfacing and logic level control.

Note: Images are for Illustration Purposes Only.
