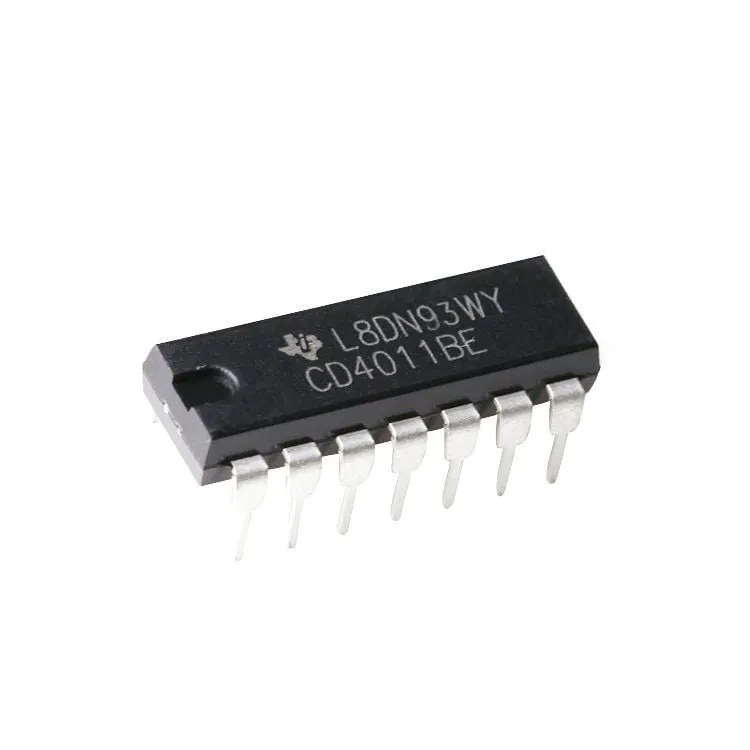

CD4011 Quad 2-Input NAND Gate IC (DIP)

Overview: CD4011 Quad 2-Input NAND Gate IC (DIP)

The CD4011 Quad 2-Input NAND Gate IC (DIP) is a CMOS logic device that integrates four independent 2-input NAND gates in a single 14-pin DIP package. This versatile IC is a core building block in digital electronics, offering reliable switching, high noise immunity, and low power consumption across a wide supply range.

Why choose the CD4011?

• Classic CMOS design for low quiescent current and stable operation.
• Wide operating voltage range (3 V to 15 V) so it works in many systems.
• Compatible with both TTL and CMOS logic families for flexible interfacing.
• Available in a standard 14-pin DIP package, making breadboarding and prototyping easy.

Key Features

• 4 independent 2-input NAND gates in one IC
• Operating voltage: 3 V to 15 V
• Low power consumption and high noise immunity
• Standard 14-pin DIP package for easy prototyping
• TTL and CMOS compatible inputs/outputs
• Reliable switching for control, timing, and logic applications

Technical Specifications

• Part type: CMOS Quad 2-input NAND gate
• Package: 14-pin DIP
• Number of gates: 4 (each with 2 inputs)
• Supply voltage: 3 V to 15 V
• Logic family compatibility: TTL and CMOS
• Typical applications: logic control, combinational circuits, timing, and educational kits

Applications and Typical Uses

The CD4011 is widely used across hobbyist, educational, and professional projects. Typical applications include:

• Digital logic design and experimentation
• Combinational and sequential circuits
• Signal control, gating, and timing circuits
• Prototyping and DIY electronics projects
• Academic labs and teaching demonstrations

Design Tips and Best Practices

• When using near the lower supply limit (3 V), verify switching thresholds in your circuit to ensure reliable logic levels.
• Decouple the supply rails with a 0.1 μF ceramic capacitor close to the IC to reduce noise and improve stability.
• Keep input lines short and avoid floating inputs; tie unused inputs to Vcc or GND through appropriate resistors.
• For TTL interfacing, confirm input threshold compatibility, especially in mixed-voltage systems.

Ordering Information

Product ID: 11223. The CD4011 Quad 2-Input NAND Gate IC (DIP) is ideal for engineers, students, and hobbyists seeking a reliable, easy-to-use NAND solution for prototyping and production.

Note: Images are for illustration purposes only.
