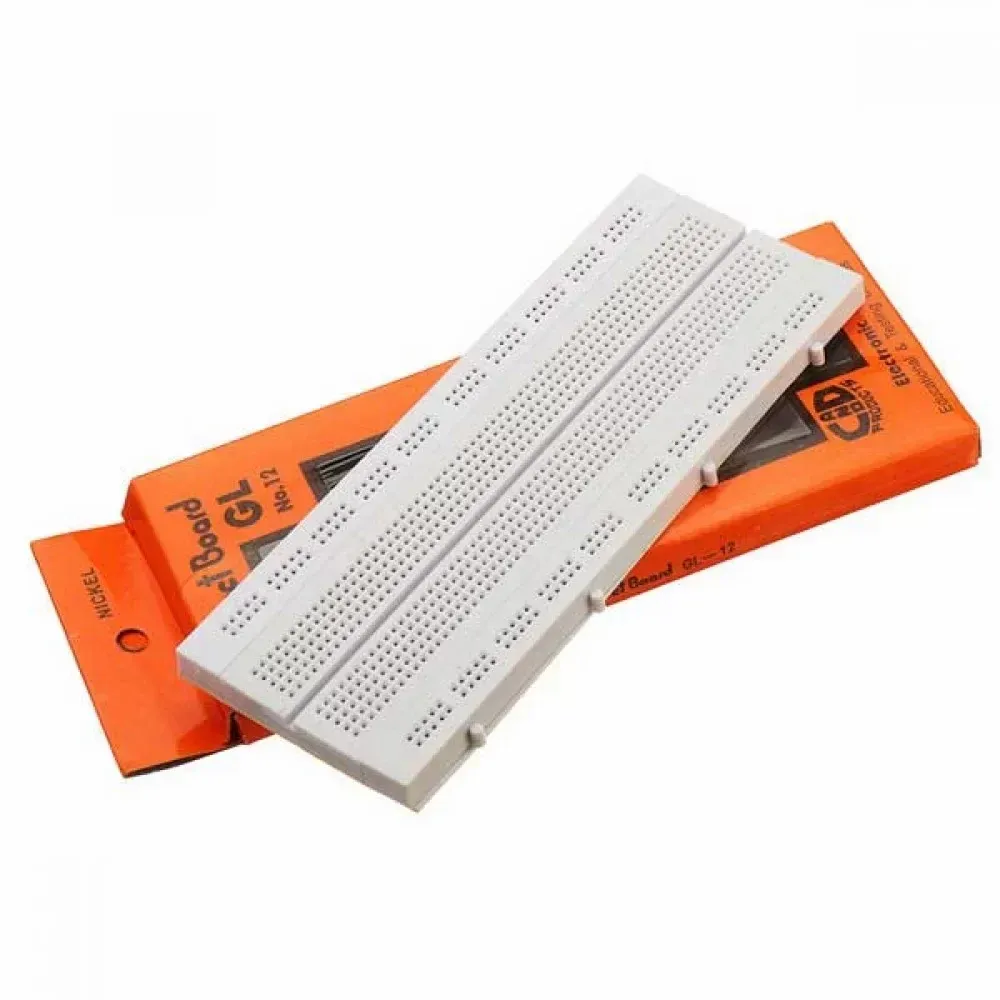

Breadboard GL-12 840 Points


  • 840 total tie-points for medium to large circuit designs
  • 630 central tie-points for component placement (DIP ICs, transistors, resistors)
  • 210 power rail tie-points (105 on each side) for easy power distribution
  • Solderless, reusable design for rapid prototyping and testing
  • Compatible with standard 2.54mm pitch components (Arduino, Raspberry Pi, sensors)
  • Self-adhesive backing and mounting holes for secure placement
  • Snap-together sections for easy expansion of your prototyping area

 220

Breadboard GL-12 840 Points Overview

The Breadboard GL-12 840 Points is a high-capacity solderless prototyping board designed for students, hobbyists and professionals. With 840 tie-points, robust internal contacts and flexible mounting options, this breadboard provides a dependable platform for building and testing medium to large electronic circuits without soldering.

Why choose the GL-12 840-point breadboard

  • Large build area suitable for complex projects and multi-component circuits
  • Reusable solderless connections allow fast iteration and component swapping
  • Durable contacts and secure mounting for long-term use in labs and classrooms

Features of the 840-point Breadboard

  • Total tie-points: 840 tie-points for spacious prototyping
  • Central grid: 630 tie-points for components and DIP ICs
  • Power rails: 2 x 105 tie-points (210 total) for easy power distribution
  • Solderless design: Insert and remove components without damage
  • Contact material: High-conductivity phosphor bronze with nickel plating for reliable connections and long service life
  • Compatibility: Standard 2.54 mm (0.1 inch) pitch for jumper wires, resistors, sensors, Arduino, ESP and other development boards
  • Mounting: Self-adhesive backing and screw holes to secure the board to project bases or workstations
  • Expandable: Snap-together design lets you combine multiple boards to create a larger prototyping area

Technical Specifications

  • Total tie-points: 840
  • Central tie-points: 630
  • Power rail tie-points: 2 x 105 (210 total)
  • Pitch: 2.54 mm (0.1 inch)
  • Contact material: Phosphor bronze with nickel plating
  • Mounting: Self-adhesive backing and mounting holes
  • Design: Solderless and reusable

Compatibility and Common Applications

The Breadboard GL-12 is compatible with a wide range of components and development boards that use standard 2.54 mm spacing. Typical uses include:

  • Prototyping with Arduino, ESP32, Raspberry Pi add-on circuits and other microcontrollers
  • Sensor interfacing and small embedded systems
  • Educational electronics labs and hands-on learning
  • Testing logic circuits and analog signal experiments
  • Temporary wiring for debugging and development

Mounting, Expansion and Practical Tips

  • Use the self-adhesive backing to fix the breadboard to project enclosures and work surfaces.
  • Fasten using the mounting holes when a more permanent or rugged installation is required.
  • Combine multiple GL-12 boards using the snap-together feature to scale your prototyping area.
  • Place power rails near your most-used components to reduce jumper clutter and improve organization.
  • For reliable connections, use clean jumper wires and avoid bending component leads excessively.

What is included

  • Breadboard GL-12 with 840 tie-points
  • Self-adhesive backing applied
  • Pre-drilled mounting holes

Note

Images are for illustration purposes. Actual product appearance may vary slightly depending on batch or manufacturer.
