BN-88C503 Baynet Module Plug / RJ45 Connector Box

BN-88C503 Baynet Module Plug / RJ45 Connector Box Overview

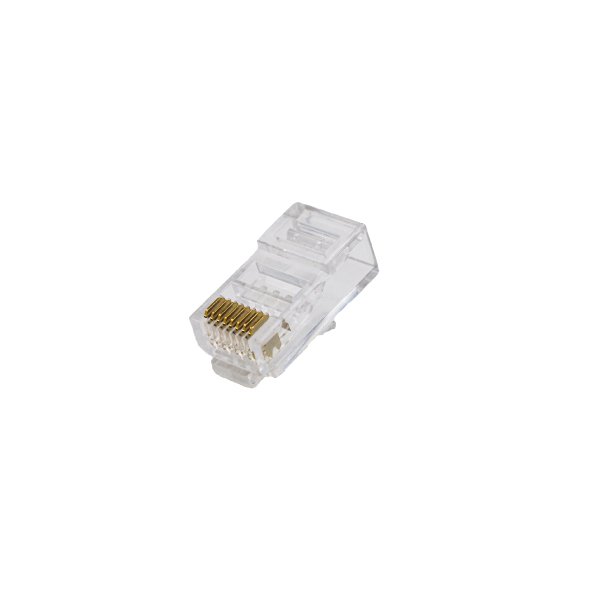

The BN-88C503 Baynet Module Plug is a high-quality RJ45 8P8C connector designed for Cat5E networks. Featuring 50 micron gold plated contacts, this module plug delivers reliable signal transmission and long-term corrosion resistance for voice and data applications. It is engineered for easy installation into keystone-style panels, wall plates and patch panels.

Key Features

• RJ45 8P8C connector format compatible with standard Ethernet cabling
• Cat5E performance for Fast Ethernet and typical LAN deployments
• 50 micron gold plated contacts for low contact resistance and durability
• Baynet module plug design for snap-in mounting and secure fit
• Compact housing suitable for high-density patch panels and plates
• Works with voice, data and PoE installations that meet Cat5E specs

Technical Specifications

• Connector type: RJ45 (8P8C)
• Category: Cat5E
• Contact plating: 50 micron gold
• Electrical performance: up to 100 MHz (Cat5E standard)
• Mounting format: Baynet module / keystone style
• Typical applications: Ethernet, Fast Ethernet, LAN, voice and data

Compatibility and Applications

The BN-88C503 module plug is compatible with standard keystone openings, patch panels, surface mount boxes, and wall plates designed for modular RJ45 inserts. Common use cases include:

• Office and enterprise LAN deployments
• Patch panel installations in racks and cabinets
• Wall plate terminations for desktop connections
• Structured cabling projects and network upgrades

Installation and Maintenance

• Snap the module into a compatible keystone opening until it locks in place
• Terminate or patch with properly wired Cat5E cables and test with a cable tester
• Avoid excessive bending or stress on cables at the connector to maintain performance
• Clean contacts with approved contact cleaner if required; avoid abrasive materials

Benefits of Choosing BN-88C503

• Improved signal reliability thanks to 50 micron gold plating
• Fast and simple installation for installers and IT staff
• Compact and durable design for high-density network environments
• Cost effective solution for Cat5E structured cabling systems

Upgrade or maintain your Cat5E network with the BN-88C503 Baynet Module Plug to ensure consistent, low-loss connections in patch panels, wall plates and keystone installations.
