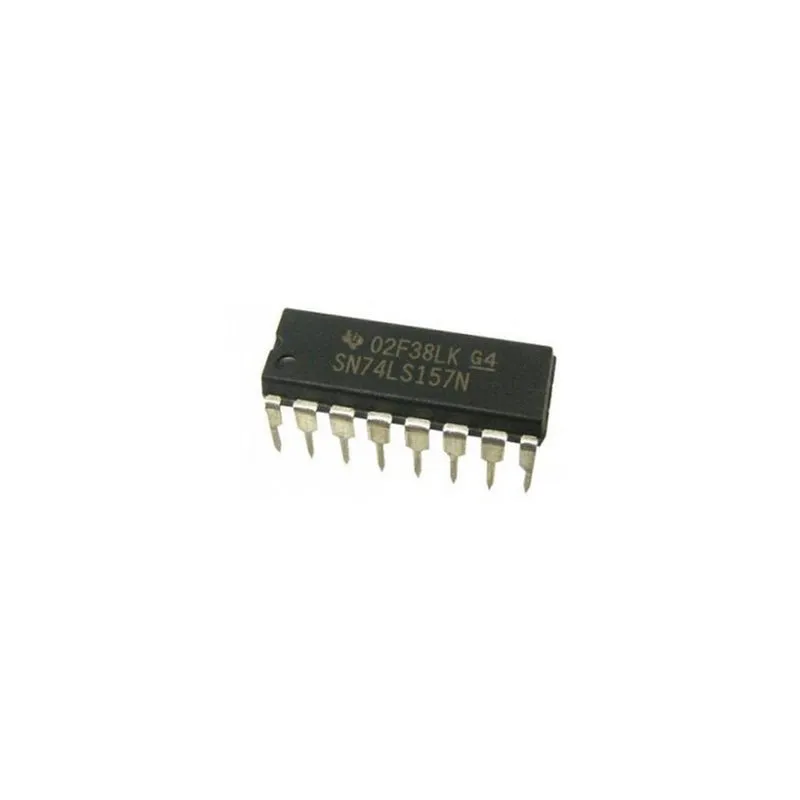

74157 Quad 2-Input Multiplexer MUX IC (DIP)

74157 Quad 2-Input Multiplexer (MUX) IC – Overview

The 74157 is a Quad 2-Input Multiplexer IC that provides four independent 2-to-1 multiplexers in a single DIP package. Designed for general-purpose digital logic, the device lets you select one of two input signals per channel and route the selected signal to the corresponding output. With TTL-compatible inputs and outputs, a common select line, and an enable control, the 74157 is a versatile choice for data routing, logic expansion, and microprocessor interfacing.

Key Features

• Four independent 2-input multiplexers (4 channels per IC)
• TTL-compatible logic levels for reliable integration with standard logic families
• Common select (control) and enable inputs to manage all channels together
• Fast switching and low propagation delay suitable for timing-sensitive circuits
• DIP (Dual In-line Package) for easy use on breadboards and through-hole PCBs
• Wide operating temperature and voltage range for varied environments

How the 74157 Works

Each channel of the 74157 has two data inputs and one output. The common select input determines which input (A or B) is passed to the output for all four channels. An enable input allows all outputs to be disabled when needed, useful for bus-oriented designs and tri-state-like control. This structure makes the 74157 useful for multiplexing data lines, selecting between different logic results, or routing signals into downstream processing.

Applications

• Data selection and routing in digital systems
• Microprocessor and microcontroller interfacing for bus and address/data multiplexing
• Arithmetic and logic function selection in ALU expansion
• Digital signal processing where channel selection is required
• Educational labs, prototyping boards, and logic training exercises

Typical Integration and Prototyping Tips

• Use the DIP form factor for quick testing on solderless breadboards or for through-hole PCB layouts.
• Tie unused inputs to a defined logic level (VCC or GND) to avoid floating inputs and unpredictable outputs.
• Use decoupling capacitors near the power pins to maintain stable operation during fast switching events.
• Combine the common select line with simple control logic or microcontroller GPIOs to switch all channels simultaneously.

Why Choose the 74157

• Compact 4-channel solution reduces component count and board space.
• TTL compatibility and reliable switching make it suitable for legacy and modern logic systems.
• Simple control scheme with shared select and enable lines simplifies system design.
• Ideal for both educational use and professional prototyping where ease-of-use matters.

Note: Images are for Illustration Purposes Only
