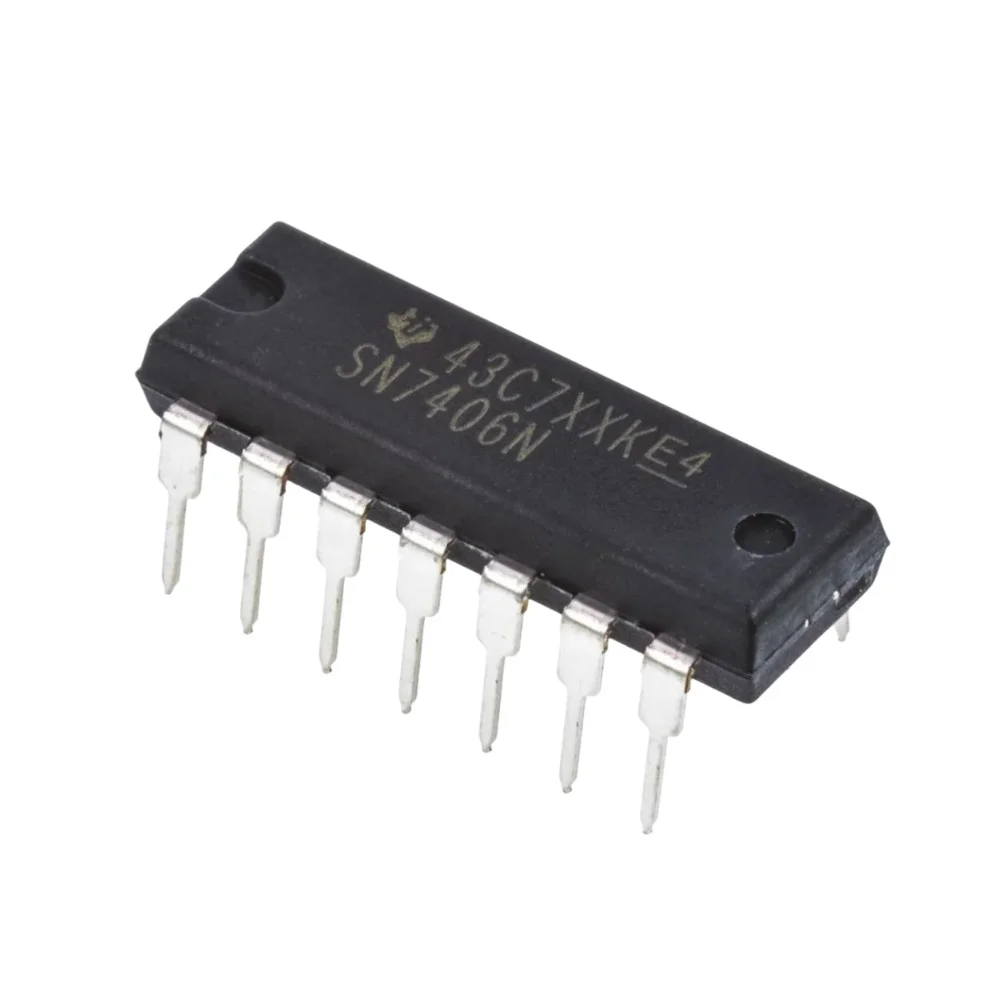

7406 Hex Inverter Buzzer IC (DIP)

The 7406 Hex Inverter Buzzer IC (DIP) is a versatile and reliable TTL logic device that contains six independent NOT gates (inverters) with open-collector high-voltage outputs. It is designed to invert digital logic signals and can drive higher current loads such as buzzers, relays, LEDs, and lamps directly using external pull-up resistors.

As part of the 7400 TTL logic series, the 7406 is built for compatibility with 5V digital logic systems and can handle output voltages up to 30V, making it ideal for signal amplification and interfacing applications. The IC comes in a DIP-14 (Dual Inline Package), making it easy to mount on breadboards, PCBs, or IC sockets, and is commonly used in educational electronics, embedded systems, and control circuits.

Features:

• Contains six independent NOT (inverter) gates in a single package.
• Open-collector high-voltage outputs capable of driving up to 30V loads.
• Suitable for driving buzzers, relays, LEDs, or other external devices.
• Compatible with TTL and CMOS logic families.
• Fast switching speed and high noise immunity.
• Low power consumption and excellent reliability.
• Standard DIP-14 package for easy prototyping and soldering.
• Ideal for use in signal inversion, driver circuits, and logic interfacing.

Specifications:

• IC Type: Hex Inverter / Buffer
• Logic Family: 7400 Series TTL
• Number of Gates: 6
• Output Type: Open Collector (High Voltage)
• Package Type: DIP-14 (Dual Inline Package)
• Operating Voltage (Vcc): 4.75V to 5.25V
• Maximum Output Voltage: 30V
• Maximum Sink Current: 40mA per output
• Input Voltage (Max): 5.5V
• Propagation Delay: ~18ns (typical)
• Power Dissipation: 500mW (maximum)
• Operating Temperature: 0°C to +70°C
• Pin Count: 14

Applications:

• Buzzer or relay driver circuits using open-collector outputs.
• Logic signal inversion in digital systems.
• Voltage level shifting and signal buffering.
• Interface between TTL and high-voltage devices.
• LED driving circuits and indicator controls.
• Industrial and embedded control systems.
• Alarm and notification circuits requiring buzzer control.

Note: Images are for illustration purposes only.
