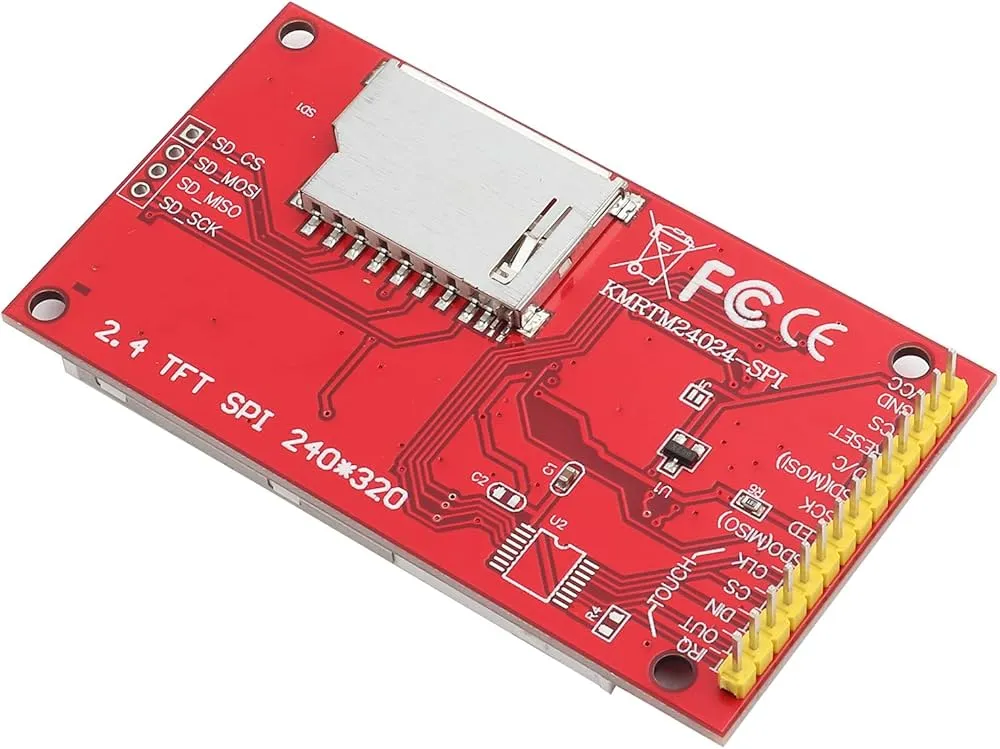

The 2.4 Inch SPI TFT Non-Touch Display Screen Module (320×240) is a vibrant full-color TFT LCD module designed for a wide range of electronic and embedded applications. Featuring a 320×240 pixel (QVGA) resolution and the ILI9341 driver IC, this display delivers clear, detailed, and colorful visuals in a compact form factor.
With its SPI (Serial Peripheral Interface) communication, the module ensures fast refresh rates and easy interfacing with microcontrollers such as Arduino, ESP32, STM32, and Raspberry Pi. This non-touch version provides a cost-effective solution for projects that require high-quality graphical output without touch interaction.
Features:
- Display Size: 2.4 inches (diagonal)
- Resolution: 320 × 240 pixels (QVGA)
- Display Type: Full-color TFT LCD
- Touchscreen Type: Non-Touch
- Display Driver IC: ST7789
- Interface Type: SPI (Serial Peripheral Interface)
- Color Depth: 65K colors (16-bit RGB)
- Operating Voltage: 3.3V – 5V compatible
- Backlight: White LED for enhanced brightness
- Viewing Angle: Wide and clear viewing range
- High Refresh Rate: Smooth display rendering for graphics and text
- Low Power Consumption: Suitable for battery-operated systems
- Compact Design: Ideal for portable and space-constrained applications
Applications:
- Embedded system display panels
- IoT monitoring devices
- DIY electronics and educational projects
- Robotics control displays
- Industrial instrumentation readouts
- Data loggers and small graphical interfaces
Specifications:
- Screen Size: 2.4 inches
- Resolution: 320 × 240 pixels (QVGA)
- Display Controller: ST7789
- Interface: SPI (4-wire)
- Touch Type: Non-touch
- Color Depth: 65K (16-bit RGB)
- Operating Voltage: 3.3V – 5V
- Backlight Type: White LED
- Operating Temperature: -20°C to +70°C
- Module Dimensions: Approx. 72mm × 52mm × 7mm
