Product Overview
The 1N4001 Rectifier Diode (50V 1A) is a trusted, general-purpose silicon rectifier designed for low-frequency rectification and protection tasks. It supports up to 50V reverse voltage (VRRM) and 1A continuous forward current, making it a versatile choice for power adapters, DC power supplies, battery chargers and many electronics projects.
Key Specifications
- Model: 1N4001
- Reverse voltage (VRRM): 50V
- Continuous forward current (IF): 1A
- Peak surge current (IFSM): 30A
- Forward voltage drop (VF): ~1.1V (max, depending on current and temperature)

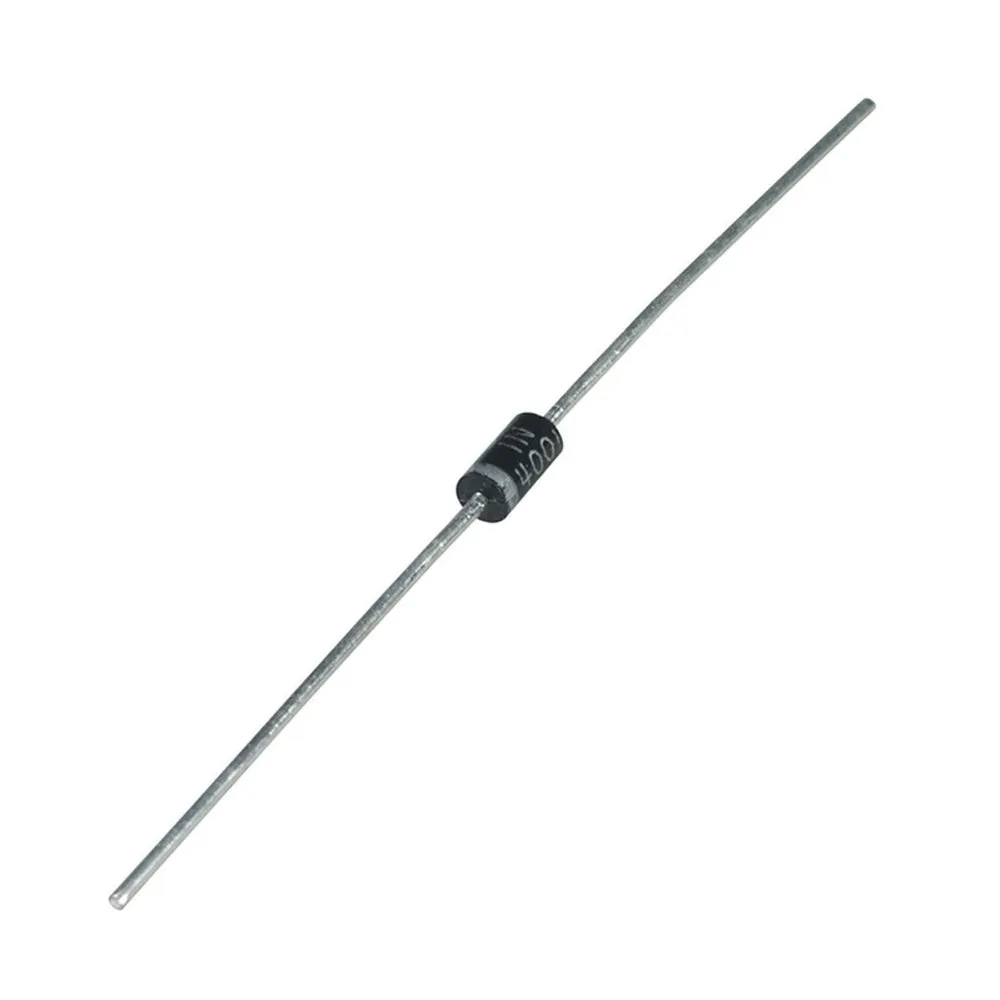

- Package: DO-41 (axial leaded)
Features and Benefits
- Reliable general-purpose rectifier for AC to DC conversion
- Low forward voltage drop for efficient power transfer
- High surge current rating to handle inrush and transient loads
- Proven durability and long operational life in low-frequency circuits
- Simple through-hole DO-41 package for easy prototyping and repairs
Applications
- AC to DC rectification in transformers and adapter circuits
- DC power supply units and voltage regulators
- Battery charging circuits and backup power systems
- Reverse polarity protection on input lines and devices
- General hobbyist and educational electronics projects
Typical Use Cases
Designers commonly use the 1N4001 in single-diode rectification, full-wave bridge rectifiers (paired with other 1N400x series diodes), polarity protection circuits, and simple power-supply front ends. Its high surge capability makes it suitable for handling short-term inrush currents when capacitors charge at power-up.
Package and Mounting
The 1N4001 is supplied in a DO-41 axial lead package compatible with through-hole PCB mounting and hand-soldered assemblies. The axial form factor is convenient for breadboards, perfboards and traditional PCB footprints.
Technical Notes
- The diode has moderate recovery characteristics suitable for low-frequency rectification; it is not optimized for high-speed switching like Schottky or fast-recovery diodes.
- Typical forward voltage is around 1.1V at rated currents; expect variation with temperature and operating current.
- Ensure proper derating in continuous high-current or high-temperature environments to maximize reliability.
Ordering and Packaging
The 1N4001 is widely available in single-piece and bulk quantities. Its robust, easy-to-handle DO-41 package makes it suitable for both professional production and hobby builds.
