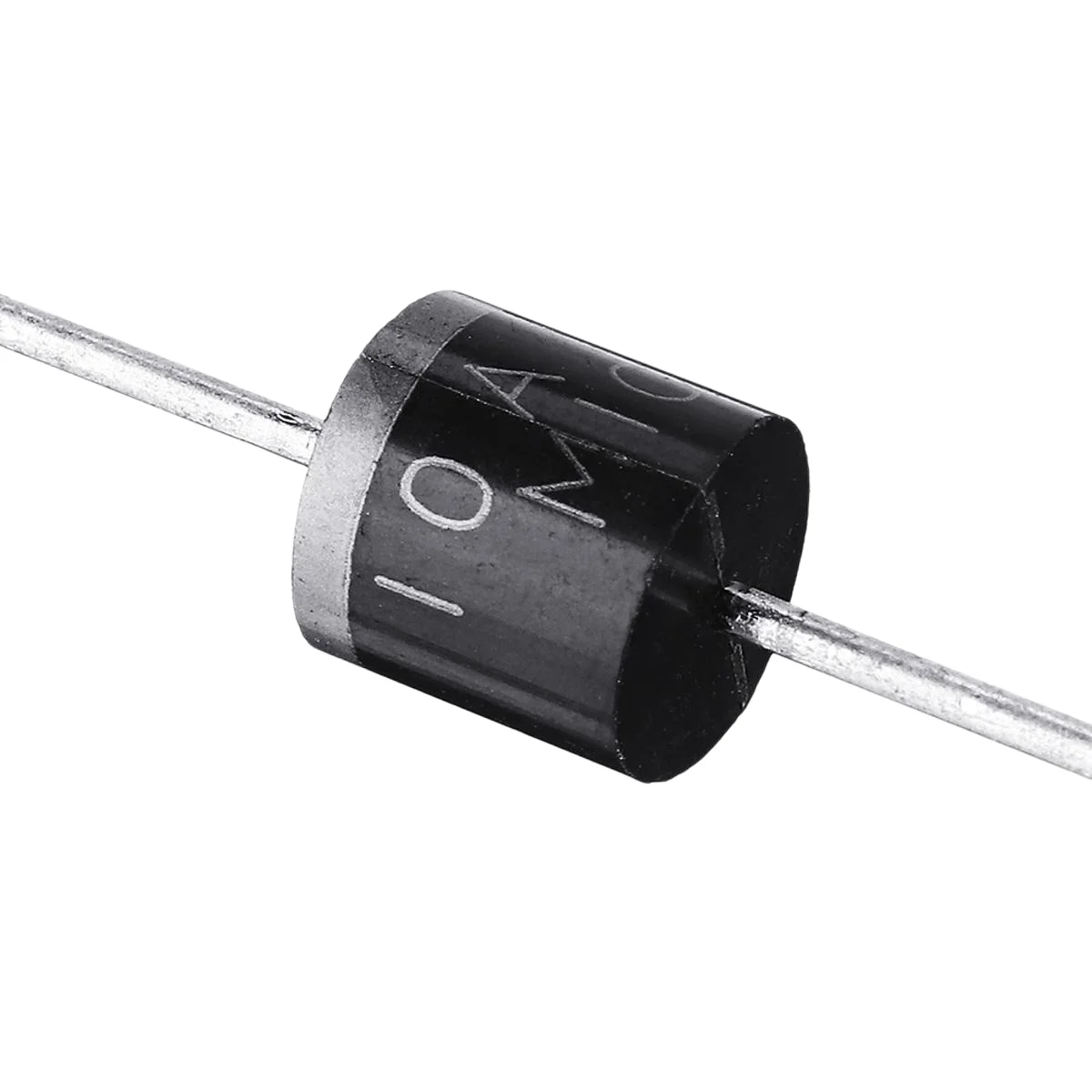

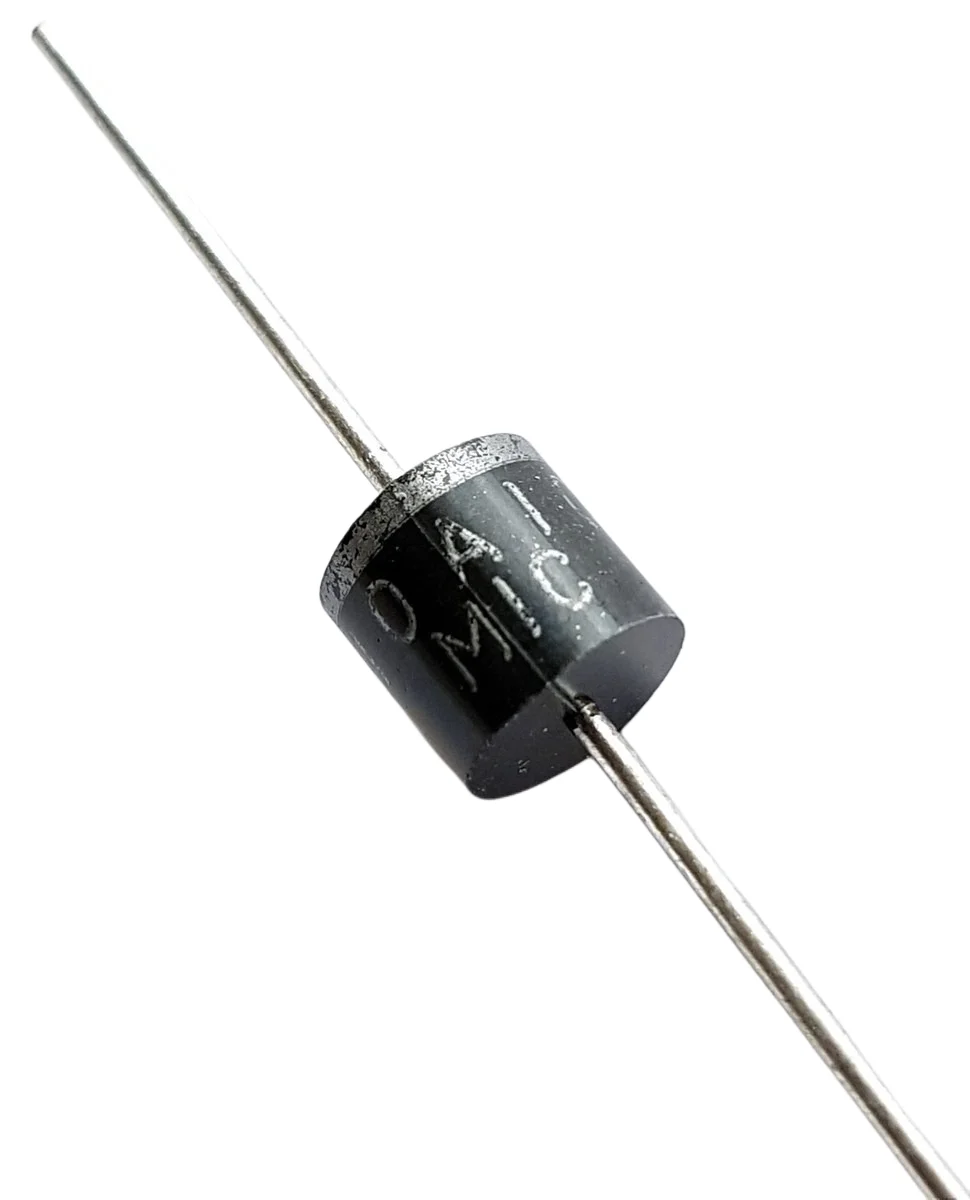

10A10 Rectifier Diode (1000V 10A)

Overview

The 10A10 Rectifier Diode is a high-power, general-purpose silicon diode engineered for reliable AC to DC rectification in power electronics. With a maximum reverse voltage of 1000V and an average forward current rating of 10A, this diode is built to handle demanding high-voltage, high-current environments found in industrial and consumer applications.

Key Features of the 10A10 Rectifier Diode

• High Current Capacity: 10A average forward current suitable for demanding power applications.
• High Reverse Voltage Rating: 1000V maximum reverse voltage for safe high-voltage rectification.
• Efficient Rectification: Low forward voltage drop to reduce power loss and heat generation.
• Rugged Construction: Designed to withstand electrical stress and continuous operation.
• Axial Lead Package: Easy to mount on printed circuit boards or use in point-to-point wiring.
• Versatile Use: Common choice for both professional equipment and DIY power projects.

Specifications

• Part: 10A10 Rectifier Diode
• Maximum Repetitive Reverse Voltage (Vrrm): 1000V
• Average Forward Current (If(AV)): 10A
• Package: Axial lead
• Function: General-purpose silicon rectifier for AC to DC conversion

Typical Applications

• AC to DC rectifier circuits
• Power supply units and adapters
• Battery chargers
• Inverters and UPS systems
• Motor drives and controllers
• Welding machines and industrial equipment
• High-current DIY power projects

Installation and Best Practices

The axial lead package allows straightforward soldering to PCBs or point-to-point wiring. When integrating the 10A10 diode, verify polarity, ensure adequate spacing and cooling for high current operation, and avoid exceeding the 1000V reverse voltage and 10A forward current ratings. Use proper heat management and fusing in designs where sustained high currents or elevated temperatures are expected.

Reliability and Performance

Designed for robust performance under electrical stress, the 10A10 offers dependable operation in continuous and pulsed load conditions. Its low forward voltage drop minimizes conduction losses, improving energy efficiency and reducing heat buildup in power systems.

Ordering and Additional Information

The 10A10 Rectifier Diode is widely available for single-unit purchases or bulk orders. For critical applications, consult the manufacturer datasheet for detailed thermal characteristics, surge current limits, and packaging specifications. Images are for illustration purposes only.

Why Choose the 10A10

If you need a cost-effective, rugged rectifier that handles high voltage and high current, the 10A10 is an excellent choice for power supplies, chargers, inverters, motor controllers, and other industrial power electronics. Contact your supplier for availability and lead times.
