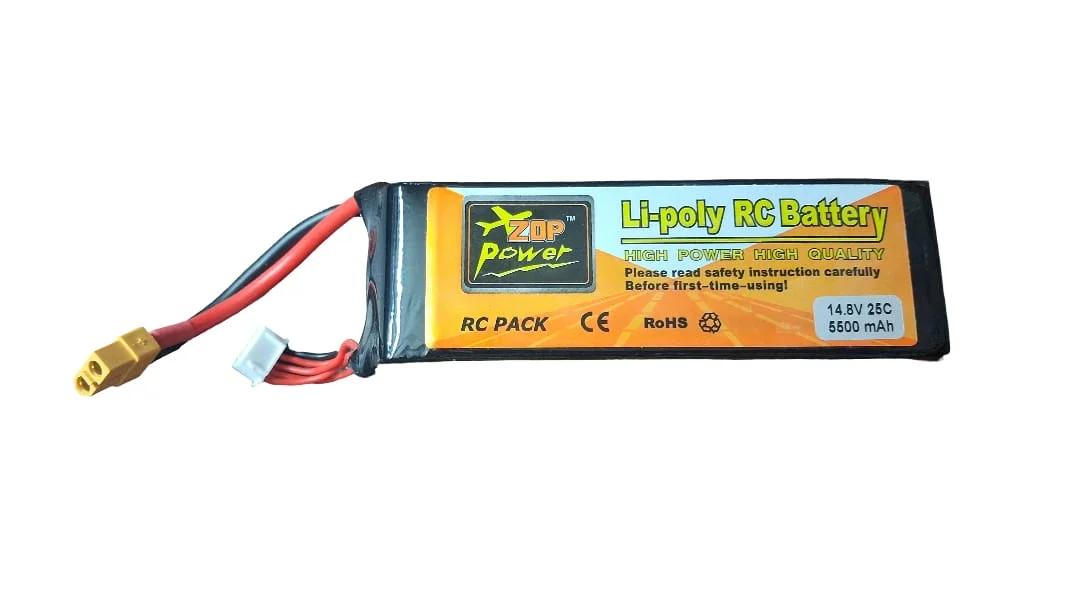

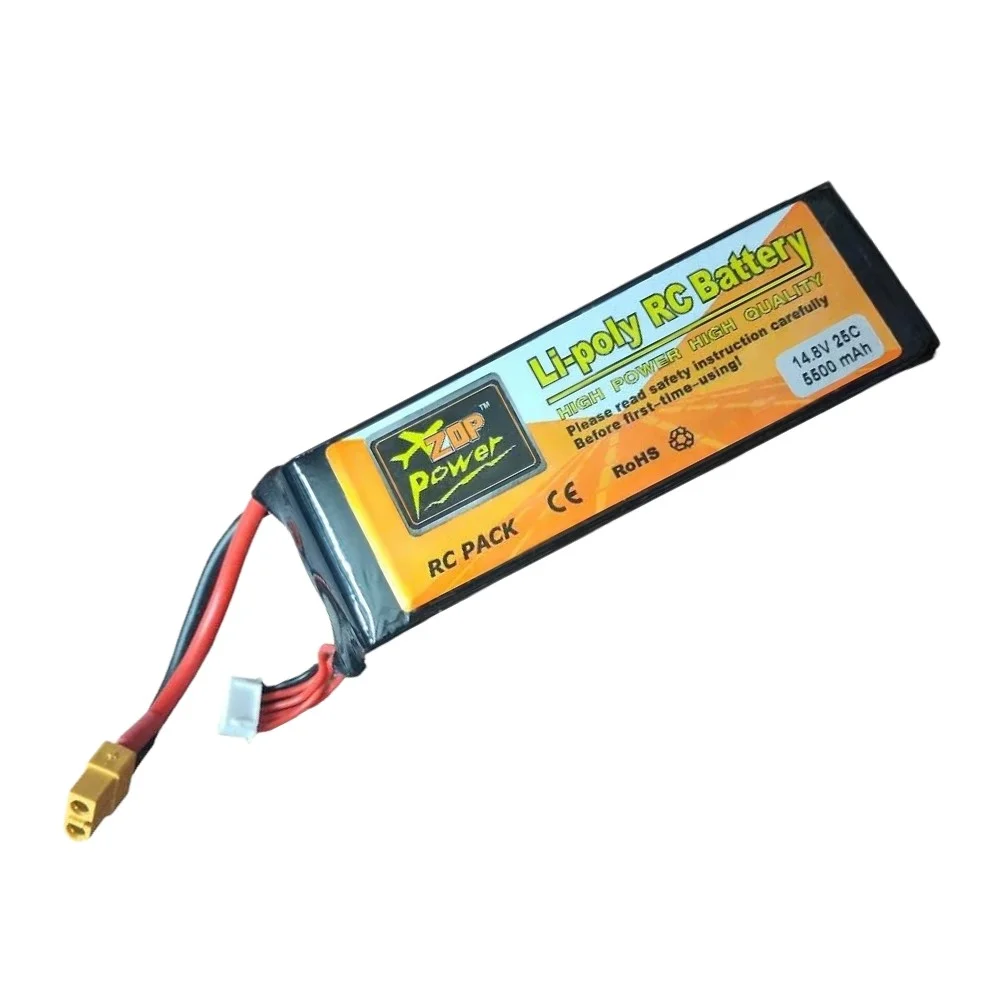

ZOP Power 4S 14.8V 5500mAh 25C LiPo Battery

Overview

The ZOP Power 4S 14.8V 5500mAh 25C LiPo Battery is a high-capacity, high-performance lithium polymer battery engineered for demanding RC models, drones, FPV racing, airplanes, cars, and boats. With a 14.8V nominal voltage and 5500mAh capacity (about 81.4Wh), it delivers stable power and long runtimes for extended flights and run sessions.

Why this battery stands out

• High energy density for extended operation without excessive weight
• 25C continuous discharge for strong, sustained current delivery
• XT60 power connector and JST-XH balance connector for compatibility with a wide range of chargers and ESCs
• Durable construction rated for 300 to 500 cycles, delivering reliable performance over time

Key Features

• Brand: ZOP Power
• Battery Type: Lithium Polymer (LiPo), rechargeable
• Configuration: 4S (4 cells in series)
• Nominal Voltage: 14.8V
• Capacity: 5500mAh (approx. 81.4Wh)
• Discharge Rate: 25C continuous (Maximum discharge current 137.5A)
• Connector Type: XT60 for power, JST-XH for balance charging
• High energy density and lightweight design for RC and aerial applications
• Supports approximately 300 to 500 charge/discharge cycles

Technical Specifications

• Nominal Voltage: 14.8V (4S)
• Capacity: 5500mAh
• Energy: ~81.4Wh
• Discharge Rate: 25C continuous
• Maximum Discharge Current: 137.5A (5500mAh x 25C)
• Connector Type: XT60 plug
• Balance Connector: JST-XH
• Dimensions (approx.): 155mm x 45mm x 35mm
• Weight (approx.): 500g to 550g

Applications

This battery is ideal for high-demand applications, including:

• Large RC drones and quadcopters
• RC airplanes and helicopters
• High-performance RC cars, trucks, and boats
• FPV racing and aerial photography drones
• DIY robotics and embedded high-power systems

Compatibility and Installation

• Works with flight controllers, ESCs, and power systems that accept a 14.8V 4S input
• XT60 main connector plugs into most modern ESCs and power distribution systems
• Use the JST-XH balance connector with a compatible LiPo balance charger for safe charging
• Verify center of gravity and mounting space on your model before installation due to physical dimensions

Charging, Handling and Safety Tips

• Charge only with a LiPo-compatible charger and the proper 4S program and balance mode
• Never charge unattended and always use a fireproof LiPo charging bag or safe area
• Do not exceed the recommended charge current; 1C to 2C is typical for routine charging unless otherwise specified
• Inspect for swelling, punctures, or physical damage before each use; do not use damaged batteries
• Store at 3.8V per cell (storage voltage) for long-term storage and avoid extreme temperatures

What is in the Box

• 1 x ZOP Power 4S 14.8V 5500mAh 25C LiPo Battery (XT60 and JST-XH connectors attached)
• Documentation and safety instructions

Why Choose ZOP Power 4S 14.8V 5500mAh 25C LiPo Battery

Whether you are flying heavy-lift aerial platforms, racing FPV quads, or powering high-performance RC vehicles, this ZOP Power LiPo battery combines capacity, discharge capability, and reliable connectors to deliver consistent, predictable power. Its balance of energy density and durability makes it a strong choice for hobbyists and professional users alike.

Note: Images are for Illustration Purposes Only.
