XT60 Battery Connectors Pair (500V 60A)

XT60 Battery Connectors Pair (500V 60A) — Overview

The XT60 Battery Connectors Pair (500V 60A) delivers reliable, low-resistance electrical connections for high-current and high-voltage applications. Built with heat-resistant nylon and gold-plated spring contacts, this male-female set is engineered for durability, safety, and efficient power transfer in demanding projects such as RC models, drones, electric vehicles, and robotics.

Why choose XT60 connectors?

• High current capability: supports up to 60A continuous loads for motors, ESCs, and battery packs
• High voltage rating: suitable for systems up to 500V
• Low contact resistance: gold-plated contacts reduce heat generation and improve efficiency
• Rugged construction: heat-resistant nylon housing withstands repeated use and soldering
• Vibration resistant: tight snap-fit design prevents accidental disconnection during operation

Specifications

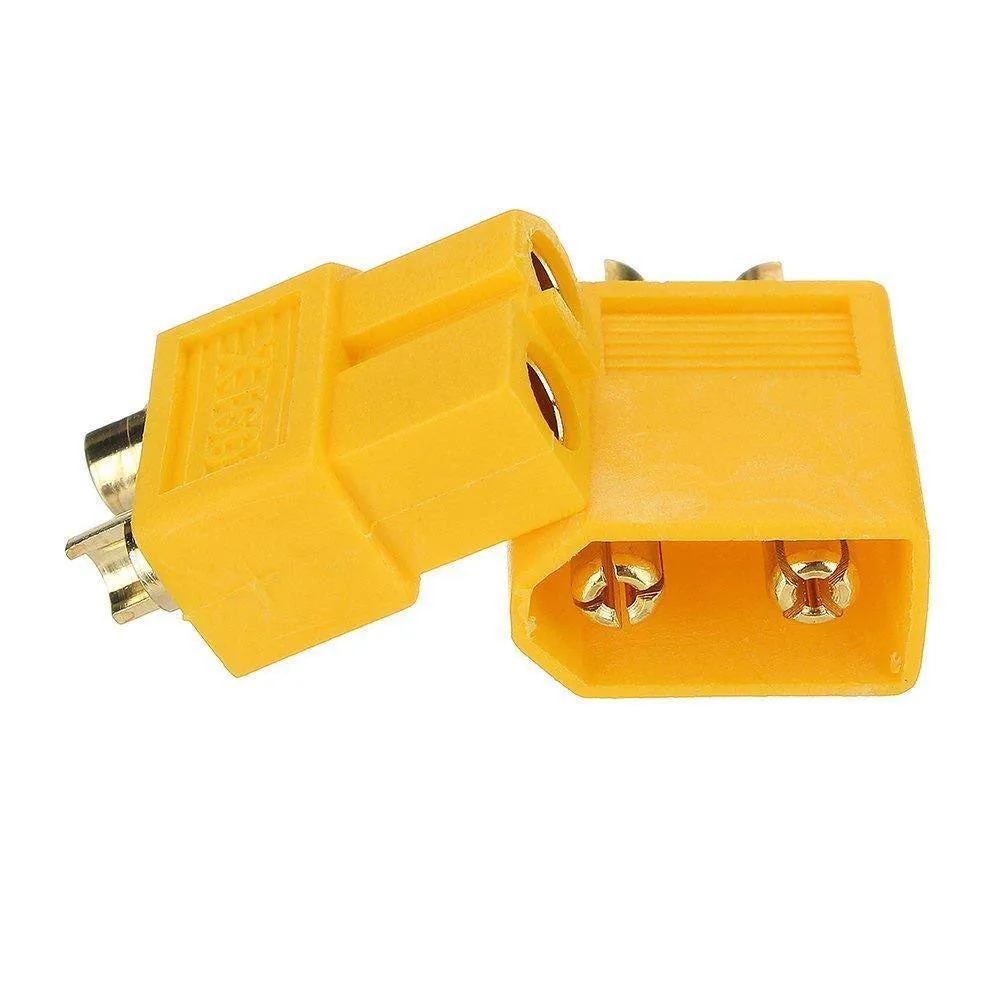

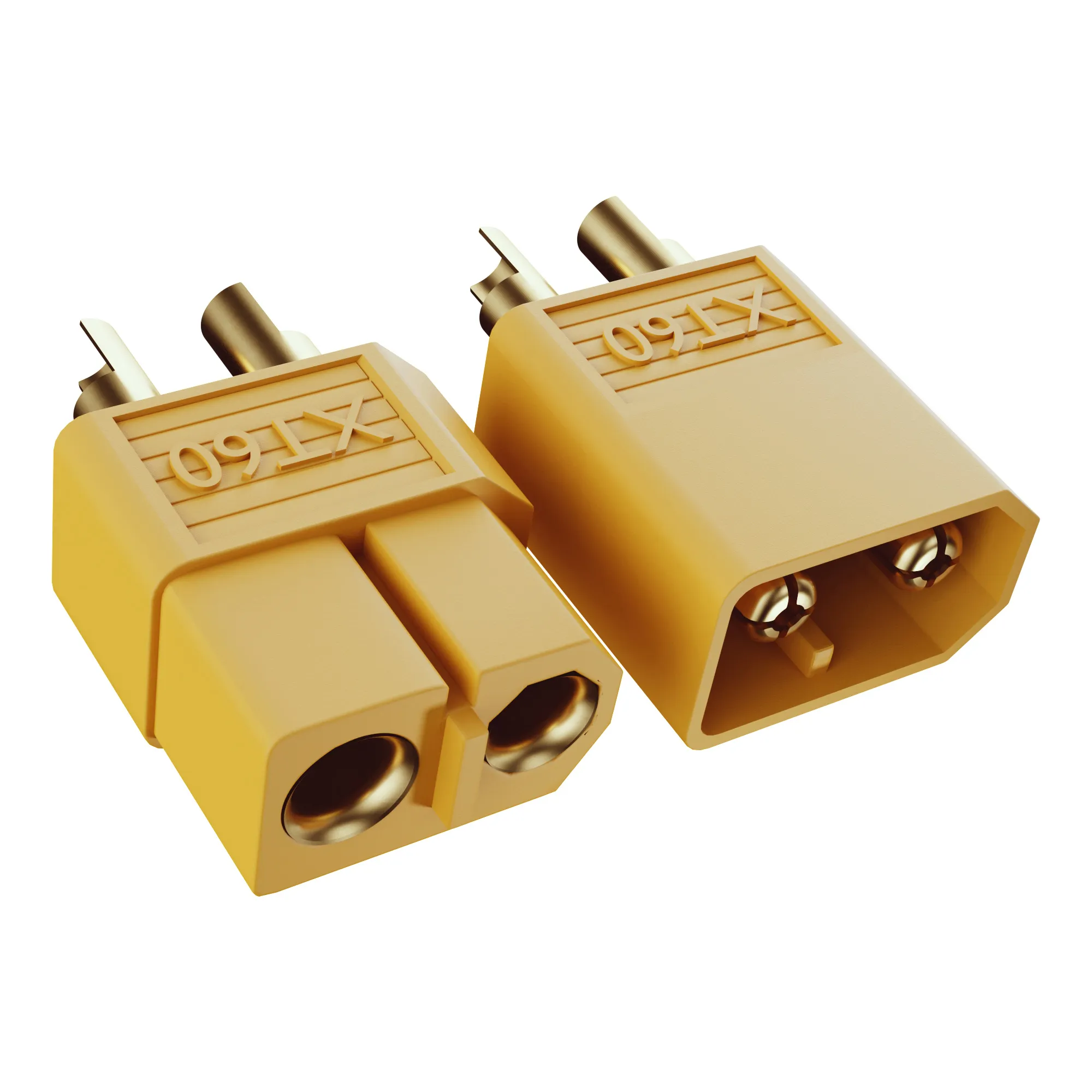

• Connector type: XT60 male + XT60 female
• Voltage rating: up to 500V
• Current rating: up to 60A continuous
• Housing material: heat-resistant nylon
• Contacts: gold-plated spring connectors for corrosion resistance and low resistance
• Solderable terminals: easy to solder for custom cable assemblies

Key Features

• Gold-plated connectors for improved conductivity and corrosion protection
• Durable nylon housing that resists heat and wear during soldering and operation
• Secure snap-fit connection to reduce the risk of accidental disconnects
• Low contact resistance for minimal heat build-up under load
• Compatible with LiPo battery packs, ESCs, motors, and many DIY power systems

Recommended Applications

• RC drones, cars, and planes
• Electric bicycles and small electric vehicles
• High-power robotics and automation systems
• DIY battery packs and custom power distribution
• Electronic speed controllers (ESCs) and motor connections

Installation and Soldering Tips

• Use a quality soldering iron and flux to ensure clean, reliable joints.
• Pre-tin both wire and connector terminals before soldering to improve heat transfer.
• Avoid overheating the nylon housing; apply heat only as long as needed for a good solder joint.
• Use appropriately sized wires (AWG) to match the 60A rating and minimize voltage drop.
• Inspect solder joints for cold joints or excess solder and secure connections with heat-shrink tubing.

Safety and Compatibility

Always match connector polarity and verify voltage and current requirements before use. While the XT60 pair is rated for high voltage and current, ensure the rest of your system (wiring, fuses, ESCs, battery cells) are rated to the same specifications to maintain safety and performance.

Package Contents

• 1 × XT60 Male Connector
• 1 × XT60 Female Connector

Note: Images are for illustration purposes only.
