The DS18B20 and LM35 are two versatile temperature sensors designed to accurately measure and monitor temperature in a wide range of applications. These sensors are ideal for use in environmental monitoring, home automation, industrial systems, and DIY projects. Both sensors offer distinct features and benefits, making them suitable for different needs based on the specific requirements of your project.
Key Features:
- DS18B20 Sensor:
- Digital Temperature Sensor: Provides precise digital temperature readings with a resolution of 9 to 12 bits, which can be configured for higher accuracy.
- One-Wire Interface: Uses a single data line for communication, simplifying wiring and reducing the need for multiple connections.
- Wide Operating Range: Measures temperatures from -55°C to +125°C, making it suitable for extreme environments.
- Multiple Sensors on One Bus: Supports multiple DS18B20 sensors on a single data bus, allowing for easy expansion and scalability.

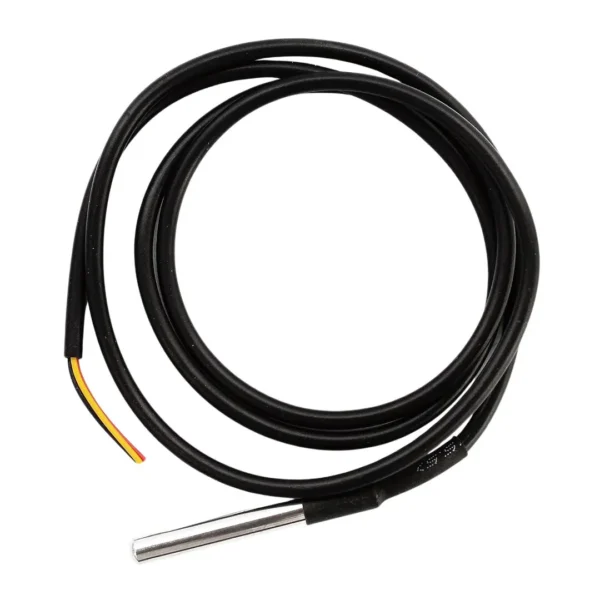

- Waterproof Version Available: A waterproof variant is available, ideal for immersion in liquids or use in wet environments.
- LM35 Sensor:
- Analog Temperature Sensor: Provides a linear analog output voltage that is directly proportional to the measured temperature.
- High Accuracy: Offers a typical accuracy of ±0.5°C, with a wide operating range from -55°C to +150°C.
- Low Power Consumption: Operates with minimal power, making it ideal for battery-operated devices and low-power applications.
- Easy to Use: Simple to interface with microcontrollers and analog input devices, with a straightforward voltage-to-temperature conversion.
- Compact Size: Its small form factor allows for integration into space-constrained projects.
Specifications:
- DS18B20:
- Temperature Range: -55°C to +125°C
- Accuracy: ±0.5°C (between -10°C to +85°C)
- Communication Protocol: One-Wire
- Supply Voltage: 3.0V to 5.5V
- Resolution: 9 to 12 bits (configurable)
- LM35:
- Temperature Range: -55°C to +150°C
- Accuracy: ±0.5°C (at room temperature)
- Output Voltage: 10mV per °C
- Supply Voltage: 4V to 30V
- Current Consumption: Less than 60µA
Applications:
- Environmental Monitoring: Ideal for use in weather stations, greenhouses, and HVAC systems.
- Home Automation: Perfect for smart thermostats, temperature monitoring, and climate control.
- Industrial Systems: Suitable for temperature regulation and safety monitoring in machinery and equipment.
- DIY Projects: Great for hobbyists and makers looking to add temperature sensing capabilities to their projects.
Note: Images are for Illustration Purposes Only.
