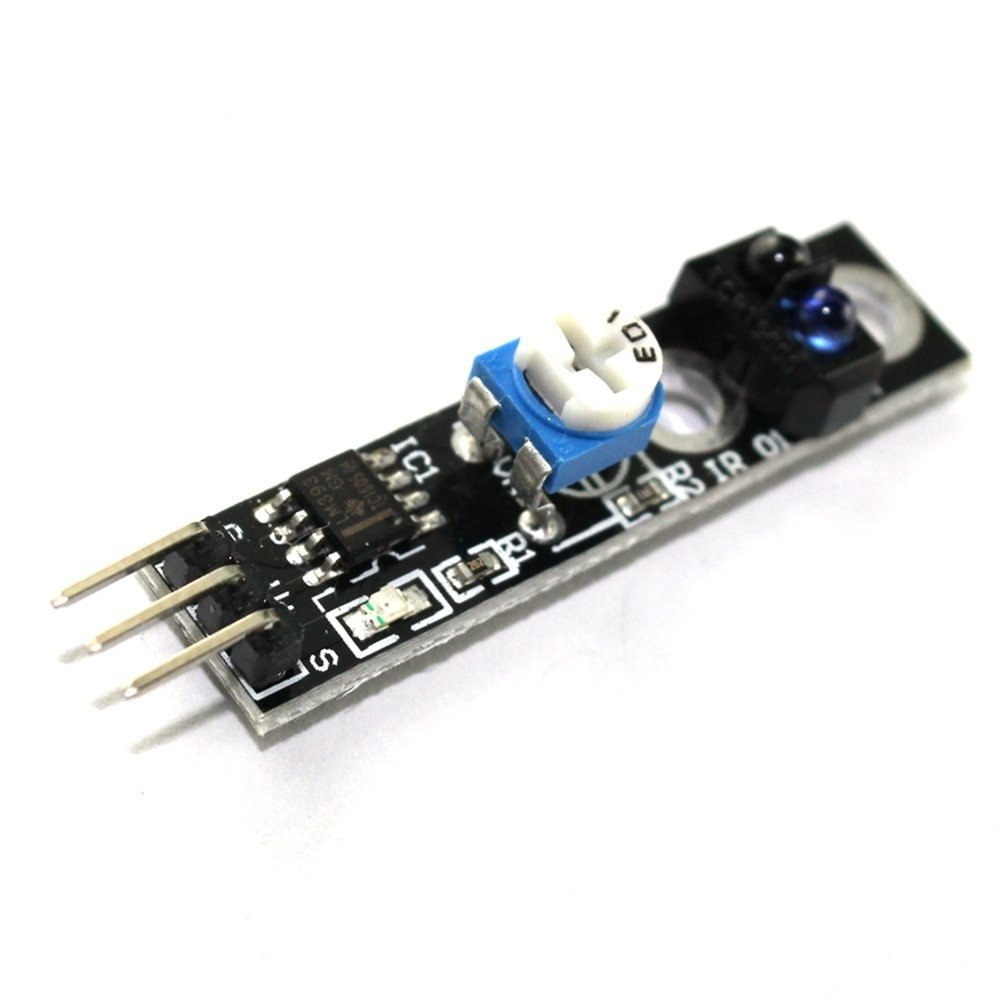

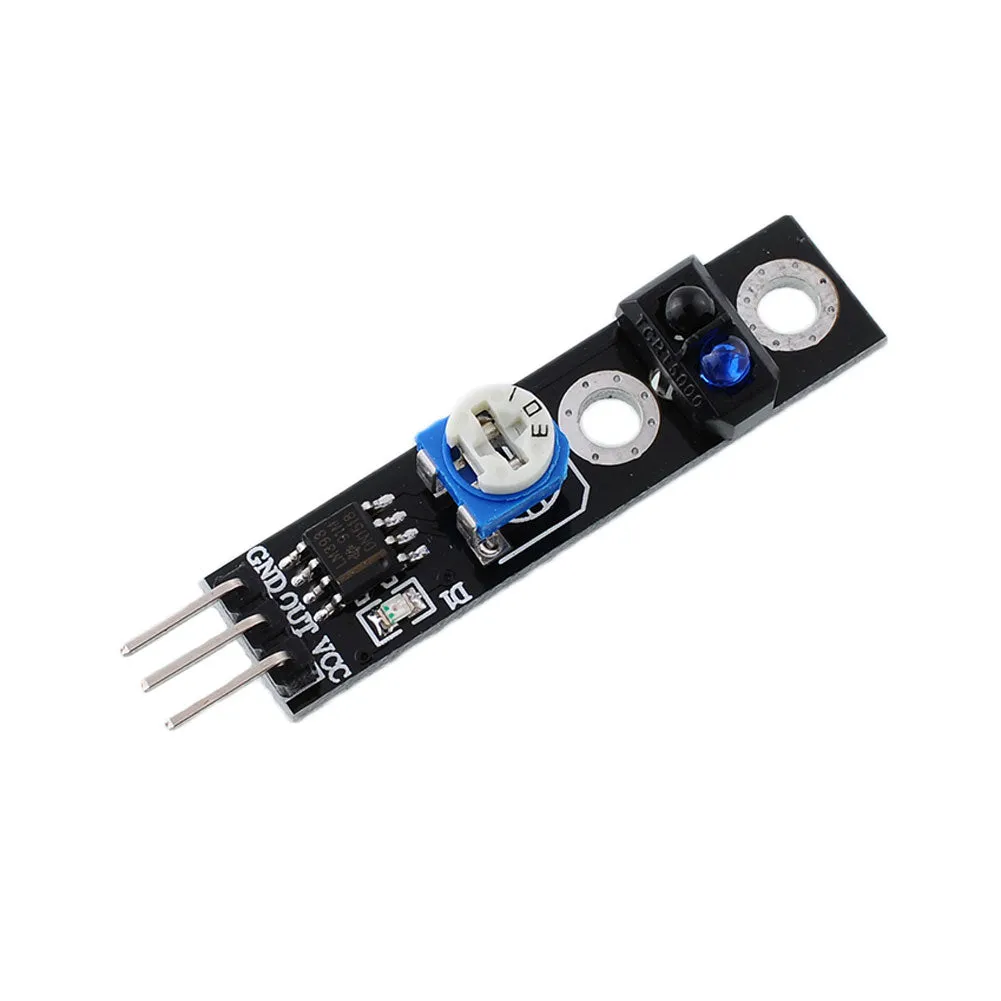

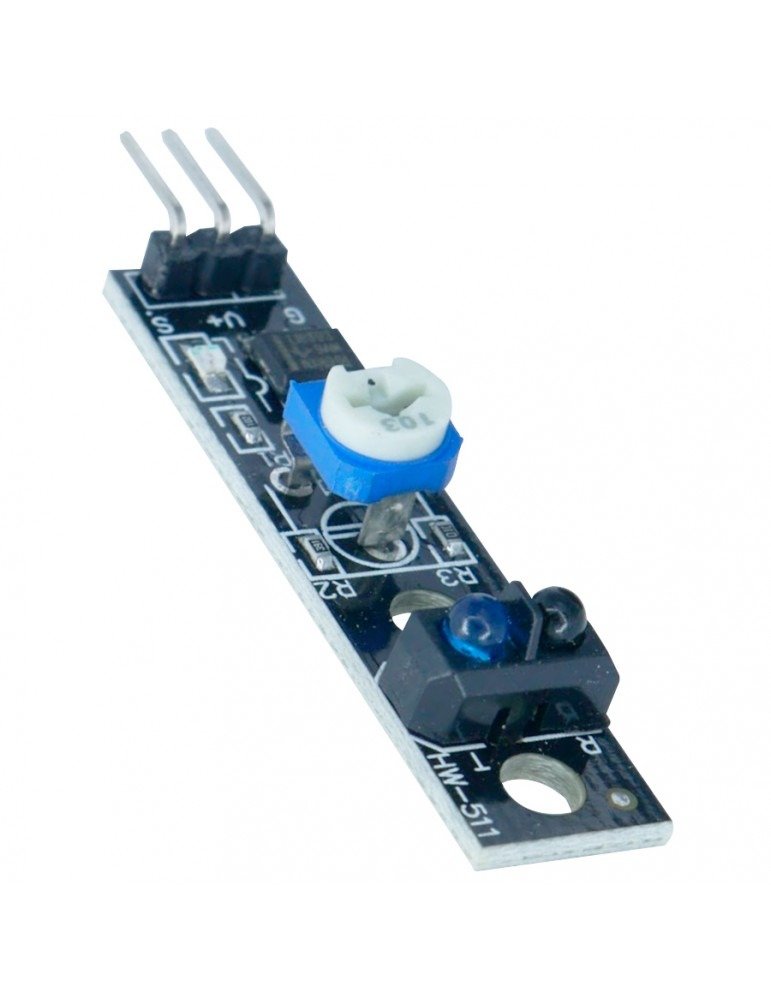

TCRT5000 IR Sensor Line Tracking Module

TCRT5000 Module – Smart IR Sensor for Line Tracking and Obstacle Detection

Overview

The TCRT5000 IR sensor module is a compact, cost-effective infrared line tracking and proximity sensor designed for robotics and automation projects. Using infrared reflective technology, this module reliably distinguishes dark lines from light backgrounds, enabling accurate line following and simple obstacle detection in mobile robots and automated vehicles.

How the TCRT5000 Works – Infrared Reflective Sensing

The module emits infrared light and measures reflections with a phototransistor. White or reflective surfaces return more IR light, producing a stronger signal, while black or absorptive surfaces return less. Your microcontroller reads the sensor output to decide motion or steering corrections.

Key Features

• IR reflective sensing for stable line detection on varied surfaces
• Digital output for easy connection to GPIO or analog input with thresholding
• Low power consumption ideal for battery-powered robots
• Compact footprint that fits most chassis and sensor arrays
• Durable optical components for consistent performance in changing light
• Simple wiring and quick calibration for beginners and educators

Technical Specifications

• Sensor type: TCRT5000 reflective IR sensor pair (IR LED and phototransistor)
• Outputs: Digital signal (logic level) – can be read by Arduino/RPi
• Supply voltage: typically 3.3V to 5V
• Power consumption: low current draw for long runtime
• Mounting: small PCB module suitable for multi-sensor arrays
• Operating environment: indoor use recommended for best accuracy

Compatibility and Typical Applications

• Arduino line follower robots and educational kits
• Raspberry Pi robotics and simple machine vision preprocessing
• Obstacle avoidance, edge detection, and automated guidance sensors
• Prototyping sensor arrays for navigation and position feedback

Wiring and Quick Start – Connect to Arduino

• VCC – connect to 3.3V or 5V depending on your board
• GND – connect to common ground
• OUT – digital output to a digital input pin on your microcontroller

Basic steps: mount the sensor close to the ground, read the OUT pin in a loop, and adjust a detection threshold in code. Combine two or more modules to build responsive line followers that steer using sensor differences.

Practical Tips for Best Performance

• Calibrate sensor thresholds under the same lighting conditions as your robot will operate
• Use multiple sensors for smoother steering and redundancy
• Keep the sensor close to the surface but avoid contact to prevent wear
• Filter noisy readings in software with simple averaging or hysteresis

TCRT5000 Datasheet and Further Resources

Refer to the TCRT5000 datasheet for detailed electrical characteristics, recommended resistor values for the IR LED, and phototransistor response curves. Community tutorials and example Arduino sketches are widely available to speed up development.

Why Choose the TCRT5000 IR Line Tracking Module

This module balances simplicity, reliability, and affordability. It is perfect for students, hobbyists, and prototype developers who need dependable line detection and basic proximity sensing without complex setup.

Note: Pictures are for illustration purposes only.
