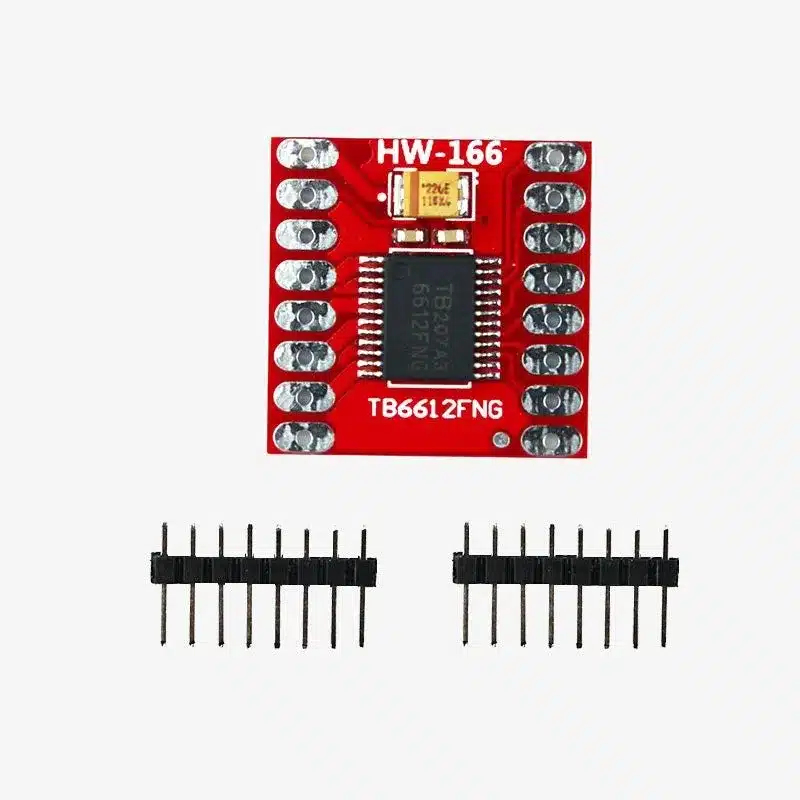

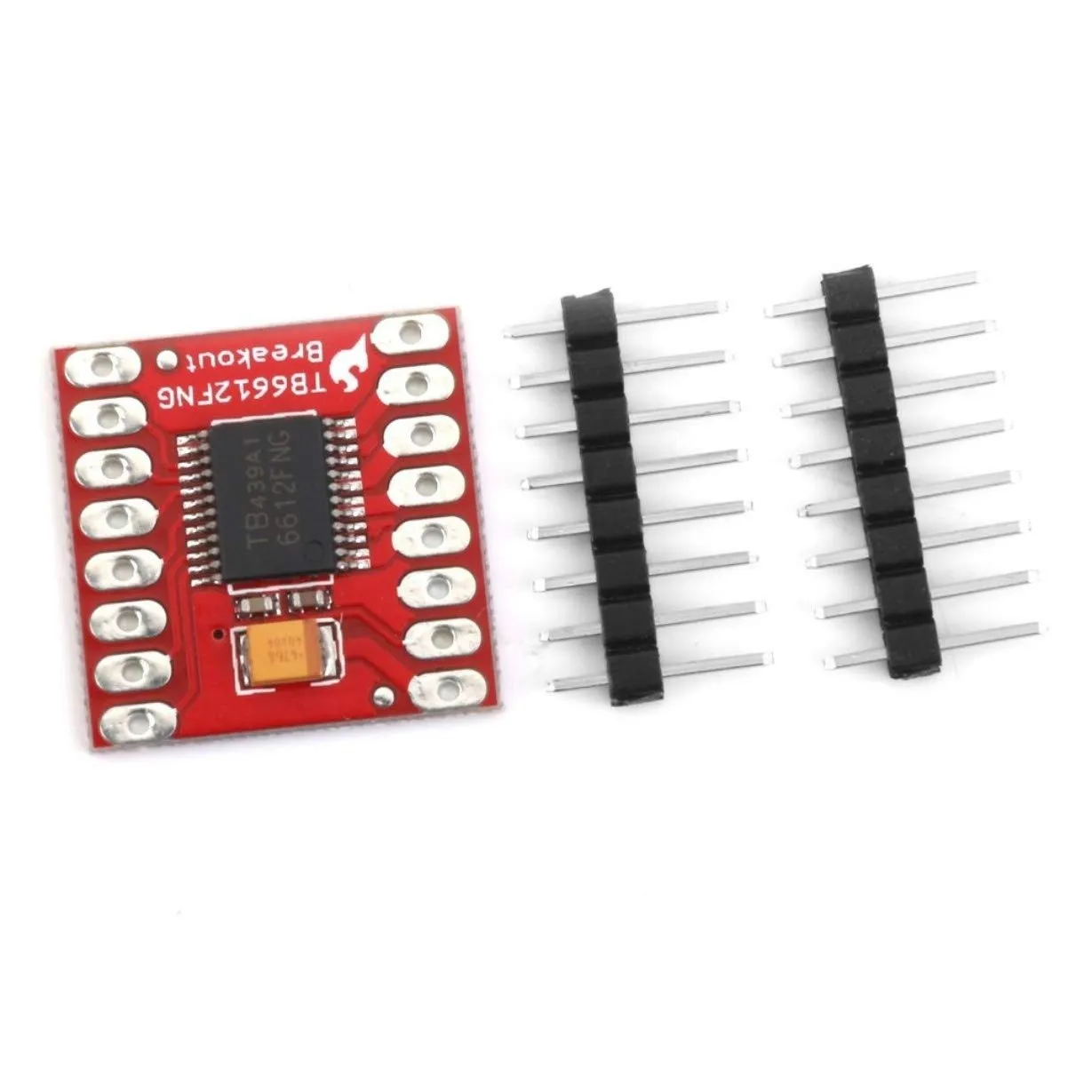

The TB6612FNG Dual Stepper Motor Driver Module is a compact and powerful solution for driving stepper motors or two DC motors with precision and efficiency. Equipped with Toshiba’s TB6612FNG motor driver IC, this module delivers exceptional performance in robotics, automation, and motor control projects.
The module supports bidirectional control of up to two motors with a peak output current of 3A per channel (1.2A continuous), making it suitable for various low-to-medium power applications. Its onboard components and compact design allow seamless integration into your projects, ensuring reliable operation and enhanced motor control.
Key Features:
- Dual Motor Control: Supports independent control of two DC motors or one stepper motor.
- High Efficiency: Low standby current and efficient power usage for long-lasting performance.
- Wide Voltage Range: Operates from 2.7V to 15V, ideal for diverse applications.
- Current Handling: Provides up to 1.2A continuous current per channel (3A peak).
- PWM Control: High-frequency PWM input ensures smooth motor operation and precise speed control.
- Thermal Protection: Built-in overcurrent and thermal protection for reliable operation.
- Compact Design: Lightweight and easy to integrate into compact projects.
- Compatibility: Works seamlessly with Arduino, Raspberry Pi, and other microcontrollers.
Specifications:
- IC Chip: TB6612FNG
- Input Voltage: 2.7V to 15V
- Output Current: 1.2A continuous, 3A peak per channel
- Control Method: PWM (Pulse Width Modulation)
- Dimensions: 22mm x 18mm x 3mm (approx.)
- Weight: 2.5g (approx.)
Applications:
- Driving stepper motors in CNC machines, 3D printers, and robotics.
- Controlling DC motors in smart cars, automated systems, and toys.
- Ideal for projects requiring compact and efficient motor drivers.
Note: Images are for illustration purposes only. Actual product design and appearance may vary.
