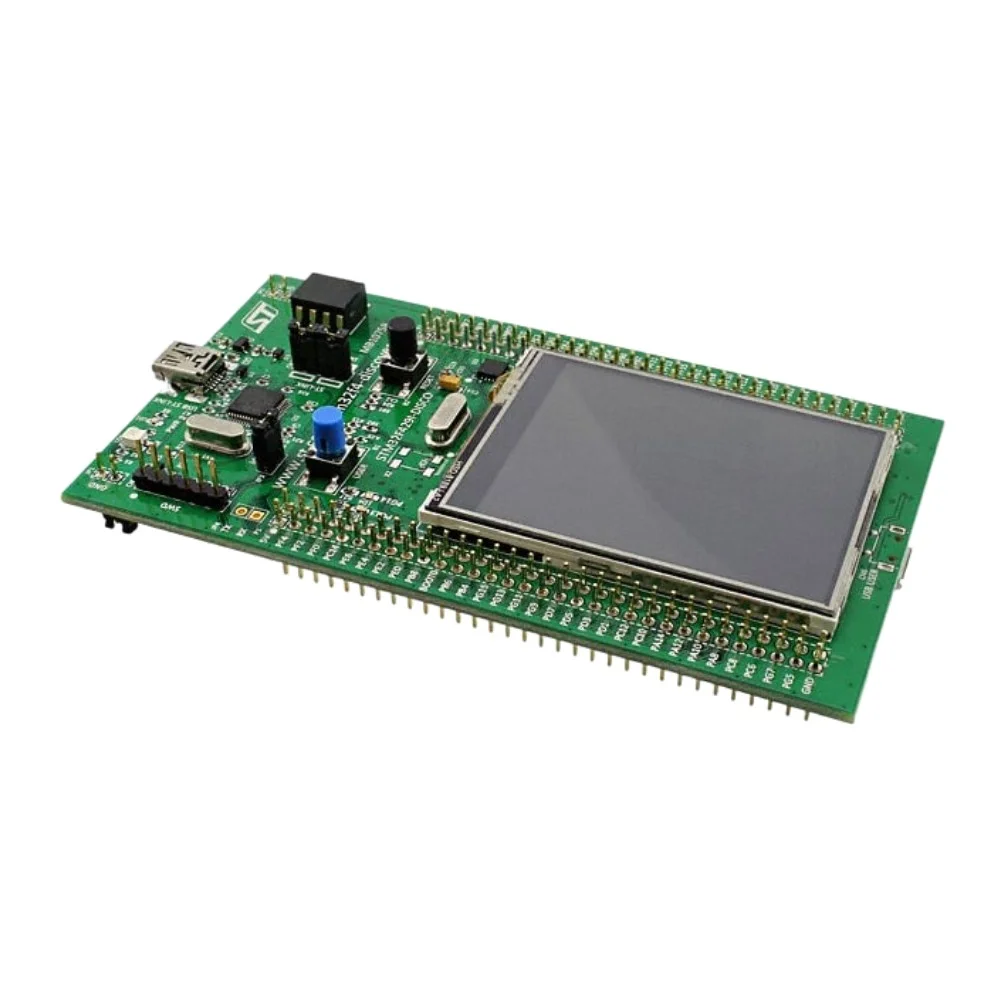

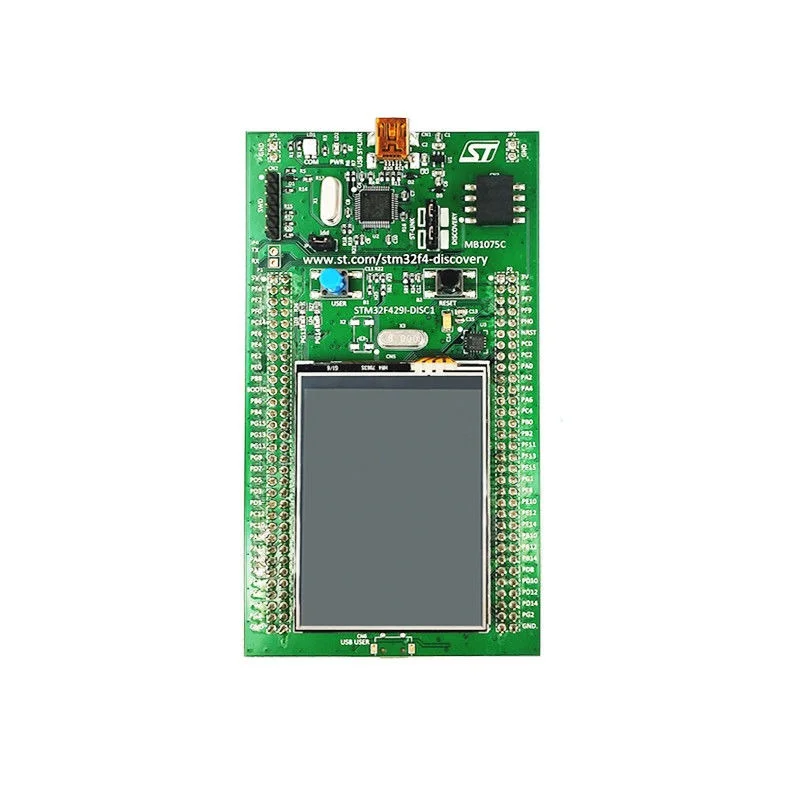

STM32 Discovery Kit Development Board (STM32F429I)

Availability:

In stock


  • High-performance MCU: ARM Cortex-M4 core up to 180 MHz for demanding embedded applications.
  • Large memory: 2MB Flash and 256KB SRAM to host complex firmware and data.
  • Integrated 2.4″ TFT: Touchscreen-enabled display for graphical user interfaces and controls.
  • Wide connectivity: USART, I2C, SPI, CAN and USB OTG for sensor and peripheral integration.
  • On-board debugger: ST-LINK/V2-1 for easy programming and real-time debugging.
  • Expandable ecosystem: Compatible with STM32 Nucleo boards, shields and popular development tools.

 15,500  18,000

In stock

Overview

The STM32 Discovery Kit Development Board (STM32F429I) is a turnkey prototyping platform built around the STM32F429 microcontroller. Combining an ARM Cortex-M4 core, generous memory, an integrated 2.4″ TFT touchscreen and a full set of peripherals, this board accelerates development for embedded systems, IoT devices, educational projects and graphical user interfaces.

Key Features

Performance and Memory

  • ARM Cortex-M4 core running up to 180 MHz for real-time and DSP-accelerated tasks.
  • Flash & SRAM: 2MB Flash and 256KB SRAM to support large firmware, graphics libraries and data buffers.

Display and User Interface

  • 2.4″ TFT LCD with touchscreen support for building interactive, high-resolution user interfaces.
  • Ideal for demo UIs, control panels and graphical data visualization.

Connectivity and Peripherals

  • Multiple serial interfaces: USART, I2C, SPI for sensors and modules.
  • CAN support for automotive and industrial networks.
  • USB OTG for host/device communication and external storage.

Debugging and Expansion

  • On-board ST-LINK/V2-1 debugger/programmer for fast flashing and step-through debugging.
  • Compatible with STM32 Nucleo boards and shields to expand I/O and add functionality.

Specifications

  • Microcontroller: STM32F429I (ARM Cortex-M4)
  • Clock Speed: Up to 180 MHz
  • Flash Memory: 2MB
  • SRAM: 256KB
  • Display: 2.4″ TFT LCD (touchscreen)
  • Connectivity: USART, I2C, SPI, CAN, USB OTG
  • Operating Voltage: 3.3V
  • Dimensions: 100 mm x 50 mm

Applications

  • Embedded systems: Automotive, industrial controllers and consumer electronics prototyping.
  • IoT projects: Edge processing with sensor networks and real-time communication.
  • Prototyping and development: Rapid proof-of-concept and feature validation.
  • Education: Hands-on learning for microcontrollers, RTOS, and embedded graphics.

Development Tools and Support

  • Supported by STM32CubeMX for configuration and code generation.
  • Toolchain compatibility: IAR Embedded Workbench and Keil MDK.
  • Extensive community resources, examples and tutorials to speed up development.

Why Choose the STM32F429I Discovery Kit

  • Combined graphics capability and real-time performance makes it perfect for UI-driven applications.
  • Large memory footprint supports advanced algorithms, graphics libraries and network stacks.
  • On-board debugger and broad toolchain support reduce setup time and ease debugging.
  • Compatibility with STM32 ecosystem enables flexible expansion and reuse of libraries.

Getting Started

  1. Install STM32CubeMX to configure peripherals and generate initialization code.
  2. Choose your toolchain (IAR, Keil or GCC) and import the generated project.
  3. Use the on-board ST-LINK/V2-1 to flash firmware and debug in real time.
  4. Explore example projects and the online community to accelerate development.

Box Contents and Notes

  • Discovery board with integrated 2.4″ TFT touchscreen.
  • On-board ST-LINK/V2-1 debugger and USB cable may be required (check product listing).
  • Note: Images are for illustration purposes only. Actual product may vary slightly in appearance.

Conclusion

The STM32 Discovery Kit Development Board (STM32F429I) delivers a balanced mix of performance, memory and I/O suitable for complex embedded projects. Whether you are building IoT edge devices, interactive control panels or teaching embedded systems, this board provides a solid and expandable platform to accelerate development.
