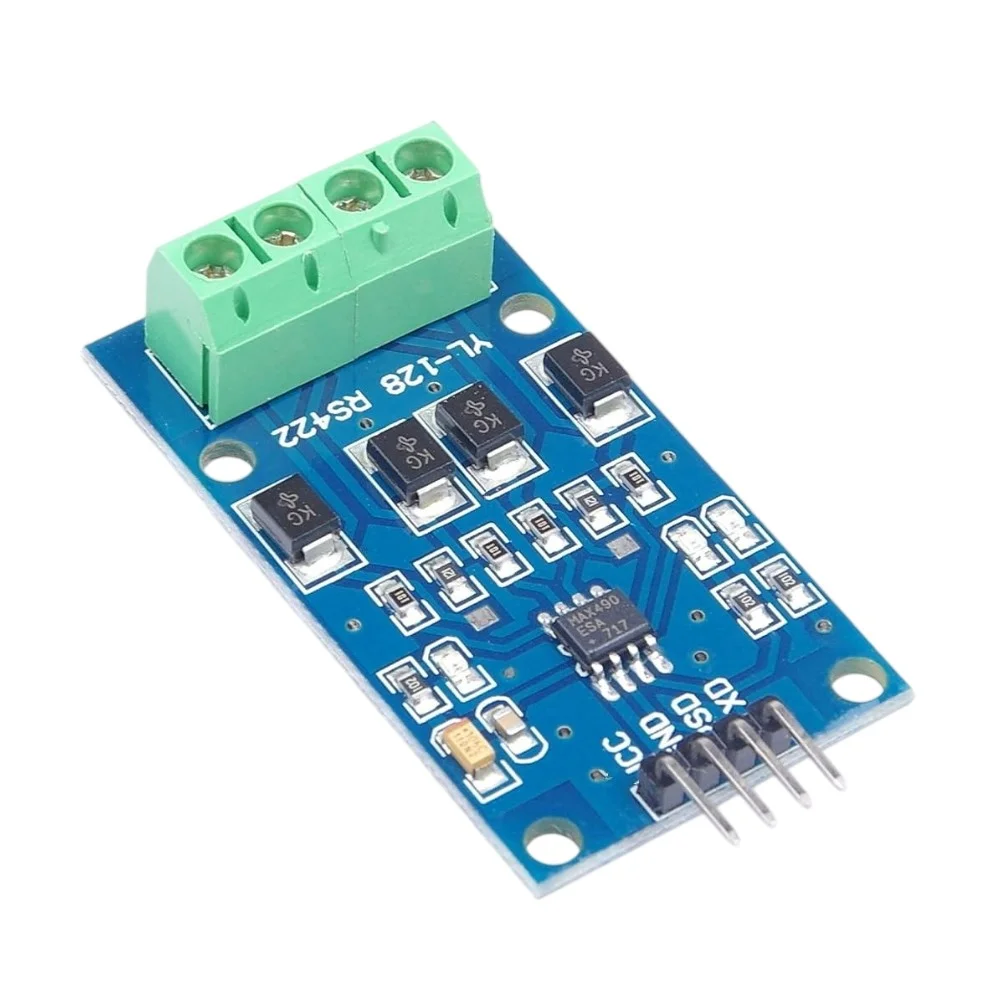

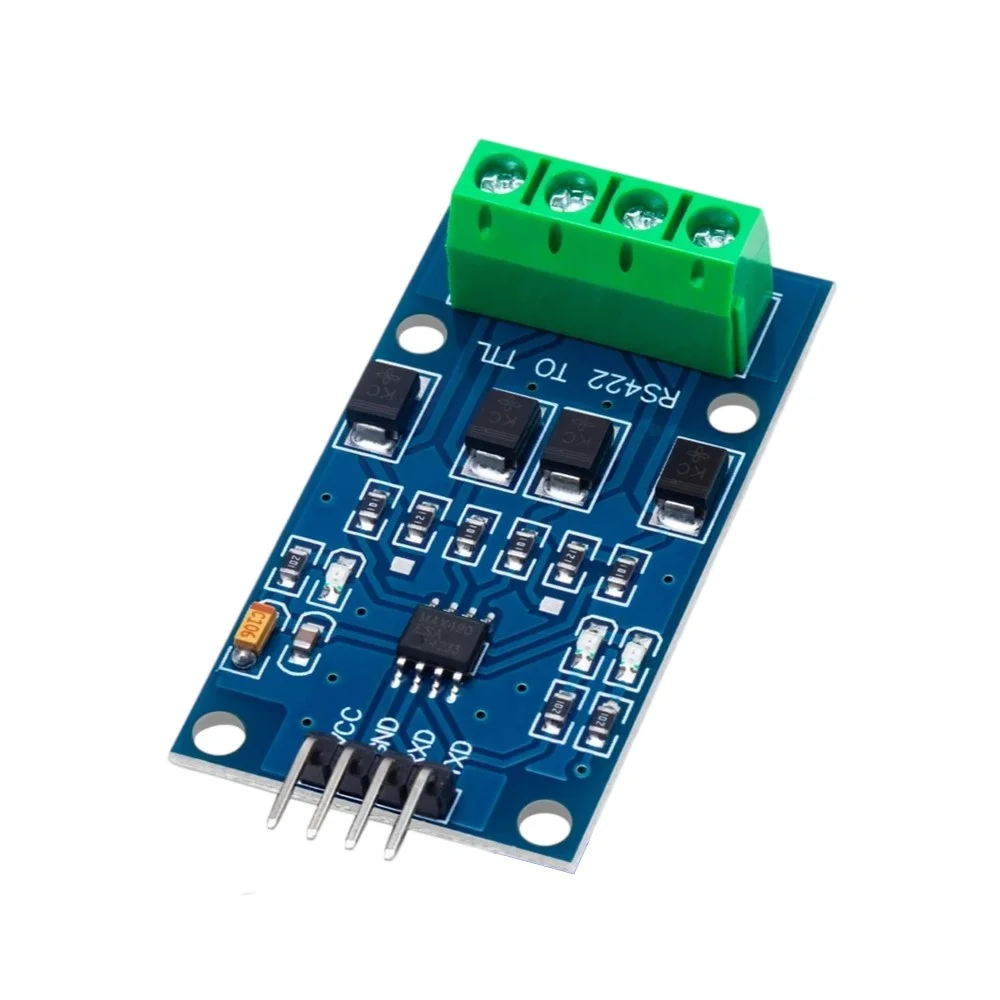

RS422-TTL Full Duplex MAX490 to TTL Module

Availability:

In stock


– Full-duplex RS422 to TTL conversion using the MAX490 transceiver
– Bidirectional, stable data transfer for long-distance serial links
– Compatible with Arduino, microcontrollers, robotics, UAVs and industrial systems
– Easy integration: TTL-level TX/RX pins plus differential RS422 A/B pairs
– Ideal for serial communication modules, RC systems, IoT and control systems
– Buy online in Pakistan for fast delivery and reliable signal conversion

 550

In stock

Reliable RS422 to TTL Signal Conversion

The RS422-TTL Full Duplex MAX490 to TTL Module provides dependable conversion between differential RS422 signals and TTL-level serial signals. Designed for Arduino and embedded systems, this module supports full-duplex, bidirectional communication for robust, low-noise data links in applications such as robotics, UAVs and industrial control systems.

Key Features

  • MAX490-based transceiver for reliable RS422 to TTL conversion
  • Full-duplex operation for simultaneous TX and RX
  • TTL logic compatibility for direct connection to Arduino and microcontrollers
  • Supports long-distance differential signaling with improved noise immunity
  • Compact PCB design for easy integration into projects and control panels

Applications

  • Arduino serial interfaces and embedded systems
  • Robotics and UAV communication links
  • Industrial automation and control systems
  • IoT gateways and remote telemetry
  • RC systems and custom serial peripherals

Technical Overview

This module converts differential RS422 pairs into TTL-level serial signals and vice versa, using the MAX490 transceiver. It is optimized for low-noise, stable communication over serial links and simplifies integration between RS422 devices and 5V TTL-compatible microcontrollers.

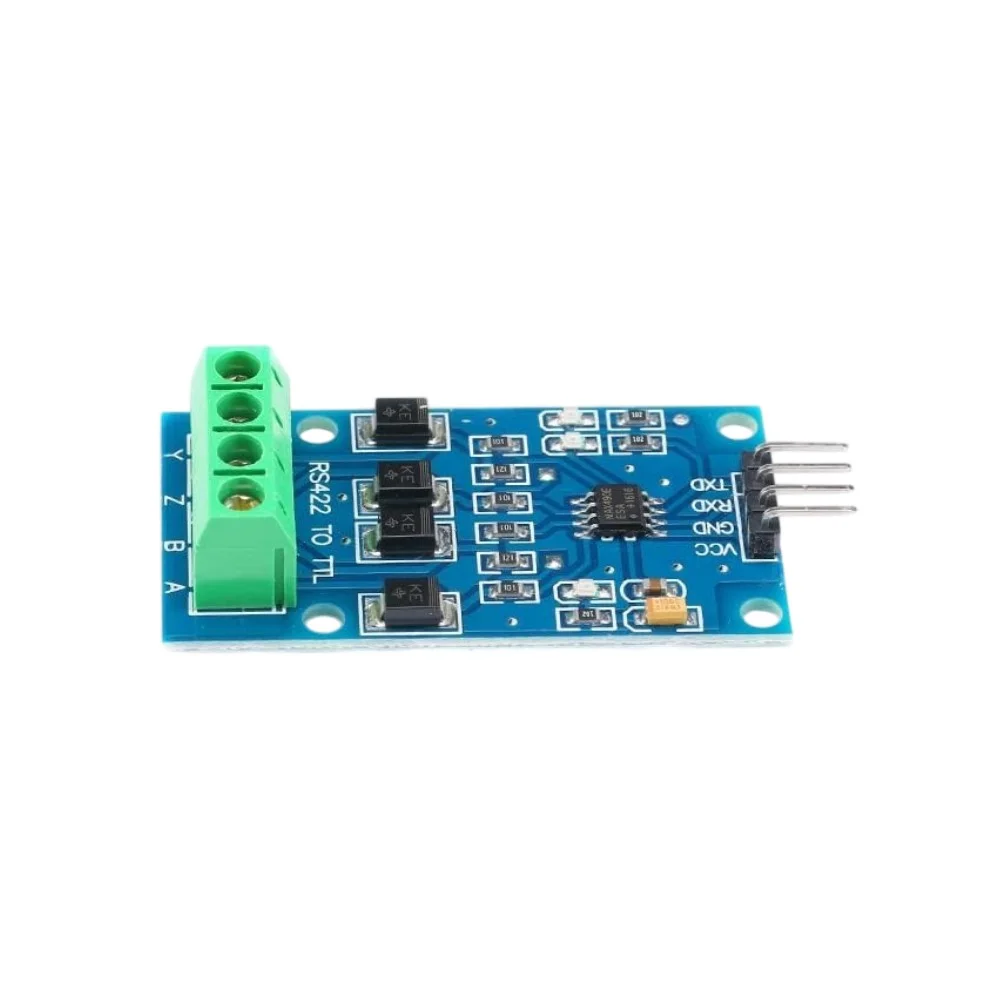

Typical Pinout and Connections

  • VCC: Module supply voltage (connect to 5V where applicable)
  • GND: Ground reference
  • TTL TX: Transmit output to microcontroller RX
  • TTL RX: Receive input from microcontroller TX
  • RS422 A/B (TX+ / TX-): Differential transmit pair to RS422 device
  • RS422 A/B (RX+ / RX-): Differential receive pair from RS422 device

Wiring Tips

  • Match TX to RX between devices (module TTL TX to MCU RX and module TTL RX to MCU TX).
  • Use twisted-pair cabling for RS422 A/B lines to maintain signal integrity over distance.
  • Ensure a common ground between devices when required by the system.
  • Keep RS422 differential pairs away from high-current traces to reduce interference.

Integration and Compatibility

The module is plug-and-play for most 5V TTL microcontrollers, including Arduino boards. It is suitable for serial communication modules and can act as an interface converter where RS422 devices must communicate with TTL-level systems. The small form factor makes it easy to mount inside enclosures or control cabinets.

Why Choose This RS422 to TTL Module

  • Reliable full-duplex conversion for continuous two-way communication
  • MAX490 transceiver ensures stable performance in noisy environments
  • Reduces protocol complexity when integrating industrial and embedded equipment
  • Designed for quick integration into Arduino projects and professional systems

Purchase Information

Buy online in Pakistan today to improve your system communication with a robust RS422 to TTL converter. Fast shipping and straightforward compatibility make this module a practical choice for developers and engineers.

Note: Images are for illustration purposes only.
