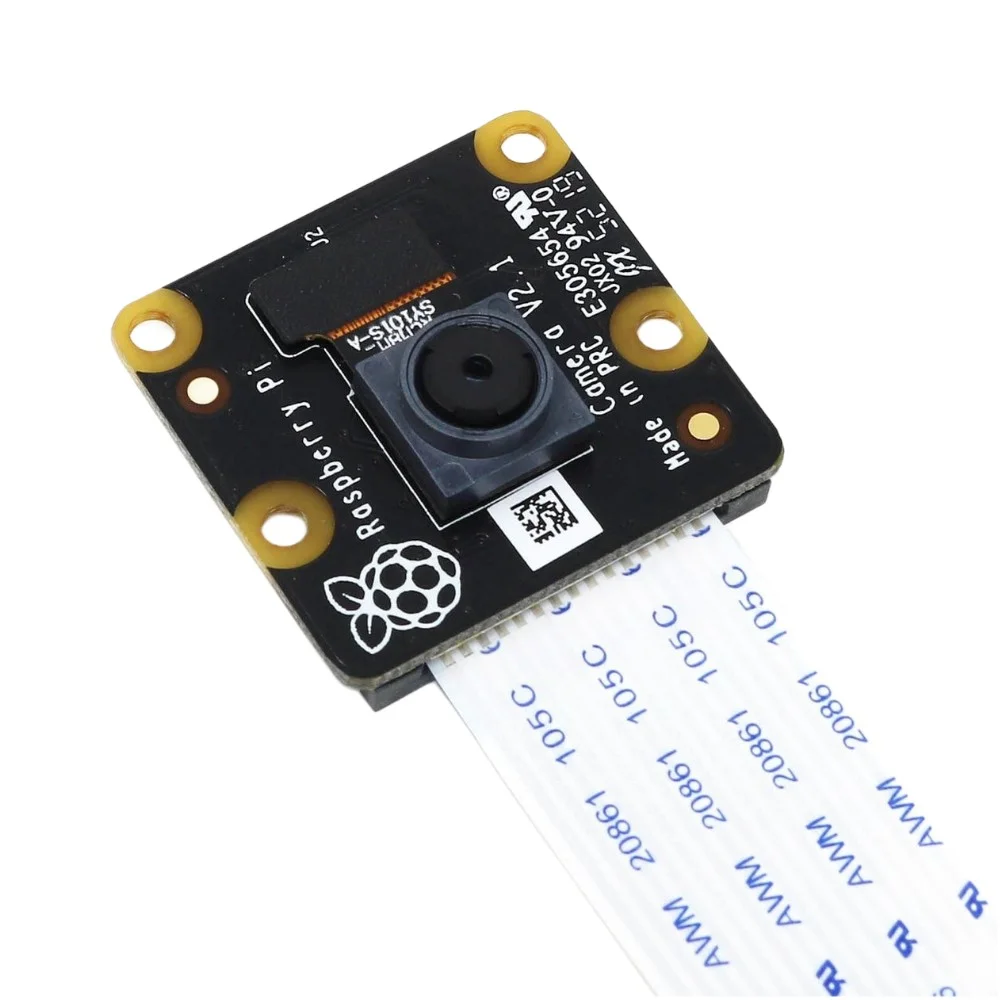

Raspberry Pi NoIR Night Vision Camera Module V2 8MP

Raspberry Pi NoIR Night Vision Camera Module V2 8MP – Official Camera for Low-Light Applications

The Raspberry Pi NoIR Camera Module V2 (8MP) is an official high-quality camera designed specifically for Raspberry Pi boards, featuring a Sony IMX219 image sensor and infrared (NoIR) capability. Unlike standard cameras, it does not include an IR filter, allowing it to capture images in low-light and complete darkness (with IR illumination).

This makes it ideal for night vision systems, surveillance, robotics, and machine vision applications.

Key Features of the NoIR Camera Module V2

• 8MP Sony IMX219 Sensor: High-resolution image capture
• NoIR (No Infrared Filter): Enables night vision with IR light
• Full HD Video Recording: Supports multiple resolutions
• Direct CSI Interface: Fast and stable connection to Raspberry Pi
• Compact & Lightweight: Perfect for embedded and portable projects
• Official Raspberry Pi Camera Module
• Plug-and-Play Support: Fully supported in Raspberry Pi OS

Technical Specifications

• Sensor: Sony IMX219 (8 Megapixel)
• Still Image Resolution: 3280 × 2464 pixels
• Video Modes:
  • 1080p @ 30fps
  • 720p @ 60fps
  • 480p @ 90fps
• Lens Type: Fixed focus
• Field of View: ~62° diagonal
• Interface: CSI (Camera Serial Interface)
• Board Dimensions: ~25 × 23 × 9 mm
• Cable: 15-pin ribbon cable
• Weight: ~3g

What is NoIR (Night Vision) Technology?

• NoIR = No Infrared Filter
• Can detect infrared light, invisible to human eyes
• Works in complete darkness with IR LEDs
• Daylight images may appear slightly reddish or washed due to IR sensitivity

How Does the NoIR Camera Work?

The camera connects to the Raspberry Pi via the CSI port, allowing high-speed image transfer.

• Captures light using the IMX219 sensor
• Detects both visible + infrared light
• Processes image via Raspberry Pi GPU
• Outputs images/videos using software like libcamera or raspistill

Applications and Use Cases

• Night vision surveillance systems
• Security cameras (CCTV projects)
• Wildlife monitoring
• Robotics and AI vision projects
• Time-lapse photography
• Plant growth monitoring
• Motion detection systems

Advantages of the NoIR Camera Module

• Excellent low-light performance
• True night vision capability (with IR LEDs)
• Small size and lightweight
• Native Raspberry Pi support
• High image quality for DIY projects

Usage Tips and Best Practices

• Use IR LEDs (850nm or 940nm) for night vision
• Avoid using in bright sunlight if accurate colors are needed
• Handle ribbon cable carefully (delicate CSI connector)
• Enable camera via Raspberry Pi settings (raspi-config or libcamera)

Compatibility Information

• Raspberry Pi 1, 2, 3, 4
• Raspberry Pi Zero (requires adapter cable)
• Raspberry Pi 5 (adapter may be required)

Note: Images are for Illustration Purposes Only.
