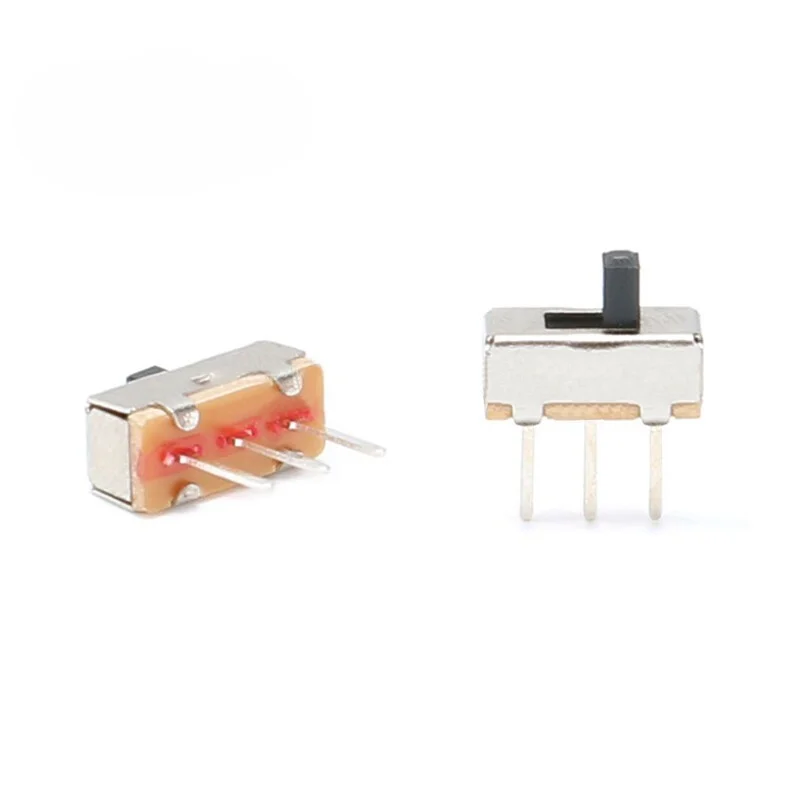

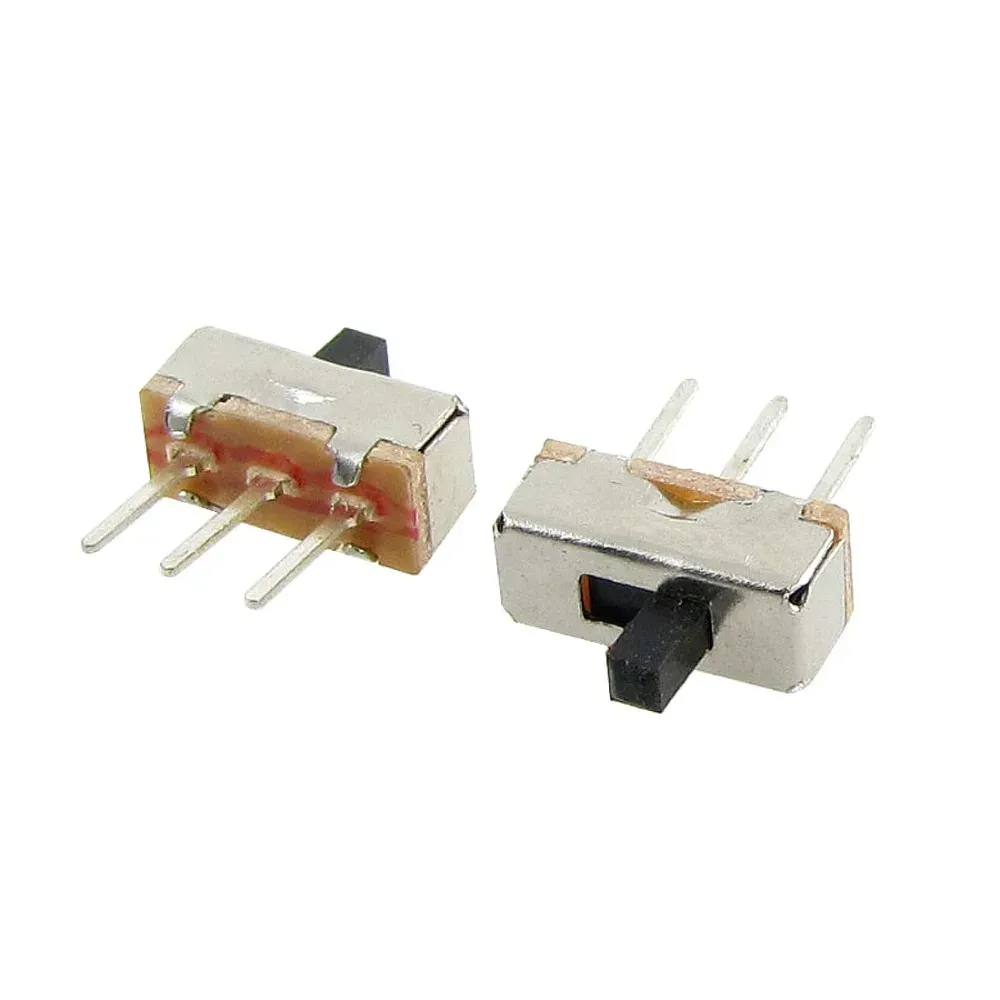

Mini Sliding On/Off Switch (SS12D00G3)


– Compact SPDT slide switch ideal for space-limited projects
– Sliding actuator with clear tactile On/Off feedback
– Through-hole mounting for easy PCB soldering
– Durable design for repeated switching cycles
– Suitable for Arduino, robotics, and embedded systems
– Handles moderate current and voltage for low-power circuits

 15  20

Mini Sliding On/Off Switch (SS12D00G3) Overview

The Mini Sliding On/Off Switch (SS12D00G3) is a compact SPDT (Single Pole Double Throw) slide switch designed for reliable power and signal control in small electronic projects. Its small footprint and through-hole mounting make it an excellent choice for prototyping, DIY electronics, Arduino shields, robotics, and embedded systems where board space is limited.

Key Features of the SS12D00G3

  • Model: SS12D00G3 Mini Sliding Switch
  • Type: SPDT (Single Pole Double Throw) for On/Off or signal selection
  • Operation: Smooth sliding actuator with positive tactile feedback
  • Mounting: Through-hole for easy PCB soldering and mechanical stability
  • Compact Size: Designed to fit in small enclosures and portable devices
  • Durable Design: Built for repeated actuation and long-lasting performance

Technical Specifications

  • Contact configuration: SPDT (one common, two throws)
  • Operation: Manual slide actuator, On/Off control
  • Mounting style: Through-hole pins for PCB or perfboard
  • Electrical rating: Suitable for moderate current and voltage levels in low-power circuits (check your circuit requirements before use)
  • Applications: Power switching, mode selection, and small-signal routing

Applications and Use Cases

  • Power On/Off control for battery-powered devices and small gadgets
  • Mode selection in DIY electronics, audio projects, and custom controllers
  • Robotics and embedded systems for simple input selection
  • Prototyping on breadboards and custom PCBs
  • Signal switching in low-voltage circuits where compact size is required

Installation and Best Practices

  • Verify the switch rating against your circuit voltage and current to ensure safe operation.
  • Use proper soldering techniques to secure through-hole pins and avoid cold joints.
  • Mount the switch with enough clearance to allow the actuator to slide freely within your enclosure.
  • For repeated mechanical stress, consider reinforcing the PCB area around the switch with additional support or epoxy.
  • When using with microcontrollers (Arduino, etc.), add current-limiting resistors or protective components as needed for your design.

Why Choose the SS12D00G3 Mini Sliding Switch

  • Excellent balance of compact size and reliable tactile feedback.
  • Through-hole design simplifies soldering and mechanical stability on PCBs.
  • Versatile SPDT configuration supports both power switching and simple signal routing.
  • Widely used in maker projects, educational electronics, and small commercial devices.

Note: Images are for Illustration Purposes Only.
