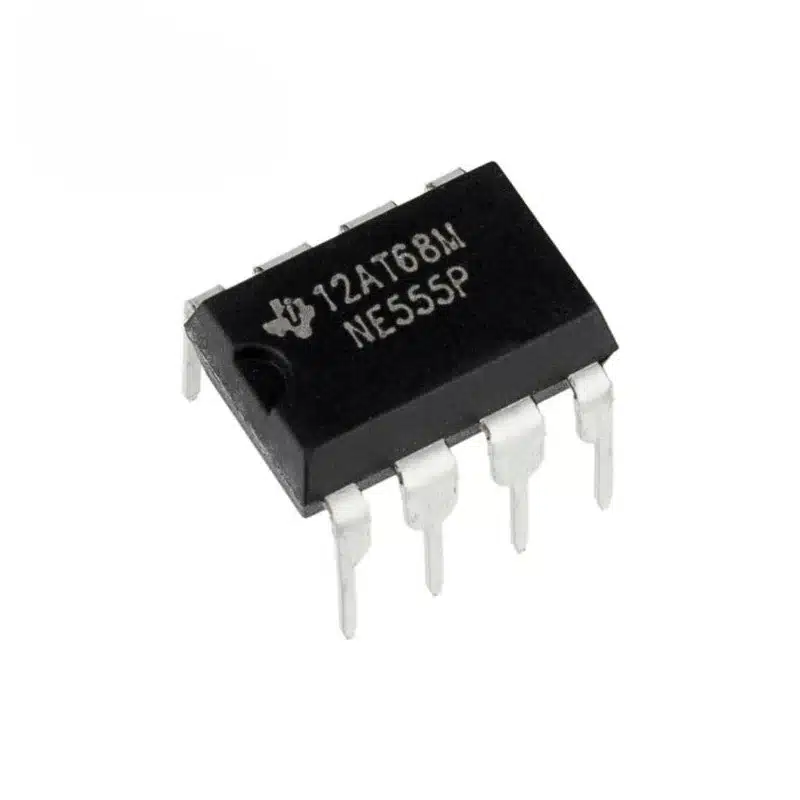

NE555 Timer IC (DIP)

Overview: NE555 Timer IC (DIP)

The NE555 Timer IC is a proven, widely used integrated circuit for precision timing, pulse generation, and oscillator applications. Packaged in a standard 8-pin Dual In-Line Package (DIP), it is perfect for breadboard prototyping, educational projects, and industrial designs requiring dependable time-based functions.

Key Features of the NE555 Timer IC

• 8-pin DIP package for easy prototyping and soldering
• Operates in monostable (one-shot), astable (oscillator), and bistable (flip-flop) modes
• Wide supply voltage range: 4.5 V to 15 V for compatibility with TTL and many CMOS circuits
• High output current drive for direct LED, relay, or speaker connections in many applications
• Stable and reliable timing with minimal external components (resistors and capacitors)
• Low cost and broad community support with abundant reference circuits

Typical Specifications

• Package: 8-pin DIP
• Supply Voltage: 4.5 V to 15 V
• Output Type: Push-pull with high output current capability
• Modes: Monostable, Astable, Bistable
• Operating Temperature Range: Commercial range typical (check datasheet for exact ratings)

Applications for NE555 Timer IC (DIP)

• Time delay generation and one-shot timers
• LED flashers, light chasers, and visual indicators
• Frequency oscillators and clock generation
• Tone generation for audio circuits and simple alarms
• Pulse-width modulation (PWM) for motor or LED dimming
• Sequential timers, basic signal generators, and educational lab projects

Common Circuits and Use Cases

• Astable multivibrator for square-wave generation and clock signals
• Monostable one-shot for debouncing switches or generating timed pulses
• PWM dimmer using variable control of duty cycle for LEDs or motors
• Simple audio oscillator for beepers and tone generators

Quick Design Tips

• Use quality capacitors for stable timing accuracy; the timing interval depends on R and C values.
• Add a small bypass capacitor (0.01 uF to 0.1 uF) close to the supply pins to reduce noise and improve stability.
• When driving larger loads, use a transistor or driver stage to avoid stressing the NE555 output.
• For low-voltage or low-power applications consider CMOS-compatible timer variants if needed.

Ordering and Packaging

This product is supplied in the standard 8-pin DIP packaging, ideal for breadboards and through-hole PCBs. Check quantity and packaging options when ordering for production or classroom kits.

Resources and References

• Datasheet recommended for complete electrical characteristics, timing equations, and recommended external component values.
• Many example circuits are available online for astable, monostable, and PWM implementations using the NE555 Timer IC.

Note: Images are for Illustration Purposes Only
