MTS-102 6mm Single Pole Toggle Switch

Availability:

Available on backorder


  • SPDT ON-ON toggle switch for simple two-position control
  • 6mm threaded mounting bushing for easy panel installation
  • Compact, durable design with metal lever for reliable operation
  • 3-pin terminals for straightforward wiring and integration
  • Ideal for DIY electronics, robotics, model railways, and control panels
  • Suitable for low-voltage and low-current applications

MTS-102 6mm Single Pole Toggle Switch Overview

The MTS-102 6mm Single Pole Toggle Switch is a compact, reliable SPDT (Single Pole Double Throw) ON-ON switch designed for a wide range of electronic and electrical applications. With a sturdy metal lever and a 6mm threaded bushing, it is easy to mount on panels, enclosures, and control boxes, making it a popular choice for hobbyists, makers, and technicians.

Key Features

  • Model: MTS-102
  • Switch type: SPDT (ON-ON) for selecting between two outputs
  • Mounting hole: 6mm threaded bushing for secure panel fitting
  • Durable metal lever with compact footprint for tight spaces
  • 3-pin terminals for easy wiring and quick connections
  • Suitable for low-voltage and low-current applications such as prototypes and hobby circuits

Applications

  • Robotics and DIY electronic projects
  • Control panels and switchboards
  • Model railways, hobby circuits, and scale models
  • Small appliances, gadgets, and prototype devices
  • Testing, prototyping, and educational electronics

Specifications

  • Switch Type: SPDT ON-ON
  • Mounting Hole: 6mm
  • Terminals: 3 pins
  • Operating Voltage/Current: Typically up to 250V AC / 3A (varies by model and region)
  • Material: Metal lever with durable plastic body

Installation and Wiring Tips

  • Ensure the panel hole is 6mm and free of burrs before mounting.
  • Tighten the bushing nut to secure the switch but avoid over-torquing to prevent damage.
  • Use appropriate insulation and wire gauge for the expected current load.
  • Confirm the correct terminal arrangement for common (COM), normally closed (NC), and normally open (NO) connections when wiring.
  • For AC mains or higher-current use, verify the switch rating for your specific model variant before installation.

Why Choose the MTS-102

The MTS-102 combines a compact footprint with a rugged metal lever and straightforward 3-pin wiring, offering dependable switching for low-voltage projects. Its 6mm mounting bushing makes it easy to integrate into custom panels and control boxes, while the SPDT ON-ON configuration gives flexible control over two circuits or device states.

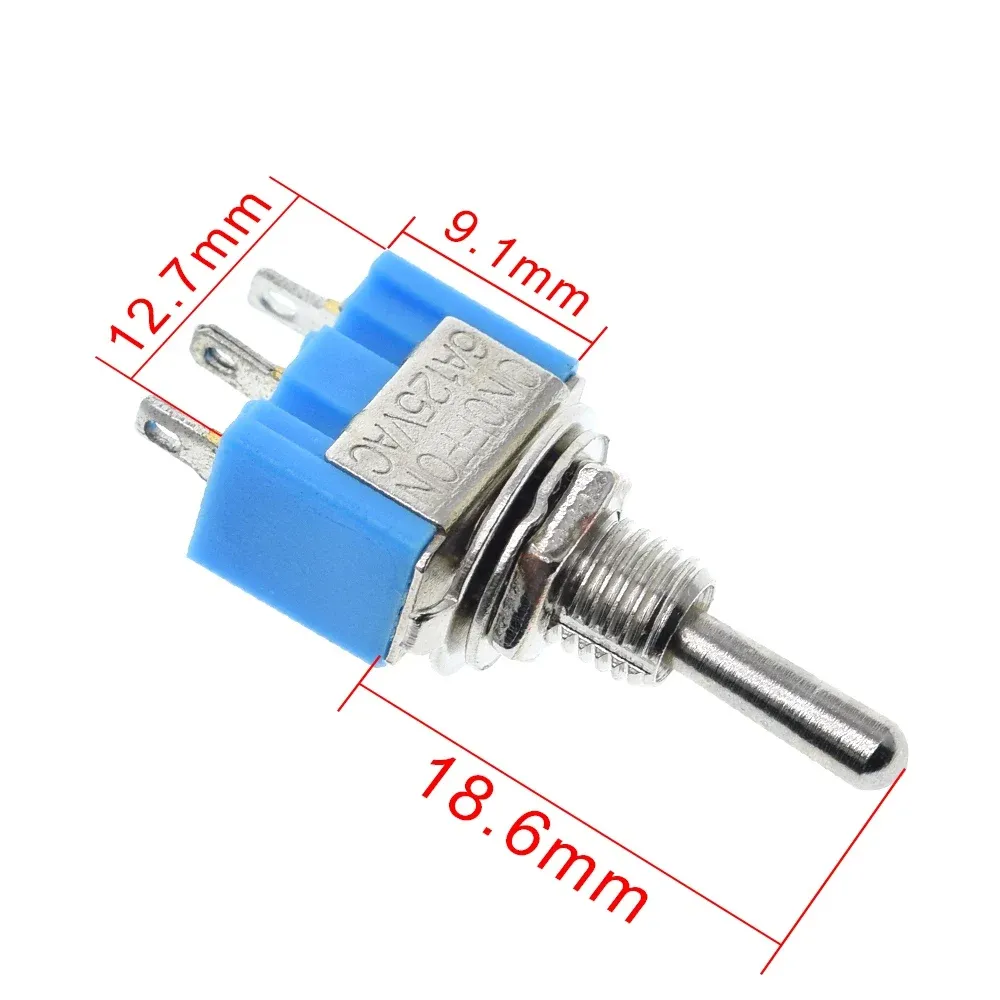

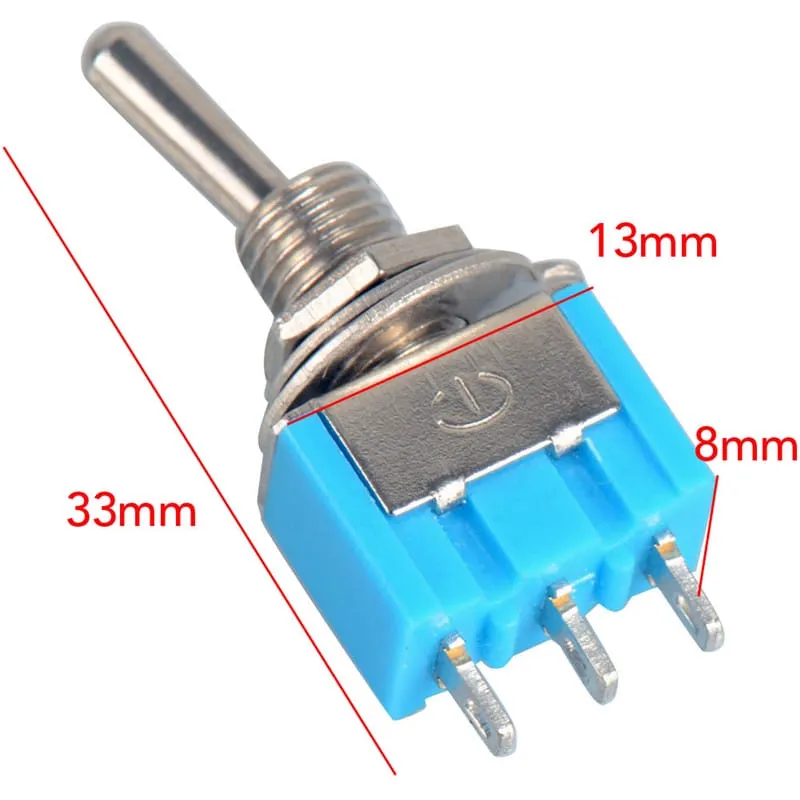

MTS-102 6mm Toggle Switch Images

Note: Images are for Illustration Purposes Only.

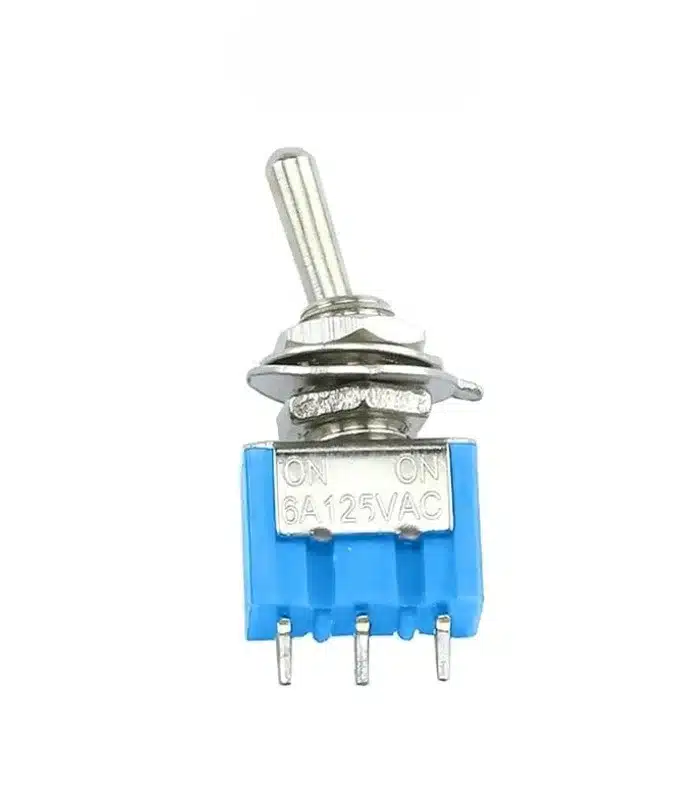

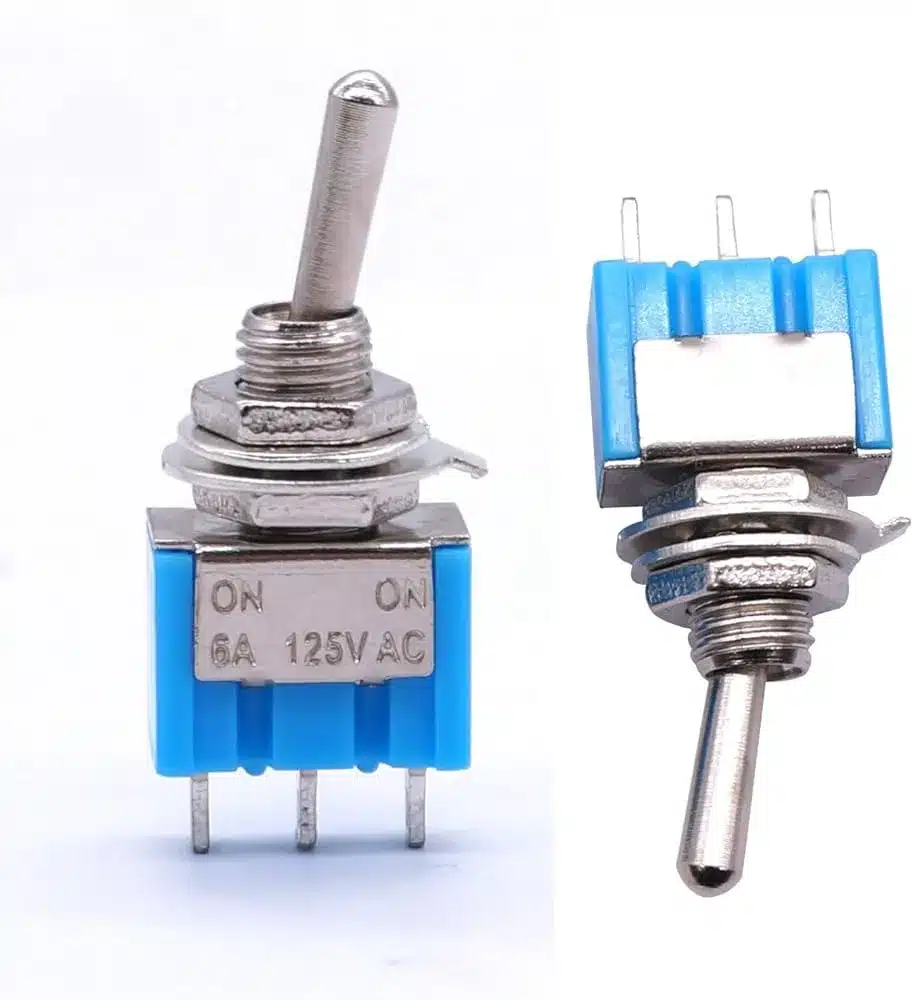

MTS-102 toggle switch front view

MTS-102 toggle switch wiring and terminals

Ordering and Compatibility Notes

  • Confirm the electrical rating required for your application before ordering.
  • Available in single units or bulk packs depending on supplier stock.
  • Contact support for compatibility questions with specific panels or enclosures.
