Mini DC-DC Step Up Boost Converter Module (Multi-Function)

Availability:

In stock


– Compact boost converter module for raising low DC voltages to stable higher outputs
– Wide input range (typically 2V-24V) suitable for batteries, USB, or solar
– Adjustable output voltage (can reach up to ~28V depending on input)
– High-efficiency switching design reduces energy loss
– Small, lightweight form factor ideal for portable and space-constrained projects
– Ideal for Arduino, ESP32, Raspberry Pi, robotics, solar chargers and DIY electronics

 110

In stock

Mini DC-DC Step Up Boost Converter Module (Multi-Function) Overview

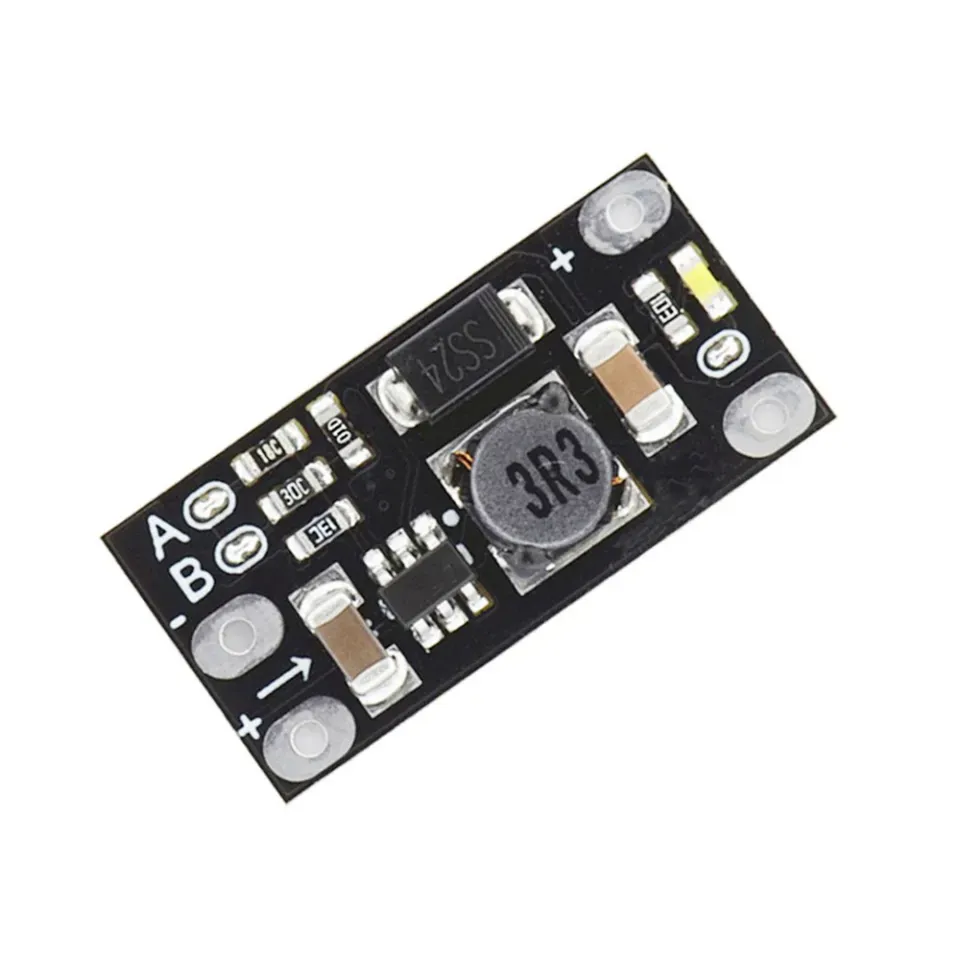

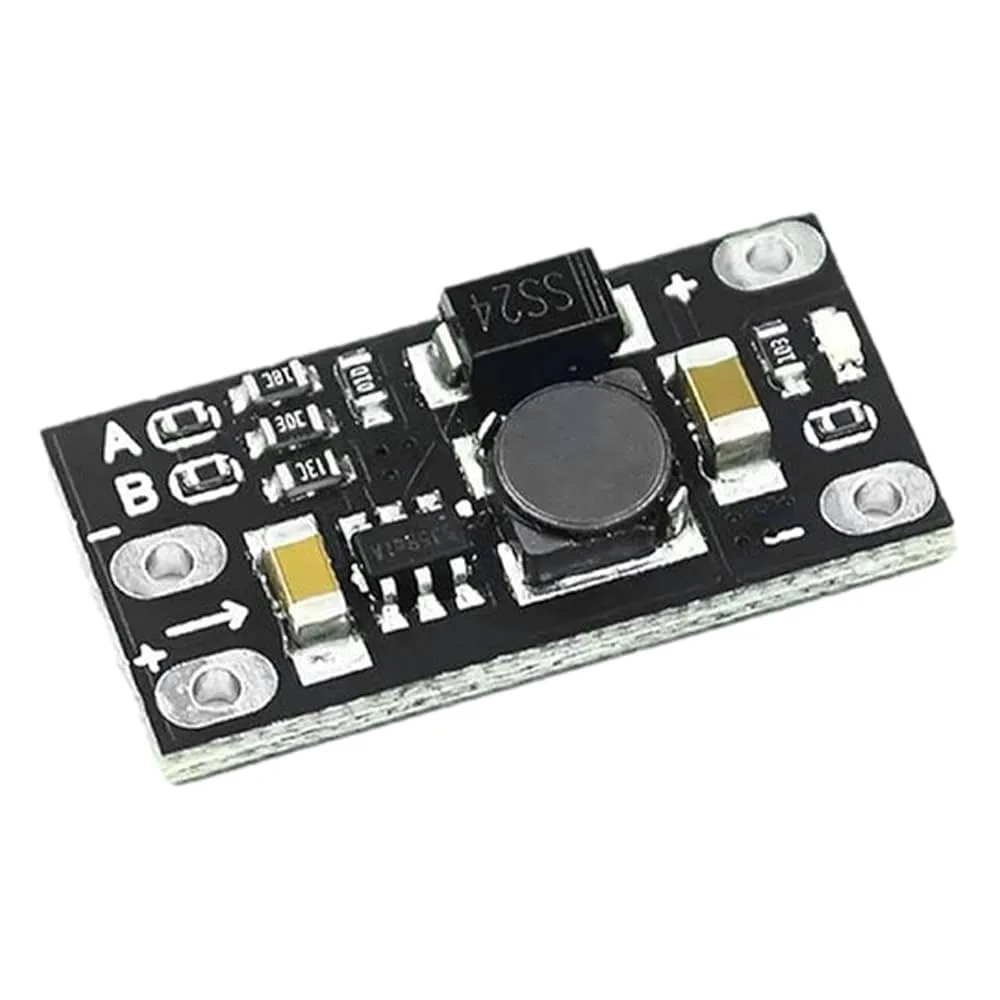

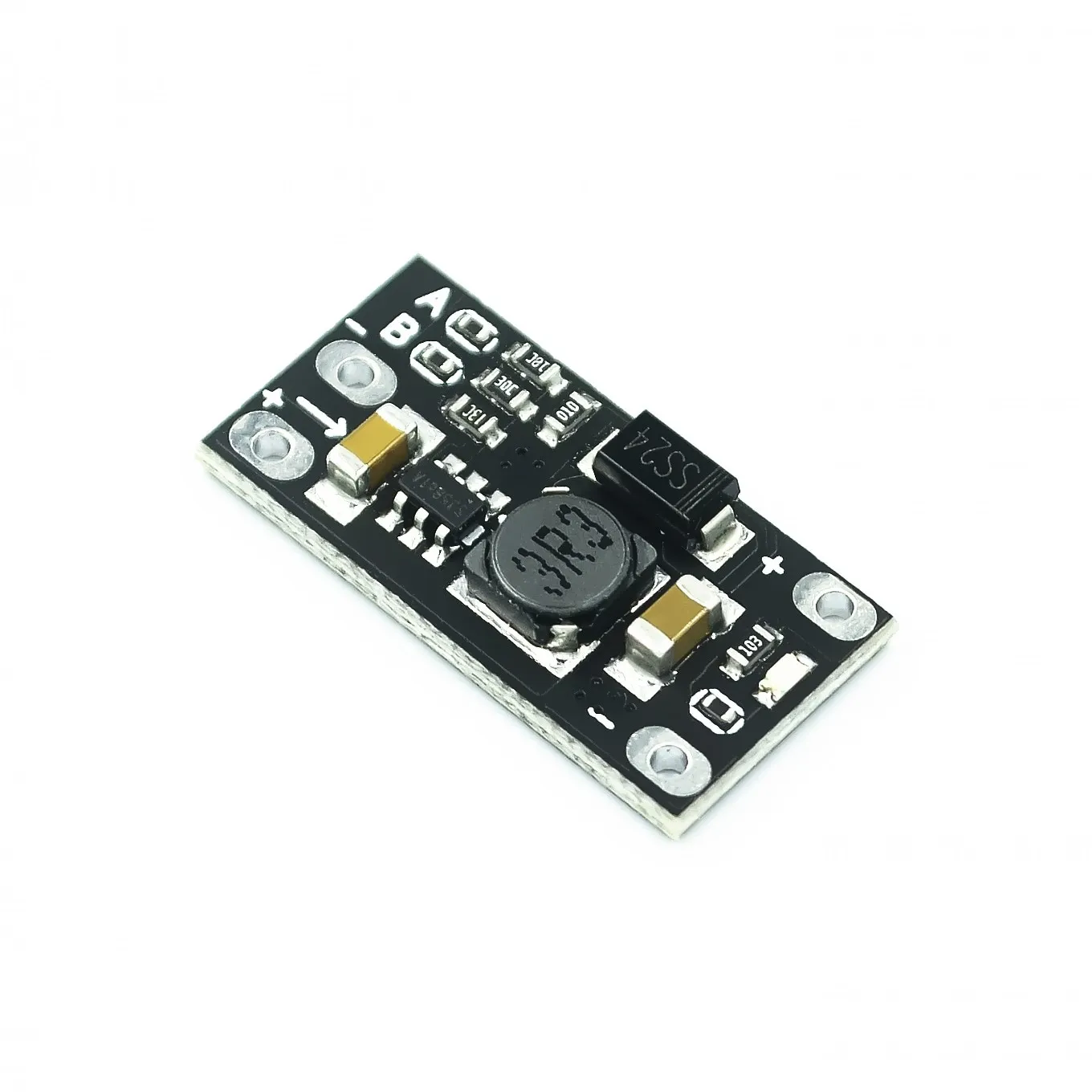

The Mini DC-DC Step Up Boost Converter Module (Multi-Function) is a compact, high-efficiency voltage booster designed to raise low DC voltages to a stable, adjustable higher output. Built for makers, hobbyists and embedded-system designers, this module works with batteries, USB power, and small solar panels to supply reliable voltage where it is needed most.

Key features

  • Type: Mini DC-DC Step Up Boost Converter Module (Multi-Function)
  • Input voltage range: typically 2V-24V DC (model-dependent)
  • Adjustable output: user-tunable higher DC output (example up to ~28V depending on input and load)
  • High-efficiency switching regulator for minimal power loss
  • Compact, low-profile PCB suitable for portable devices
  • Works with batteries, solar panels, USB power and other DC sources

Technical specifications (typical)

  • Input voltage: 2V-24V DC (consult specific model for exact range)
  • Output voltage: adjustable higher DC output (max depends on input and module design)
  • Efficiency: high-efficiency switching design (varies by load and model)
  • Size: miniature PCB form factor for space-constrained installations
  • Connections: input and output pads or screw terminals depending on variant

Applications and ideal use cases

This Mini DC-DC Step Up Boost Converter Module is a versatile power solution for many low-power and portable electronics projects:

  • Powering microcontrollers and development boards such as Arduino, ESP32 and Raspberry Pi from lower-voltage sources
  • Boosting battery voltage for wearable devices, handheld gadgets and portable instruments
  • DIY solar-powered systems and small solar charge designs
  • Robotics, sensors and remote embedded systems where a stable higher voltage is required
  • General-purpose voltage step-up for electronics prototyping and repairs

Benefits of using this Mini DC-DC Step Up Boost Converter Module

  • Efficient power conversion extends battery life on portable projects
  • Adjustable output gives flexibility to match the needs of different devices
  • Small footprint enables integration into compact housings and prototypes
  • Wide input compatibility allows use with many common DC sources
  • Simple integration for hobbyists and engineers with basic soldering or connector wiring

Installation, setup and tips

Basic hookup

  • Connect the input source (battery, USB, or solar) to the module input pins, observing polarity.
  • Use a multimeter to monitor output voltage while adjusting the onboard potentiometer to the desired output.
  • Confirm the module can supply the required current for your load; add a heatsink or improve airflow if running at higher currents for extended periods.

Design and safety tips

  • Do not exceed the modules rated input or output limits; check the specific model datasheet when available.
  • Provide proper decoupling capacitors near the load when powering sensitive electronics.
  • Observe polarity and fuse the input when connecting batteries to prevent damage from reverse polarity or short-circuits.

Frequently asked questions

Can this module take a single-cell Li-ion battery as input?

Yes. With a typical input range starting around 2V, a single-cell Li-ion (nominal 3.7V) or other battery chemistries are commonly used as input sources. Always confirm the specific modules minimum input voltage and expected current handling.

Will the module work with a solar panel?

Yes. The module can be used in small solar-powered systems. Because solar panels vary in voltage with light level, pairing the converter with appropriate energy storage (battery) or control circuitry is recommended for stable operation.

Note: Images are for Illustration Purposes Only.

Conclusion

The Mini DC-DC Step Up Boost Converter Module (Multi-Function) is an efficient, compact and adaptable solution for stepping up DC voltage in a wide range of electronics projects. With adjustable output, broad input compatibility and high-efficiency design, it is well-suited for hobbyist projects, portable devices and small embedded systems where stable higher voltage is required.
