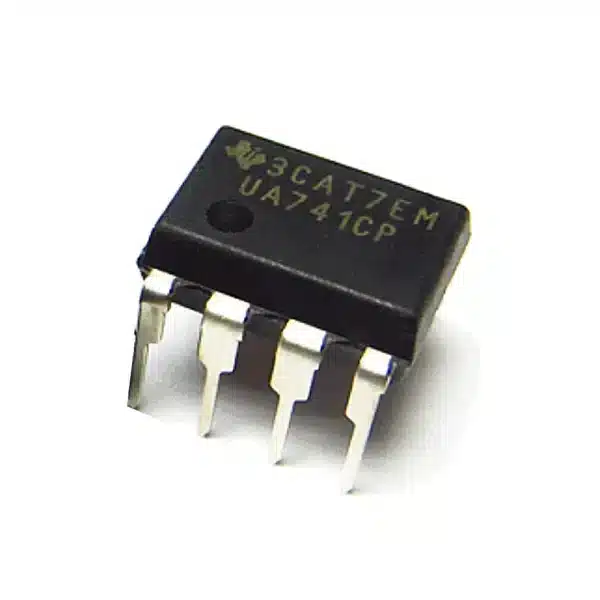

LM741 / UA741 Operational-Amplifier IC (DIP)

Availability:

Available on backorder


  • General-purpose LM741 / UA741 operational amplifier in a standard DIP package
  • Designed for signal amplification, conditioning, and analog processing
  • Perfect for active filters, oscillators, and comparator circuits
  • Breadboard-friendly DIP form factor for prototyping and education
  • Wide supply range: ±5V to ±18V; supports single and dual supply operation
  • Internally frequency-compensated and includes short-circuit protection

Overview

The LM741 / UA741 operational-amplifier IC in DIP package is a widely used, general-purpose op-amp for analog electronics. Trusted for its reliability and straightforward application, the LM741 is a staple component for students, hobbyists, and professional engineers working on signal amplification, filtering, and analog computation.

Key Features

  • General-purpose operational amplifier suitable for many analog designs
  • Wide supply voltage range: ±5V to ±18V
  • High input impedance and low output impedance for effective buffering
  • Internally frequency-compensated for stable operation across common configurations
  • Short-circuit protection for improved reliability in practical circuits
  • Compatible with both single and dual supply operation
  • Standard DIP package ideal for breadboards and through-hole PCBs

Why Choose the LM741 / UA741?

The LM741 is one of the most popular op-amps because it balances ease of use with versatility. It is especially useful when you need a dependable, widely-documented amplifier for prototyping or educational projects. Its standard DIP package makes it easy to insert into breadboards and through-hole PCBs without special tooling.

Common Applications

  • Signal amplification and conditioning for sensors and audio
  • Active filters (low-pass, high-pass, band-pass) and oscillators
  • Analog computing tasks: summing, subtracting, integrating, differentiating
  • Voltage comparators and basic regulator circuits
  • Sensor interfacing and control system front-ends
  • Educational labs, prototypes, and DIY electronics projects

Typical Usage and Tips

  • Powering: Use dual supplies (e.g., ±12V) for symmetric swing, or a single supply with proper biasing for single-supply designs.
  • Stability: The device is internally frequency-compensated, but proper bypass capacitors on supply rails are recommended to prevent oscillation in noisy environments.
  • Protection: Although the LM741 includes short-circuit protection, avoid continuous overloads; add external resistors or current-limiting where necessary.
  • Breadboarding: The DIP package is plug-and-play for breadboards—verify pinout before wiring (pin 2 = inverting input, pin 3 = non-inverting input, pin 6 = output; V+ and V- on pins 7 and 4 respectively for a standard 8-pin DIP).

Package and Pinout (8-pin DIP)

  • Pin 1: Offset Null
  • Pin 2: Inverting Input (−)
  • Pin 3: Non-inverting Input (+)
  • Pin 4: V− (Negative Supply)
  • Pin 5: Offset Null
  • Pin 6: Output
  • Pin 7: V+ (Positive Supply)
  • Pin 8: NC or No Connection (depending on manufacturer)

Compatibility and Alternatives

The LM741 is a classic choice but there are modern alternatives offering improved input offset, lower noise, and rail-to-rail operation (for example, TL072, OP07, or various rail-to-rail op-amps). Choose LM741 when you need a proven general-purpose amplifier with extensive documentation and community support.

Ordering and Notes

  • Package: Standard 8-pin DIP (through-hole)
  • Ideal for educational kits, prototyping, and general analog circuit development
  • Note: Images are for illustration purposes only
