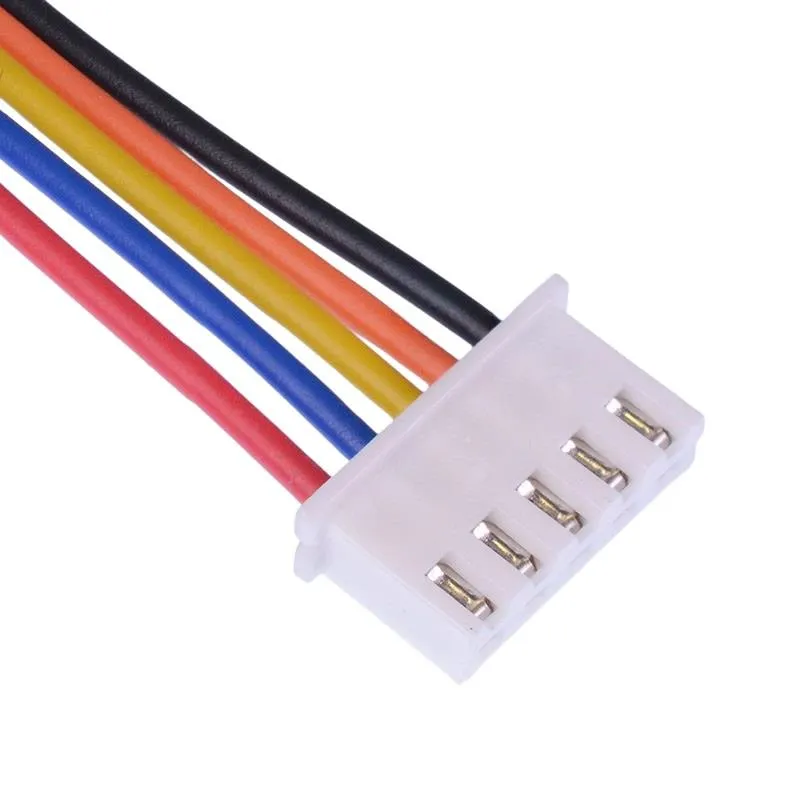

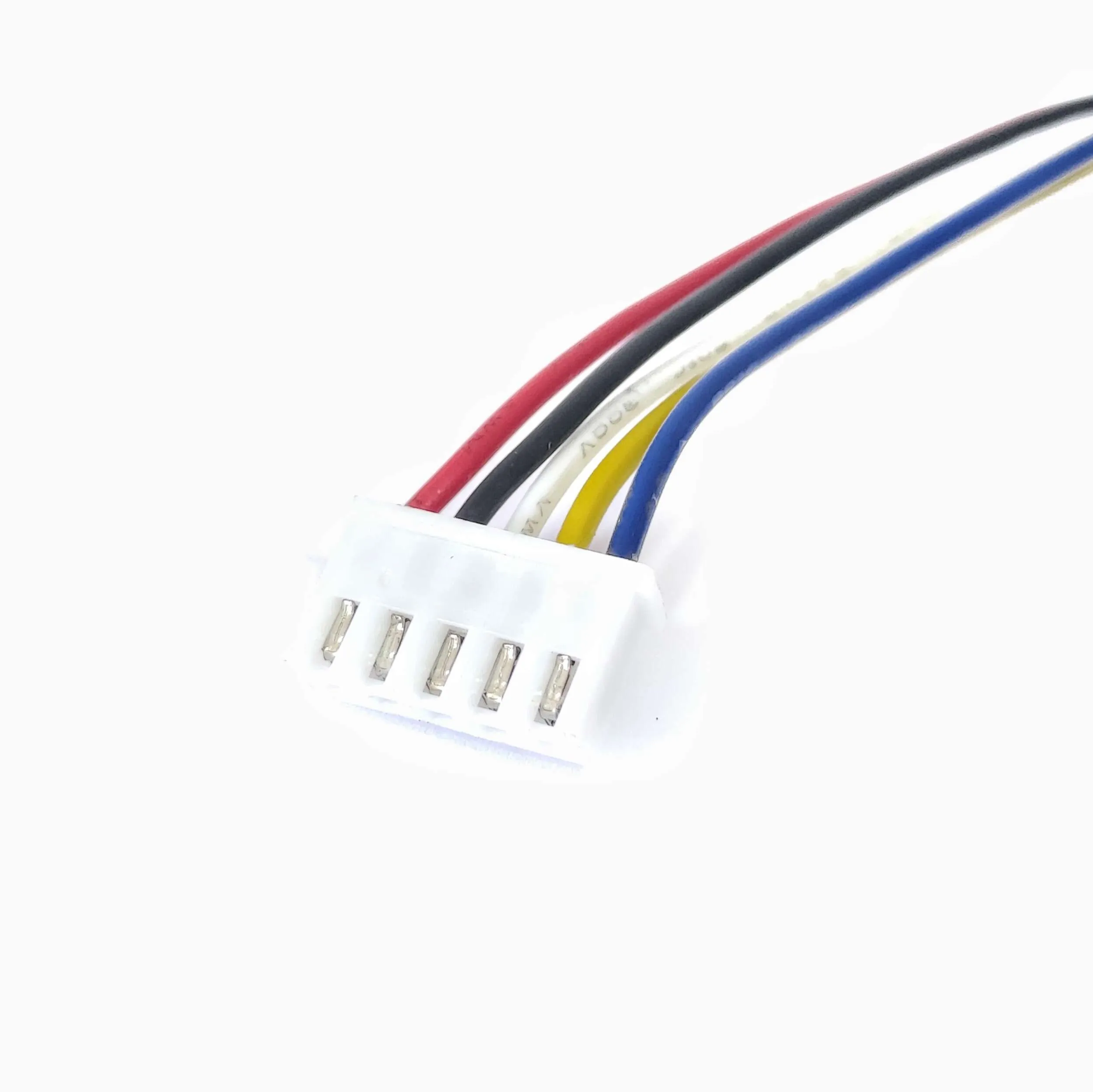

JST Female Connector Cable 150mm (5-Pin)

Availability:

In stock


– JST 5-pin female connector with 150mm pre-wired leads
– Standard 2.54mm pitch for compatibility with common JST male headers
– Pre-soldered wires for plug-and-play installation and quick prototyping
– Secure mating design to prevent loose connections in robotics and drones
– Compact, durable construction ideal for Arduino, sensors, and modules
– Suitable for wiring harnesses, custom assemblies, and automation projects

 50

In stock

Overview
The JST Female Connector Cable 150mm (5-Pin) is a pre-wired JST 5-pin female connector cable designed for reliable signal and power connections in electronics projects. With 150mm of pre-soldered wire and a standard 2.54mm pitch, this cable is ideal for Arduino, sensor modules, drones, robotics, and custom wiring harnesses where compact, secure connections are required.

Key Features
– JST 5-pin female housing with pre-soldered leads (150mm length)
– Standard 2.54mm pitch for compatibility with common male JST headers and breadboards
– Pre-soldered wires for quick plug-and-play installation
– Secure latch and precise fit to prevent intermittent connections
– Durable contacts and insulation for long-term reliability
– Compact form factor suitable for space-constrained assemblies

Specifications
– Connector type: JST female, 5-pin
– Wire length: 150mm (pre-soldered)
– Pitch: 2.54mm (0.1 inch)
– Typical applications: signal and low-voltage power connections
– Construction: pre-crimped/assembled wires with insulated jacket

Applications and Use Cases
– Arduino and microcontroller wiring
– Sensor and module connections (temperature, distance, motion sensors)
– Robotics and automation wiring where multiple signals are required
– Drones and RC models for receiver or peripheral connections
– Custom wiring harnesses and small electronic assemblies

Compatibility
This JST 5-pin female connector cable is compatible with standard male JST headers that use 2.54mm pitch. It works with most Arduino shields, sensor breakout boards, breadboards (for prototyping), and many hobby electronics modules.

Installation and Best Practices
1. Verify pinout and polarity of your devices before connecting to avoid damage.
2. Route the 150mm wires to minimize stress on solder joints and prevent tugging.
3. Use heat shrink or cable ties for strain relief where connectors see movement.
4. For permanent installations, confirm solder joints and secure wires in a harness or enclosure.

Why Choose the JST Female Connector Cable 150mm (5-Pin)
– Time savings: Pre-soldered leads eliminate repetitive crimping or soldering during prototyping and assembly.
– Reliability: Secure mating and quality contacts reduce the risk of loose connections in mobile or vibration-prone projects.
– Versatility: Suitable for a wide range of hobbyist and professional applications, from simple sensor hookups to complex wiring harnesses.

Safety and Notes
– Intended for low-voltage, low-current signal and power applications. Verify current requirements for your specific use case.
– Images are for illustration purposes only.

If you need multiple cables or custom wire lengths, consider ordering quantities to match your project requirements or contact support for bulk options.
