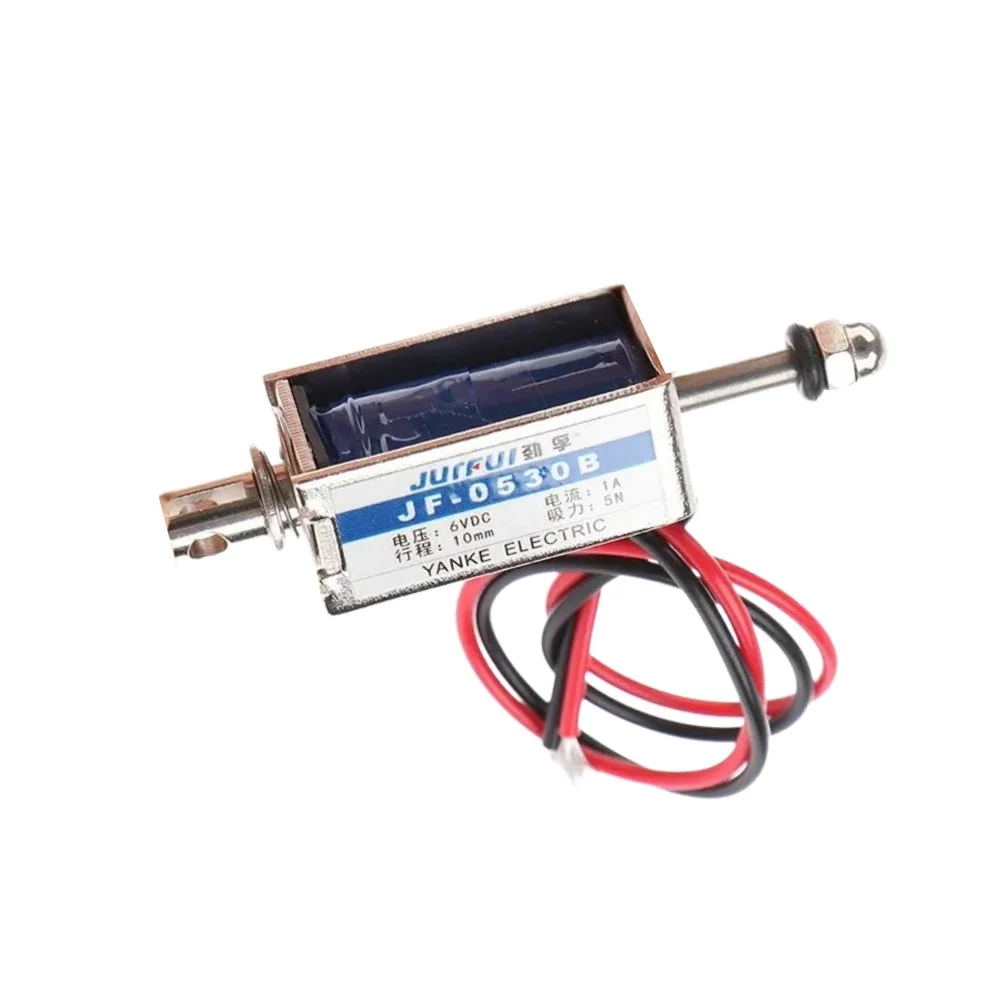

JF-0530B DC 6V 1A 10mm 5N Electromagnet Solenoid Push-Pull Lock

JF-0530B DC 6V Push-Pull Solenoid Overview

The JF-0530B DC 6V Push-Pull Solenoid is a compact and efficient electromagnetic actuator engineered for precise linear motion applications including locking, triggering, and automation. Operating at 6V DC with a rated current of 1A, this solenoid delivers a 10mm stroke length with a force output of up to 5N, making it an ideal choice for low-voltage embedded systems, Arduino projects, and battery-powered devices. Its spring-return mechanism ensures the plunger automatically resets when power is removed, enabling reliable and repeatable push-pull operation across thousands of duty cycles.

Key Features

• Push-Pull Mechanism: Supports both pushing and pulling linear actions for versatile actuation
• 6V DC Operation: Optimized for low-voltage and battery-powered embedded systems
• Strong Force Output: Delivers up to 5N (~0.5 kg force) for dependable mechanical actuation
• 10mm Stroke Length: Provides accurate and consistent linear displacement
• Spring Return Design: Automatically returns the plunger to its original position when powered OFF
• Compact Metal Body: Small form factor (~30 x 13 x 15 mm) fits easily into tight enclosures
• Durable Metal Construction: Built for long service life in demanding environments
• Simple Driver Interface: Compatible with relays, MOSFETs, and transistor driver circuits

Technical Specifications

• Model: JF-0530B
• Operating Voltage: 6V DC
• Rated Current: 1A
• Force Output: 5N (approximately 0.5 kg)
• Stroke Length: 10mm
• Type: Push-Pull Solenoid
• Body Dimensions: ~30 x 13 x 15 mm
• Plunger Diameter: ~6mm
• Mounting: Dual mounting holes (M3 compatible)
• Cable Length: ~18 to 20 cm
• Operation Mode: Intermittent (short duty cycles recommended)

How the JF-0530B Solenoid Works

The JF-0530B operates on the principle of electromagnetic induction to produce reliable linear motion:

• When 6V DC is applied, current flows through the internal copper coil
• The energized coil generates a concentrated magnetic field
• The magnetic field pulls the internal iron plunger into the coil core
• This inward motion produces a controlled linear push or pull action
• When power is removed, the built-in spring returns the plunger to its original resting position

Applications

The JF-0530B 6V push-pull solenoid is widely used across a broad range of industries and DIY projects:

• Electronic door locks and cabinet locking mechanisms
• Smart home automation systems and IoT devices
• Vending machines and self-service kiosks
• DIY Arduino projects and robotics builds
• Industrial control panels and machinery
• Trigger mechanisms, dispensers, and custom actuators

Advantages of the JF-0530B Solenoid

• Low Voltage and Safe Operation: 6V rating makes it safe for microcontroller-based projects
• Compact and Lightweight: Minimal footprint simplifies integration into space-constrained designs
• Easy to Control: Works with straightforward MOSFET or transistor driver circuits
• Fast and Reliable Response: Delivers consistent actuation speed across repeated cycles
• Cost-Effective Automation: Provides an affordable electromagnetic actuation solution for prototyping and production

Usage Tips and Safety Guidelines

• Do not drive the solenoid directly from Arduino output pins; always use a MOSFET or transistor driver circuit
• Always install a flyback diode in parallel with the solenoid to protect your driver circuit from back-EMF voltage spikes
• Avoid continuous or prolonged power application to prevent coil overheating; use intermittent duty cycles
• Power the solenoid from a stable 6V regulated supply or a dedicated battery pack separate from the microcontroller supply
• Ensure secure mechanical mounting to minimize vibration and maintain alignment during actuation

Note: Images are for illustration purposes only.
