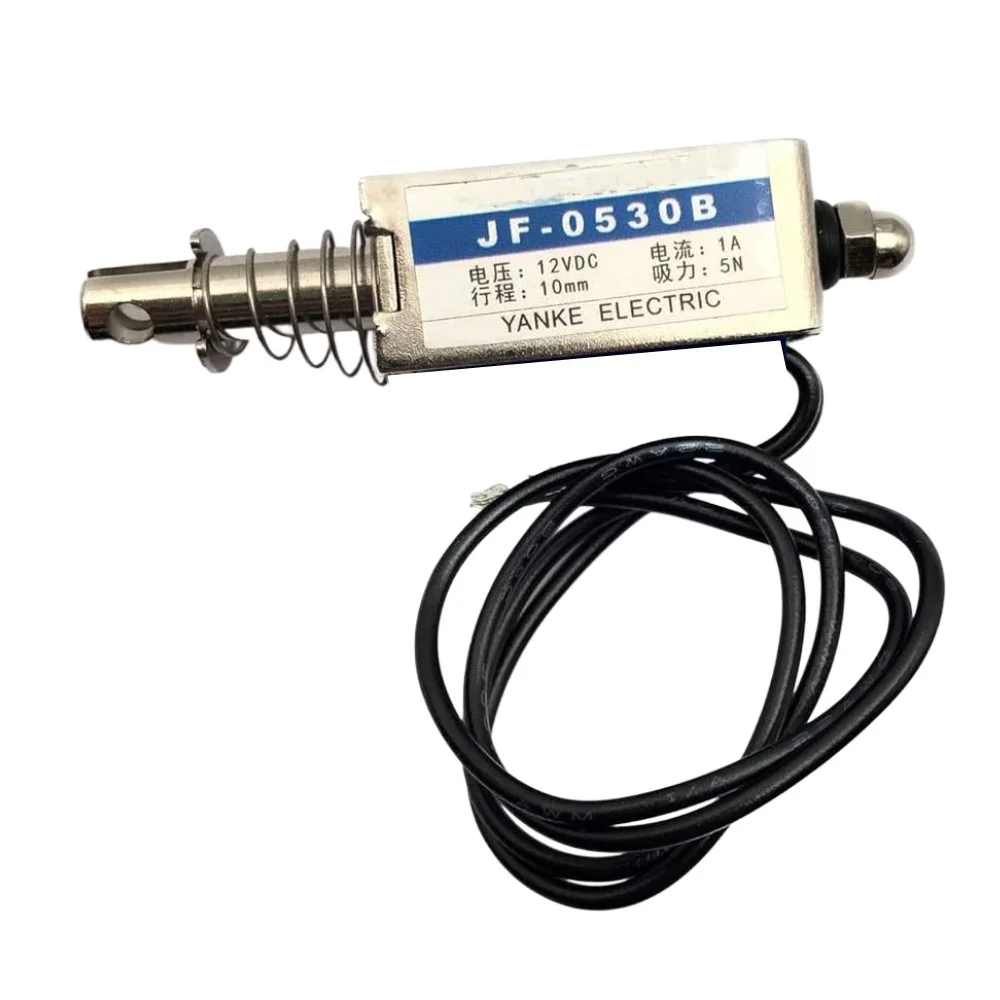

JF-0530B DC 12V 1A 10mm 5N Electromagnet Solenoid Push-Pull Lock

JF-0530B DC 12V Push-Pull Solenoid Electromagnet Overview

The JF-0530B DC 12V Push-Pull Solenoid is a compact, high-performance electromagnetic actuator engineered to deliver reliable linear motion using electrical energy. Rated at 12V DC, 1A, and capable of producing up to 5N (≈0.5 kg) of force over a 10mm stroke, this solenoid is purpose-built for applications that demand precise, repeatable push-pull actuation in a small form factor.

Whether you are building an electronic locking mechanism, integrating an actuator into an automation system, or prototyping a DIY robotics project, the JF-0530B offers a simple structure, fast response, and dependable everyday performance.

Key Features

• Push-Pull Operation: Supports both pushing and pulling linear motion for versatile actuation
• 5N Force Output: Strong magnetic force of 5N (≈0.5 kg) suitable for locking and triggering tasks
• 10mm Stroke Length: Delivers precise and consistent linear movement range
• 12V DC Rated: Works seamlessly with batteries, regulated power supplies, and control boards
• Spring Return Mechanism: Plunger automatically resets to its original position when power is removed
• Compact Open-Frame Design: Small footprint (~30 × 13 × 15 mm) fits in tight and space-constrained enclosures
• Durable Metal Construction: Metal body with copper coil ensures long service life and reliable operation
• Low Power Consumption: Efficient coil design minimizes heat buildup during normal duty cycles
• Dual Mounting Holes: Simplifies secure installation in any orientation

Technical Specifications

• Model: JF-0530B
• Operating Voltage: 12V DC
• Rated Current: 1A
• Force: 5N (≈0.5 kg force)
• Stroke Length: 10mm
• Type: Push-Pull Solenoid
• Body Size: ~30 × 13 × 15 mm
• Plunger Diameter: ~6mm
• Mounting: Dual mounting holes for easy fixing
• Material: Metal body with copper coil

How the JF-0530B Solenoid Works

The JF-0530B operates on the principle of electromagnetic induction. Here is a step-by-step breakdown of its working cycle:

• When 12V DC is applied, current flows through the internal copper coil
• The energized coil generates a concentrated magnetic field
• The magnetic field pulls the internal iron plunger into the coil core, producing linear motion
• This motion can be configured to deliver a push or pull action depending on the mechanical setup
• When power is removed, the integrated spring returns the plunger to its default resting position automatically

This straightforward electromechanical cycle makes the solenoid ideal for any application requiring intermittent, on-off actuation.

Applications

The JF-0530B 12V DC solenoid is widely used across a broad range of industries and DIY projects:

• Electronic Door Locks and Cabinet Locks: Provides secure push-pull locking action for smart access control
• Vending Machines and ATM Mechanisms: Enables precise dispensing and release actuation
• Smart Home Automation Systems: Integrates easily with home automation controllers and relay modules
• DIY Robotics and Arduino Projects: Compatible with microcontrollers via transistor or relay drivers
• Industrial Automation and Control Systems: Used as a fast-response actuator in assembly and control lines
• Sorting Machines and Linear Actuators: Delivers consistent motion for mechanical sorting and diverting tasks

Advantages of the JF-0530B Push-Pull Solenoid

• Simple and reliable electromechanical design with minimal moving parts
• Compact size with a high force-to-size ratio for space-constrained builds
• Fast electrical response time for time-sensitive actuation tasks
• Easy to interface with Arduino, Raspberry Pi, and other microcontrollers
• Cost-effective solution for both prototyping and production automation

Usage Tips and Installation Guidelines

• Avoid Continuous Operation: Do not energize the solenoid for extended periods without duty cycle management, as this may cause overheating
• Use a Driver Circuit: Always use a transistor (e.g., TIP120) or relay module when driving the solenoid from an Arduino or microcontroller output pin
• Add a Flyback Diode: Connect a flyback (freewheeling) diode across the solenoid terminals to suppress voltage spikes and protect your control circuit
• Secure Mounting: Use the dual mounting holes to firmly fix the solenoid and ensure stable, repeatable plunger movement
• Regulated Power Supply: Use a stable, regulated 12V DC power supply to maintain consistent force output and prevent erratic behavior

Note: Images are for illustration purposes only.
